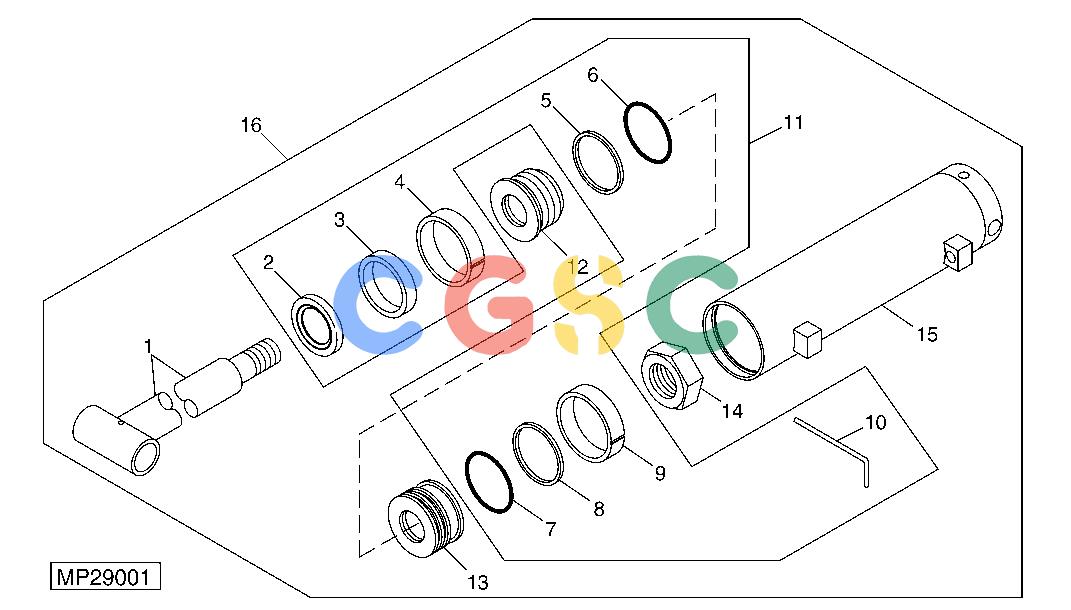

约翰迪尔零件查询110 - BACKHOE, LOADER HYDRAULIC CYLINDER (72" 4 IN 1 BUCKET)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
KV15532
|
[1] |
Hydraulic Cylinder Rod
|
|
| 2. |
........
|
[1] |
Seal
|
|
| 3. |
........
|
[1] |
Seal
|
|
| 4. |
........
|
[1] |
Wear Ring
|
|
| 5. |
........
|
[1] |
Washer
|
|
| 6. |
........
|
[1] |
O-Ring
|
|
| 7. |
........
|
[1] |
O-Ring
|
|
| 8. |
........
|
[1] |
Seal
|
|
| 9. |
........
|
[1] |
Wear Ring
|
|
| 10. |
........
|
[1] |
Retainer
|
|
| 11. |
KV15538
|
[1] |
Seal Kit
|
|
| 12. |
KV15533
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
KV15534
|
[1] |
Piston
|
|
| 14. |
KV15535
|
[1] |
Lock Nut
|
|
| 15. |
KV15536
|
[1] |
Barrel
|
|
| 16. |
KV15511
|
[1] |
Hydraulic Cylinder
|
|
