约翰迪尔零件查询110 - BACKHOE, LOADER Front Frame ( - 310999)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 521 次

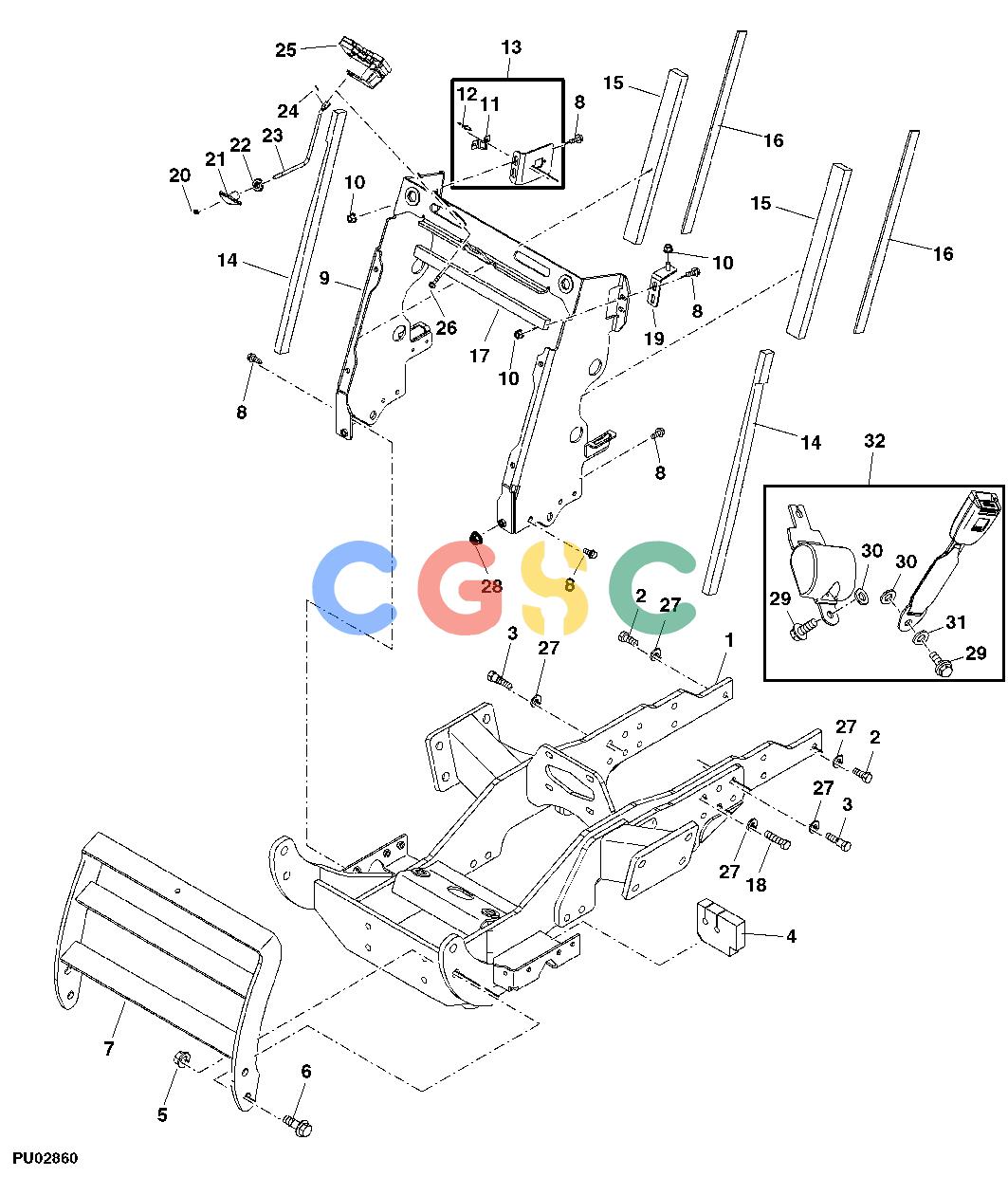

Pos.	Part No	Qty	Parts name	Comments
1.	LVA10258	[1]	Frame
2.	LVU13481	[6]	Bolt
3.	LVU13482	[11]	Bolt
4.	LVU12937	[1]	Pad
5.	14M7291	[4]	Flange Nut	M16
6.	19M7844	[4]	Screw	M16 X 45 (HS, HEAD MARKED 10.9)
7.	LVA10965	[1]	Guard
8.	19M7866	[12]	Screw	M8 X 20 (HS, HEAD MARKED 10.9)
9.	LVA12132	[1]	Frame	RADIATOR
10.	14M7396	[5]	Lock Nut	M8
11.	L79226	[1]	Clip
12.	M63199	[1]	Rivet
13.	LVA11442	[1]	Latch
14.	LVU13499	[2]	Pad
15.	LVU12923	[2]	Pad
16.	LVU12258	[2]	Isolator
17.	LVU13483	[1]	Pad
18.	19M7361	[1]	Cap Screw	M12 X 50 (HS, HEAD MARKED 10.9)
19.	LVA12235	[1]	Bracket	NLA, (SUB LVA14491)
20.	14M7194	[1]	Nut	M6
21.	LVU22317	[1]	Knob	(SUB FOR LVU13448)
22.	LVU13447	[1]	Grommet
23.	LVU13451	[1]	Rod
24.	11M7005	[2]	Cotter Pin	1.600 X 10 MM
25.	LVA12129	[1]	Latch	HOOD
26.	19M7863	[2]	Screw	M6 X 25 (HS, HEAD MARKED 10.9)
27.	24M7429	[14]	Washer	13 X 24 X 2.500 MM HARDENED
28.	14M7298	[2]	Flange Nut	M8
29.	19M7784	[2]	Screw	M10 X 20 (USE WITH LVA14491)
29.	19M7789	[2]	Screw	M12 X 30 (USE WITH LVA12335)
30.	24M7038	[2]	Washer	13.500 X 24 X 2.500 MM
31.	24M7240	[1]	Washer	13 X 25 X 3 MM
32.	LVA12335	[1]	Seat Belt	KIT, (SUB FOR LVA14491)
