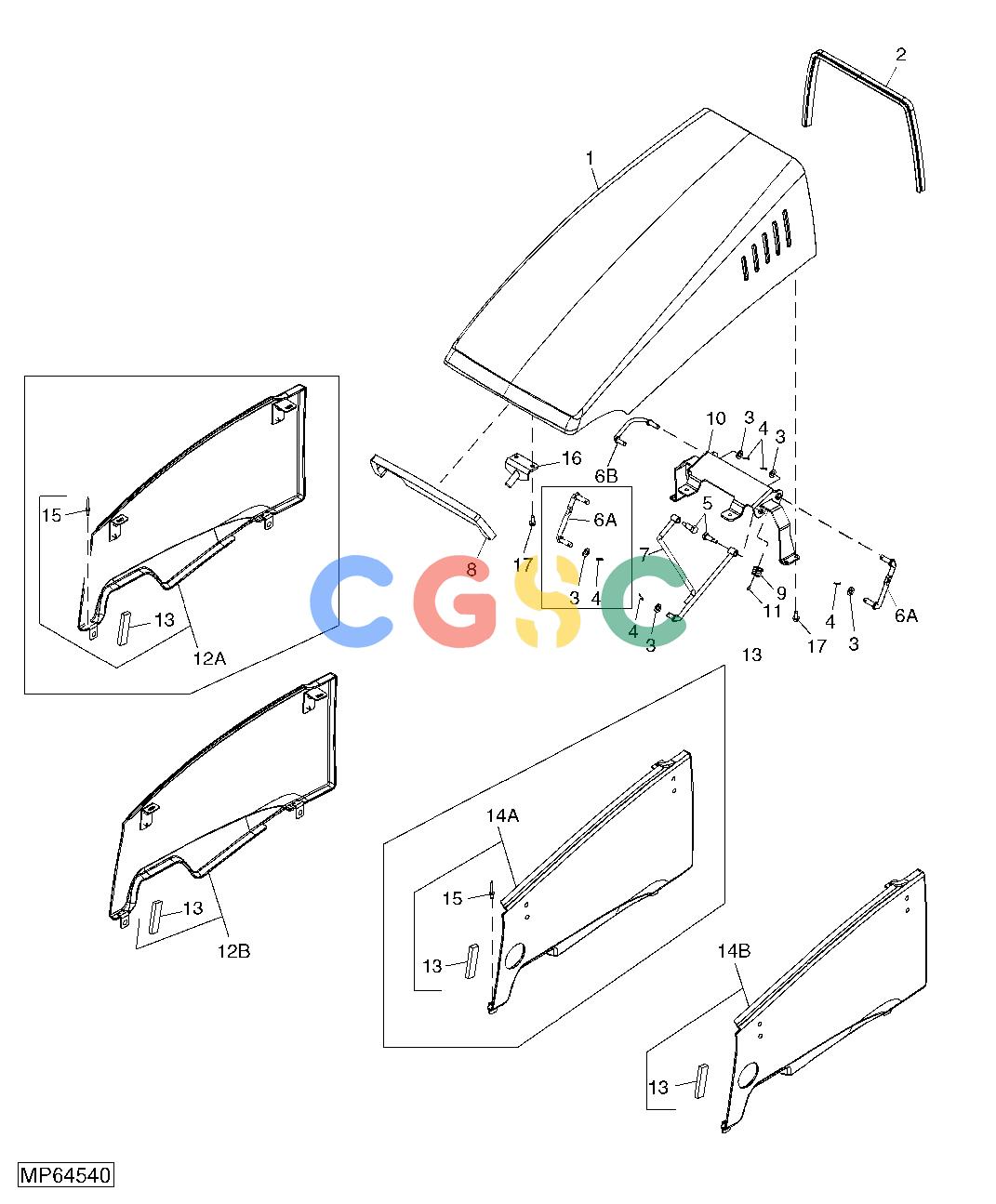

约翰迪尔零件查询110 - BACKHOE, LOADER Hood and Panels (410088 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
LVA13768
|
[1] |
Hood
|
|
| 1. |
LVU16965
|
[8] |
Insert
|
|
| 2. |
LVU16989
|
[1] |
Isolator
|
|
| 3. |
24M7038
|
[5] |
Washer
|
|
| 4. |
11M7059
|
[5] |
Cotter Pin
|
|
| 5. |
M78599
|
[2] |
Bolt
|
|
| 6A. |
LVU11765
|
[2] |
Rod
|
|
| 6B. |
LVU19433
|
[1] |
Support
|
|
| 7. |
LVA13912
|
[1] |
Rod
|
|
| 8. |
LVU11357
|
[1] |
Pad
|
|
| 9. |
LVU12848
|
[2] |
Clip
|
|
| 10. |
LVA13910
|
[1] |
Bracket
|
|
| 11. |
37M7060
|
[4] |
Screw
|
|
| 12A. |
LVA14929
|
[1] |
Panel
|
|
| 12B. |
LVA15679
|
[1] |
Panel
|
|
| 13. |
LVU12847
|
[2] |
Pad
|
|
| 14A. |
LVA13501
|
[1] |
Panel
|
|
| 14A. |
LVA14928
|
[1] |
Panel
|
|
| 14B. |
LVA15678
|
[1] |
Panel
|
|
| 15. |
R121315
|
[8] |
Rivet
|
|
| 16. |
LVA16276
|
[1] |
Latch
|
|
| 17. |
19M7866
|
[8] |
Screw
|
|
