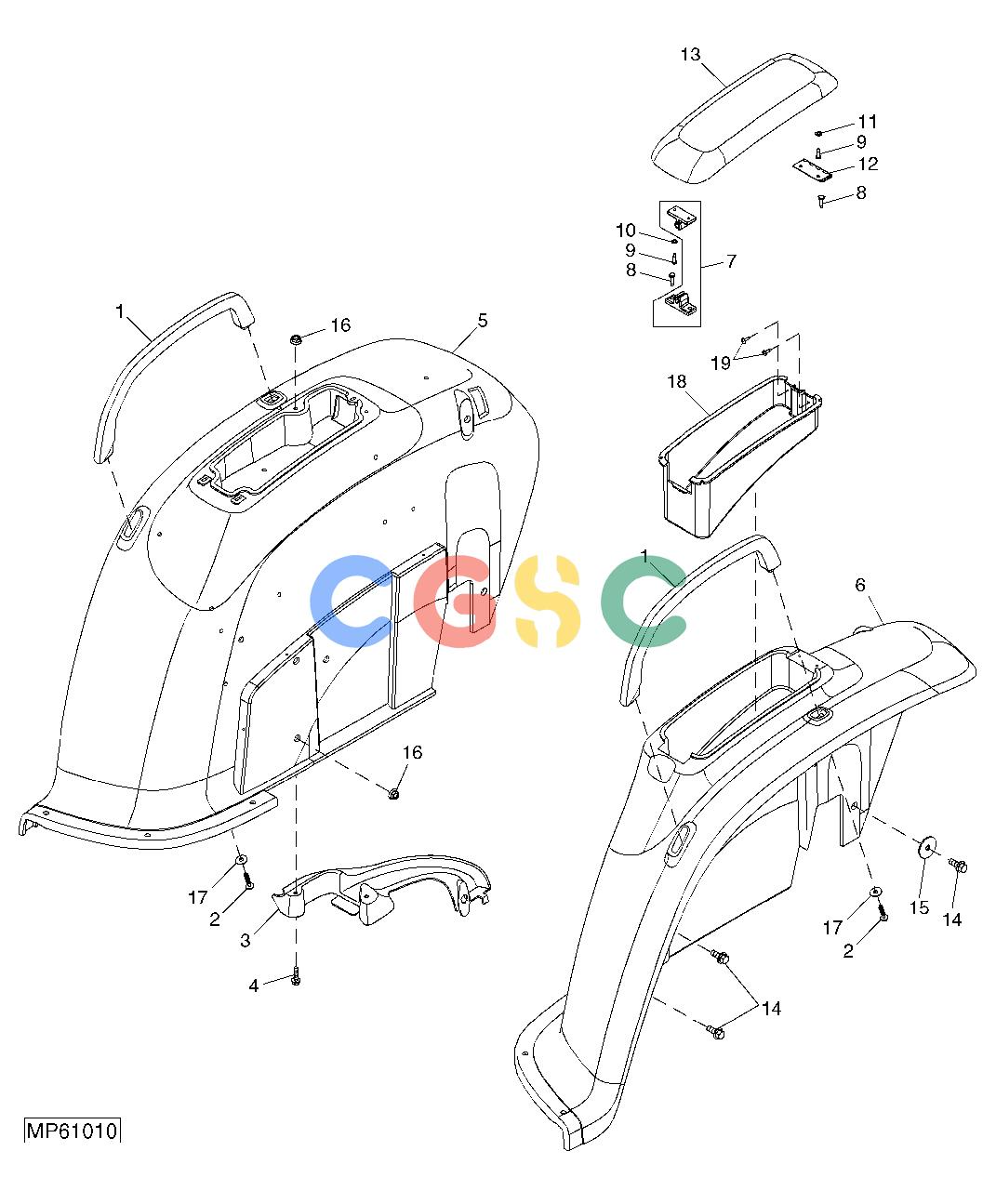

约翰迪尔零件查询110 - BACKHOE, LOADER Fenders (311280 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
M130667
|
[2] |
Handle
|
|
| 2. |
M146384
|
[4] |
Screw
|
|
| 3. |
LVU12170
|
[1] |
Cover
|
|
| 4. |
19M7862
|
[2] |
Screw
|
|
| 5. |
LVU15941
|
[1] |
Fender
|
|
| 6. |
LVU15940
|
[1] |
Fender
|
|
| 7. |
AM126031
|
[1] |
Latch
|
|
| 8. |
LVU16695
|
[4] |
Screw
|
|
| 9. |
M93511
|
[4] |
Screw
|
|
| 10. |
24M7117
|
[2] |
Washer
|
|
| 11. |
12M7084
|
[2] |
Lock Washer
|
|
| 12. |
LVU11682
|
[1] |
Hinge
|
|
| 13. |
LVU17484
|
[1] |
Cover
|
|
| 14. |
19M7785
|
[6] |
Screw
|
|
| 15. |
24H1314
|
[2] |
Washer
|
|
| 16. |
14M7397
|
[4] |
Lock Nut
|
|
| 17. |
24M7207
|
[4] |
Washer
|
|
| 18. |
LVU16084
|
[1] |
Toolbox
|
|
| 19. |
LVU16695
|
[1] |
Screw
|
|
