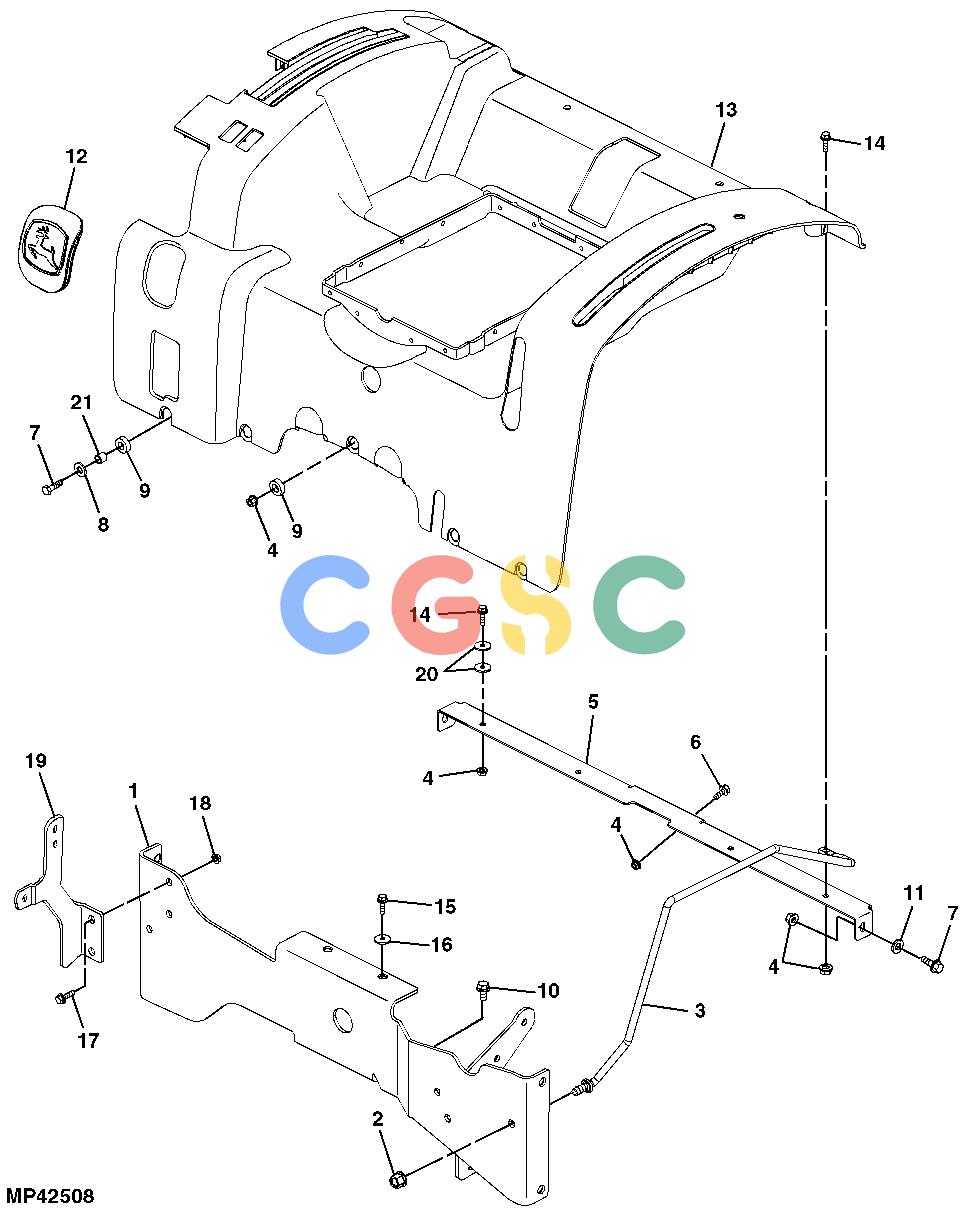

约翰迪尔零件查询110 - BACKHOE, LOADER Console (410156 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
LVA13766
|
[1] |
Bracket
|
|
| 2. |
14M7400
|
[1] |
Lock Nut
|
|
| 3. |
LVU12167
|
[1] |
Rod
|
|
| 4. |
14M7303
|
[7] |
Flange Nut
|
|
| 5. |
LVU11849
|
[1] |
Bracket
|
|
| 6. |
M803502
|
[5] |
Bushing
|
|
| 7. |
19M7863
|
[6] |
Screw
|
|
| 8. |
24M7139
|
[4] |
Washer
|
|
| 9. |
M803530
|
[5] |
Grommet
|
|
| 10. |
19M7865
|
[2] |
Screw
|
|
| 11. |
24M7100
|
[2] |
Washer
|
|
| 12. |
LVU12895
|
[1] |
Cover
|
|
| 13. |
LVA15267
|
[1] |
Cover
|
|
| 14. |
19M7862
|
[4] |
Screw
|
|
| 15. |
19M7866
|
[2] |
Screw
|
|
| 16. |
24M7178
|
[2] |
Washer
|
|
| 17. |
19M7785
|
[2] |
Screw
|
|
| 18. |
14M7296
|
[2] |
Flange Nut
|
|
| 19. |
LVA11435
|
[1] |
Bracket
|
|
| 20. |
24M7054
|
[2] |
Washer
|
|
| 21. |
M803502
|
[5] |
Bushing
|
|
