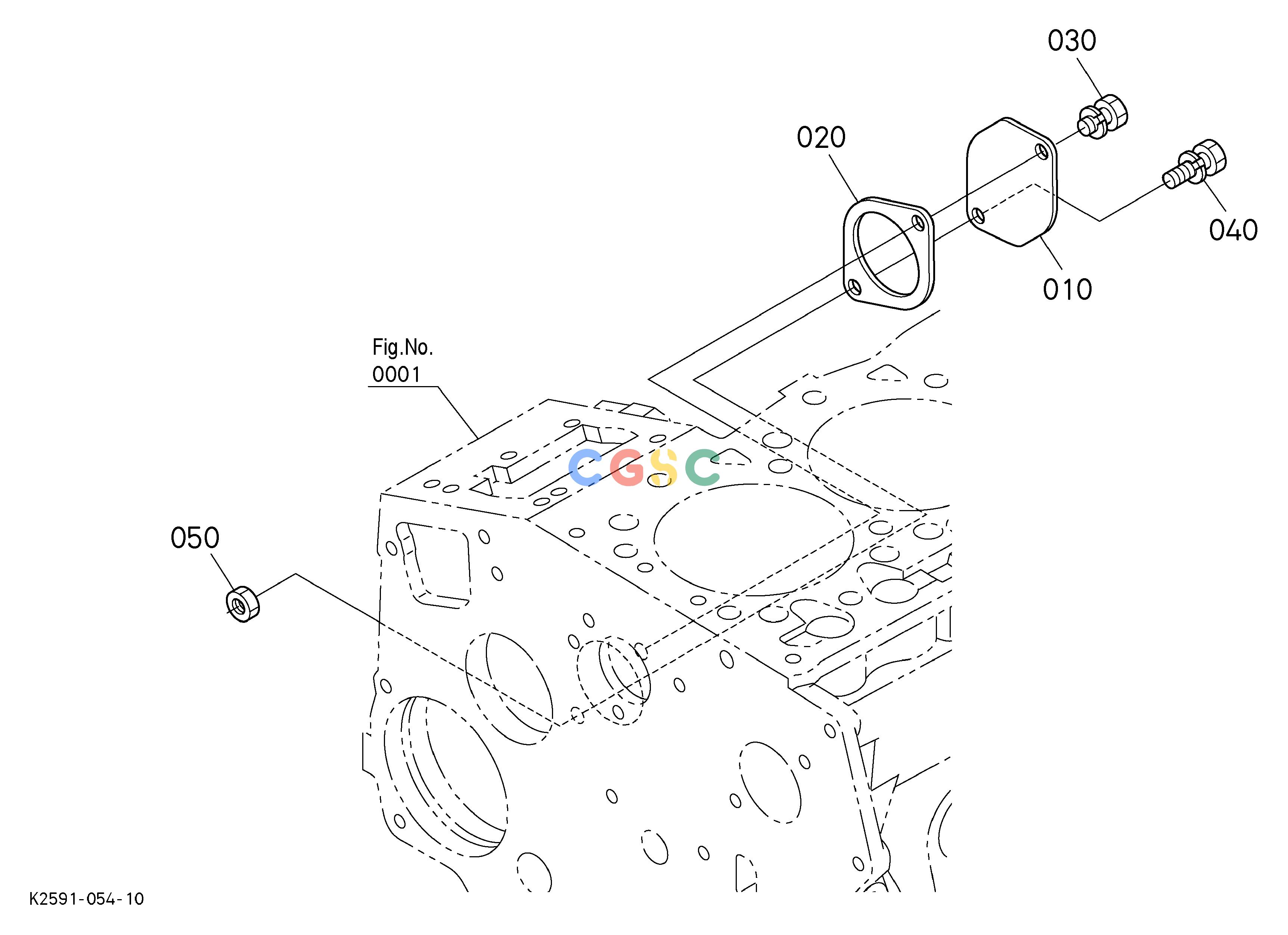

久保田零件查询070300 HYDRAULIC PUMP COVER ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1007 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256184110
|
[1] |
PLATE PUMP HOLE
|
0.2244(lbs); 0.102
|
| 020. |
1629983110
|
[1] |
GASKET PUMP COVER NA
|
0.0066(lbs); 0.003
|
| 030. |
0105350820
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 030. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
0105350830
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 040. |
0112350830
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 050. |
0205450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
