约翰迪尔零件查询110 - BACKHOE, LOADER Seat Components ( - 312164)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 961 次

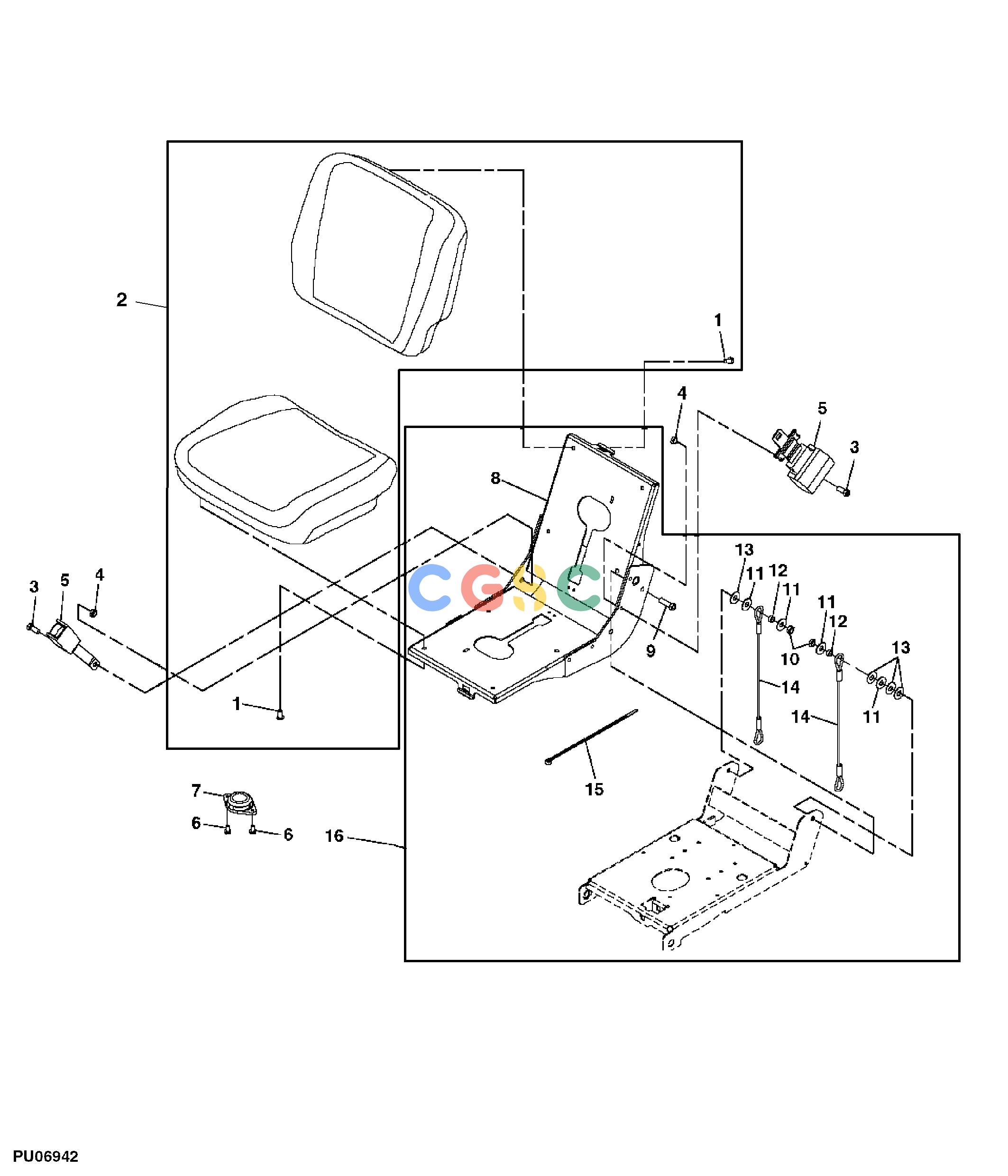

Pos.	Part No	Qty	Parts name	Comments
1.	E44412	[4]	Cap Screw
2.	LVA12469	[2]	Kit	INCLUDES (4) E44412; CUSHION
3.	19H3547	[2]	Cap Screw	7/16" X 1" (B) (USE WITH 2" BELT)
3.	19H3558	[2]	Cap Screw	7/16" X 3-1/2" (USE WITH 3" BELT) (SUB FOR LVU14233)
3.	LVU14232	[AR]	Spacer	(USE WITH 3" BELT)
4.	14H807	[2]	Nut	7/16" (B)
5.	LVA12468	[1]	Seat Belt	2" (INCLUDES PARTS MARKED (B))
5.	LVA12492	[1]	Seat Belt	3" (OPTIONAL)
6.	37H51	[4]	Screw	1/4" X 1/2"
7.	AET10449	[2]	Switch	(SUB FOR LVA12496)
8.	........	[1]	Frame	(D)
9.	19H3187	[2]	Cap Screw	7/16" X 1-1/2" (D)
10.	14H807	[2]	Nut	7/16" (D)
11.	24H1226	[4]	Washer	1/2" X 1-1/4" X 0.083" (D)
12.	LVU14226	[2]	Washer	(D) (NO LONGER AVAILABLE) (ORDER LVA12479)
13.	LVU14227	[4]	Washer	(D) (NO LONGER AVAILABLE) (ORDER LVA12479)
14.	LVA12491	[2]	Cable	(D) (NO LONGER AVAILABLE) (ORDER LVA12479)
15.	R44302	[2]	Tie Band	(D)
16.	LVA12479	[1]	Frame	(INCLUDES PARTS MARKED (D)) (SUB LVA13329, LVA13330, LVA13915, LVA13938, (4) 24M7178, (2) 19M7866, (2) 19M7867, (2) 24H1654, (2) 19M8832 AND (12) LVU13980 (NLA))
