约翰迪尔零件查询210C - BACKHOE, LOADER Rear Drive WheelEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 226 次

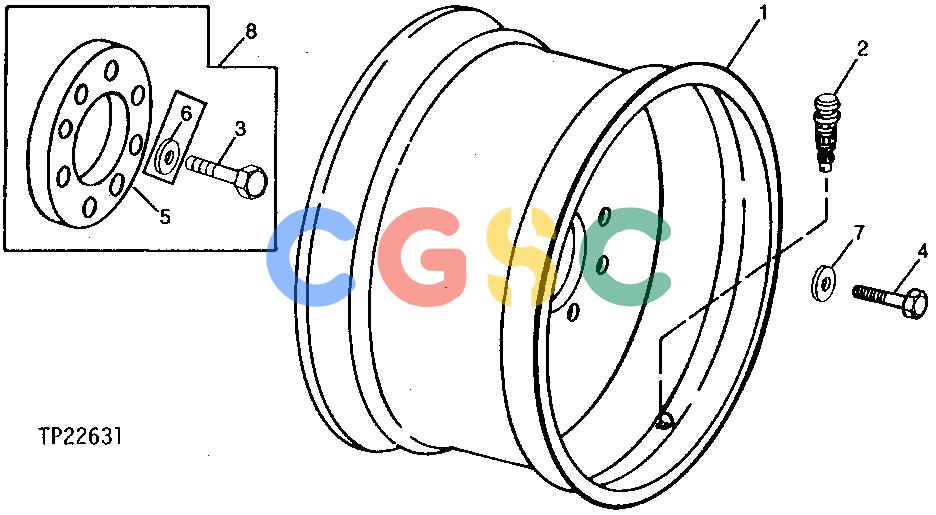

Pos.	Part No	Qty	Parts name	Comments
1.	JD3046	[1]	Wheel	(FOR 16.9 X 24 OR 17.5 X 24 TIRES)
1.	AT309099	[1]	Wheel	(FOR 16.9 X 24 OR 17.5 X 24 TIRES) (SUB FOR AT114215)
1.	JD3035	[1]	Rim	(FOR 14.9 X 24 TIRE)
1.	AT118675	[1]	Wheel	(FOR 14.9 X 24 TIRE)
1.	AT309102	[1]	Wheel	(FOR 16.9-24 , 17.5L-24 AND 17.5 X 24 TIRES) (USE WITH MFWD) (DO NOT USE WITH 7/8 YD BUCKET) (SUB FOR AT141444)
2.	AT25226	[1]	Tire Valve Stem
3.	19H3035	[16]	Cap Screw	9/16" X 3"
3.	19H3655	[16]	Cap Screw	9/16" X 3" HS, SAE 8, 9/16" X 3"
3.	19H3196	[16]	Cap Screw	3/4" X 4" HS, SAE 8, 3/4" X 4"
4.	JD16	[8]	Wheel Bolt
4.	JD21	[8]	Wheel Bolt
4.	19H2717	[8]	Cap Screw	3/4" X 1-3/4" HS, SAE 8, 3/4" X 1-3/4"
5.	T101158	[2]	Extension
5.	T118860	[2]	Extension
5.	T66860	[2]	Spacer
6.	R76126	[16]	Washer
6.	R76126	[16]	Washer	(SUB FOR T11170)
7.	R54124	[8]	Washer
8.	........	[1]	Kit	(FOR USE WITH CHAINS OR MFWD) (AT101459 NO LONGER AVAILABLE FURNISH COMPONENT PARTS)
8.	........	[1]	Spacer	(FOR USE WITH CHAINS OR MFWD) (AT64280 NO LONGER AVAILABLE FURNISH COMPONENT PARTS)
