约翰迪尔零件查询210C - BACKHOE, LOADER PARK BRAKE LEVER AND LINKAGE ( - 745703)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 566 次

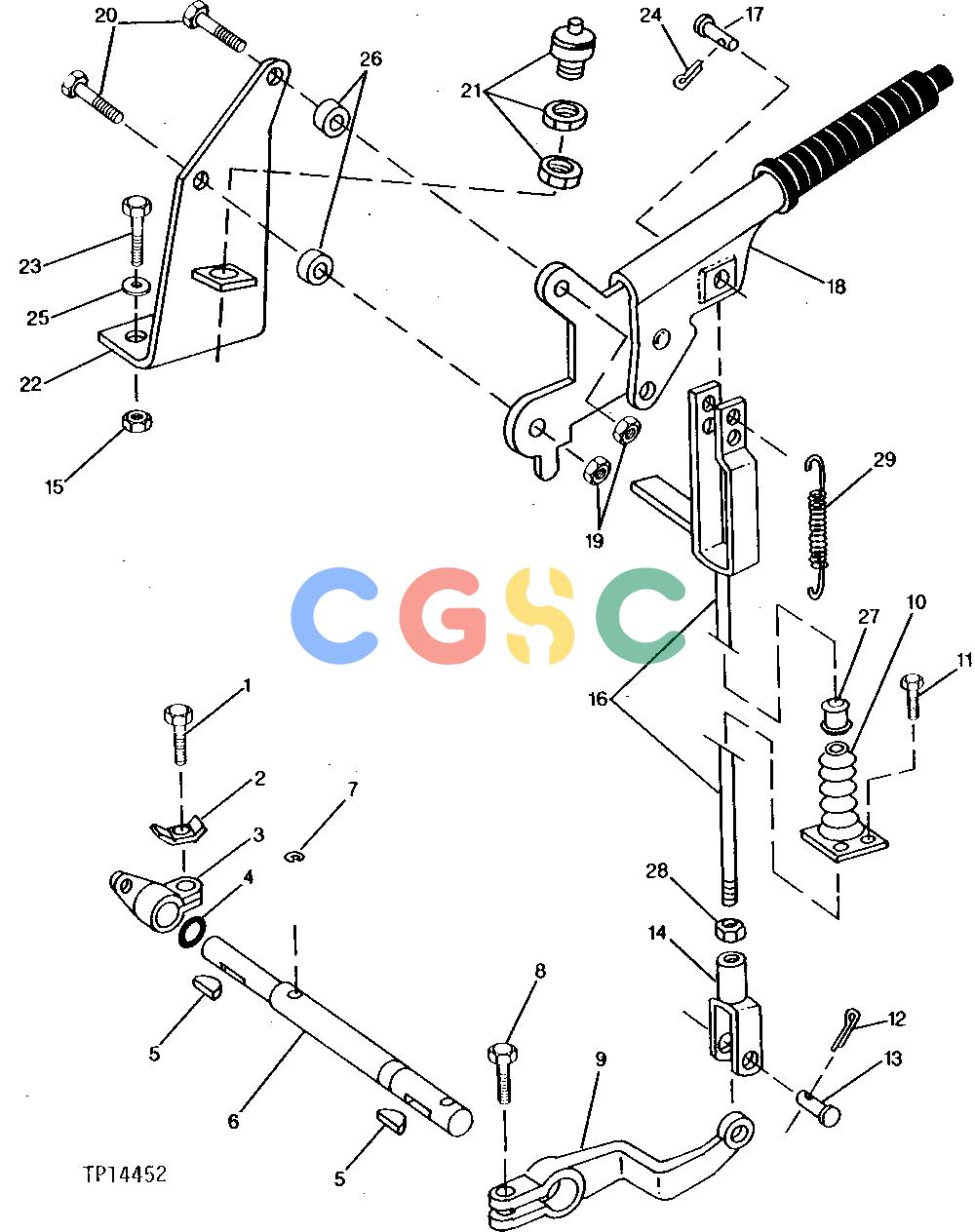

Pos.	Part No	Qty	Parts name	Comments
1.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
2.	R1888R	[1]	Strap
3.	L32144	[1]	Lever
4.	T122075	[1]	O-Ring	(SUB FOR U45860)
5.	26H77	[2]	Shaft Key	3/16" X 3/4"
6.	T106086	[1]	Shaft	(SUB FOR T67040, THIS APPLICATION)
7.	M2353T	[1]	Snap Ring
8.	19M7407	[1]	Cap Screw	M8 X 25
9.	T106460	[1]	Arm	(SUB FOR T100402)
10.	AT66911	[1]	Boot
11.	19M7775	[2]	Screw	M6 X 16
11.	24H1286	[2]	Washer	9/32" X 1/2" X 1/16"
12.	11M7081	[2]	Cotter Pin	2.500 X 20 MM
13.	C1067R	[2]	Pin Fastener
14.	M80373	[1]	Yoke	(SUB FOR L324T)
15.	14M7274	[3]	Nut	M10
16.	AT100463	[1]	Rod
17.	45M6305	[1]	Pin Fastener	8 X 35 MM (SUB Z21059)
17.	Z21059	[1]	Pin Fastener
18.	CH18050	[1]	Lever
19.	14M7273	[2]	Nut	M8
20.	19M7407	[2]	Cap Screw	M8 X 25
21.	AH78765	[1]	Switch	(SUB FOR AT42011)
22.	AT101347	[1]	Support
23.	19M7662	[2]	Cap Screw	M10 X 30
24.	11M7077	[1]	Cotter Pin	1.600 X 25 MM
25.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
26.	28H860	[2]	Washer	0.423" X 0.675" X 3/8"
27.	T70083	[1]	Grommet
28.	14H788	[1]	Nut	3/8"
29.	T25367	[1]	Extension Spring
