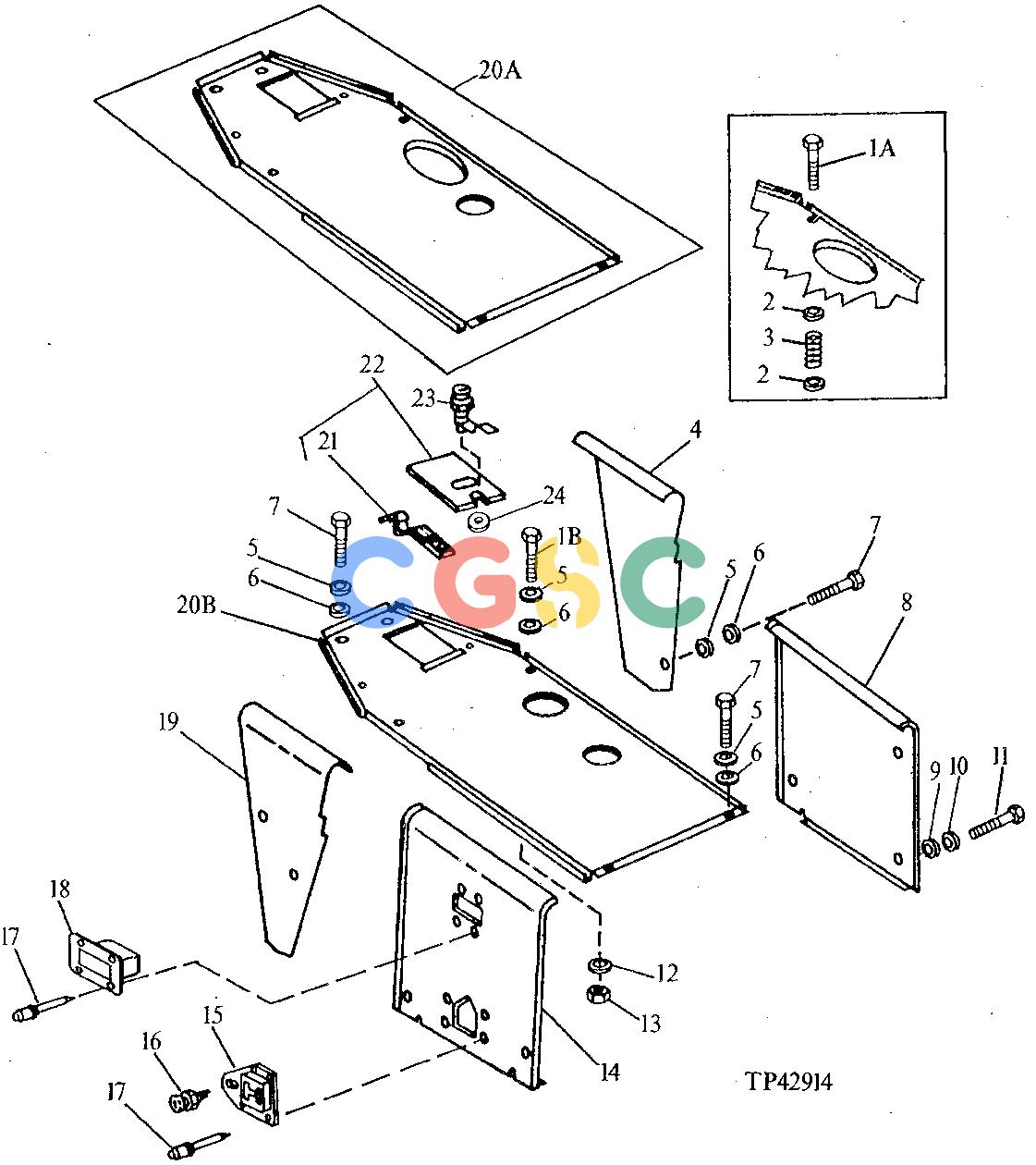

Pos.	Part No	Qty	Parts name	Comments
1A.	19M7807	[2]	Screw	M10 X 60
1B.	19M7786	[2]	Screw	M10 X 30
1B.	19M7402	[4]	Cap Screw	M10 X 25
2.	24H1219	[4]	Washer	7/16" X 1" X 0.083"
3.	T26072	[2]	Spring
4.	AT106718	[1]	Cowl	LEFT (SUB FOR AT101222)
5.	H110232	[10]	Washer
6.	24M7239	[10]	Washer	10.700 X 21 X 2.500 MM
7.	19M7784	[10]	Screw	M10 X 20
7.	19M7402	[8]	Cap Screw	M10 X 25
8.	AT101248	[1]	Shield	LEFT
9.	T145936	[2]	Washer
10.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
11.	19M7402	[2]	Cap Screw	M10 X 25
12.	24H1219	[2]	Washer	7/16" X 1" X 0.083"
12.	24H1219	[4]	Washer	7/16" X 1" X 0.083"
13.	14M7167	[2]	Lock Nut	M10
13.	14M7167	[4]	Lock Nut	M10
14.	AT100461	[1]	Shield	RIGHT
15.	AT74879	[1]	Latch
16.	AT74878	[1]	Lock	(INCLUDES T42713 NUT)
17.	AT44188	[8]	Rivet
18.	T105769	[1]	Grip
19.	AT106717	[1]	Cowl	(SUB FOR AT101221)
20A.	AT106716	[1]	Hood	(SUB FOR AT100460 ) (ALSO ORDER (2) 19M7786 AND (8) H110232)
20B.	AT106665	[1]	Hood
21.	T10379	[2]	Clamp
22.	AT42072	[1]	Cover
23.	AT38176	[1]	Lock
24.	12H327	[1]	Lock Washer	3/4" INTERNAL TOOTH
