约翰迪尔零件查询210C - BACKHOE, LOADER GRILLE HOUSING AND RESERVOIREPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 427 次

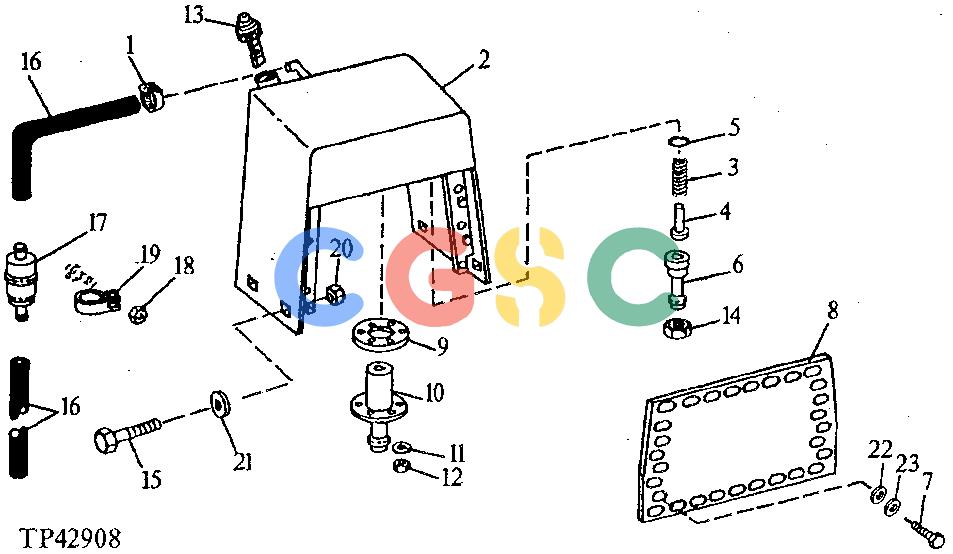

Pos.	Part No	Qty	Parts name	Comments
1.	TY22464	[1]	Clamp	(SUB FOR AR21836)
2.	AT100035	[1]	Housing
2.	AT135052	[1]	Housing
3.	T43645	[1]	Spring	(SUB FOR R49352, AND R41055THIS APPLICATION)
4.	17H148	[1]	Rivet	1/2" X 3"
5.	T78612	[1]	O-Ring
6.	AT101595	[1]	Oil Tube
7.	19M7402	[4]	Cap Screw	M10 X 25
8.	T100047	[1]	Grille
9.	T105985	[1]	Gasket	(SUB FOR T100011)
10.	AT100011	[1]	Filter
11.	24M7036	[6]	Washer	9 X 16 X 1.600 MM
12.	14M7166	[6]	Lock Nut	M8
13.	AT101583	[1]	Dipstick
14.	38H1122	[1]	Tube Nut
15.	19M7843	[4]	Screw	M16 X 35
16.	........	[AR]	Hose	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
17.	AT101565	[1]	Air Filter
18.	14M7274	[1]	Nut	M10
18.	24M7239	[1]	Washer	10.700 X 21 X 2.500 MM
19.	E69975	[1]	Clamp
20.	14M7291	[4]	Flange Nut	M16
21.	W14783	[4]	Washer	(NO LONGER REQUIRED, THIS APPLICATION) (USE WITH 19M7843)
21.	24M7241	[4]	Washer	17 X 34 X 4 MM (GRILLE FRAME TO MAIN FRAME CAPSCREWS)
22.	T145936	[4]	Washer	9.910 X 32 X 1.570 MM (0.390" X 1.260" X 1/16")
23.	24M7296	[4]	Washer	10.500 X 30 X 2.500 MM
