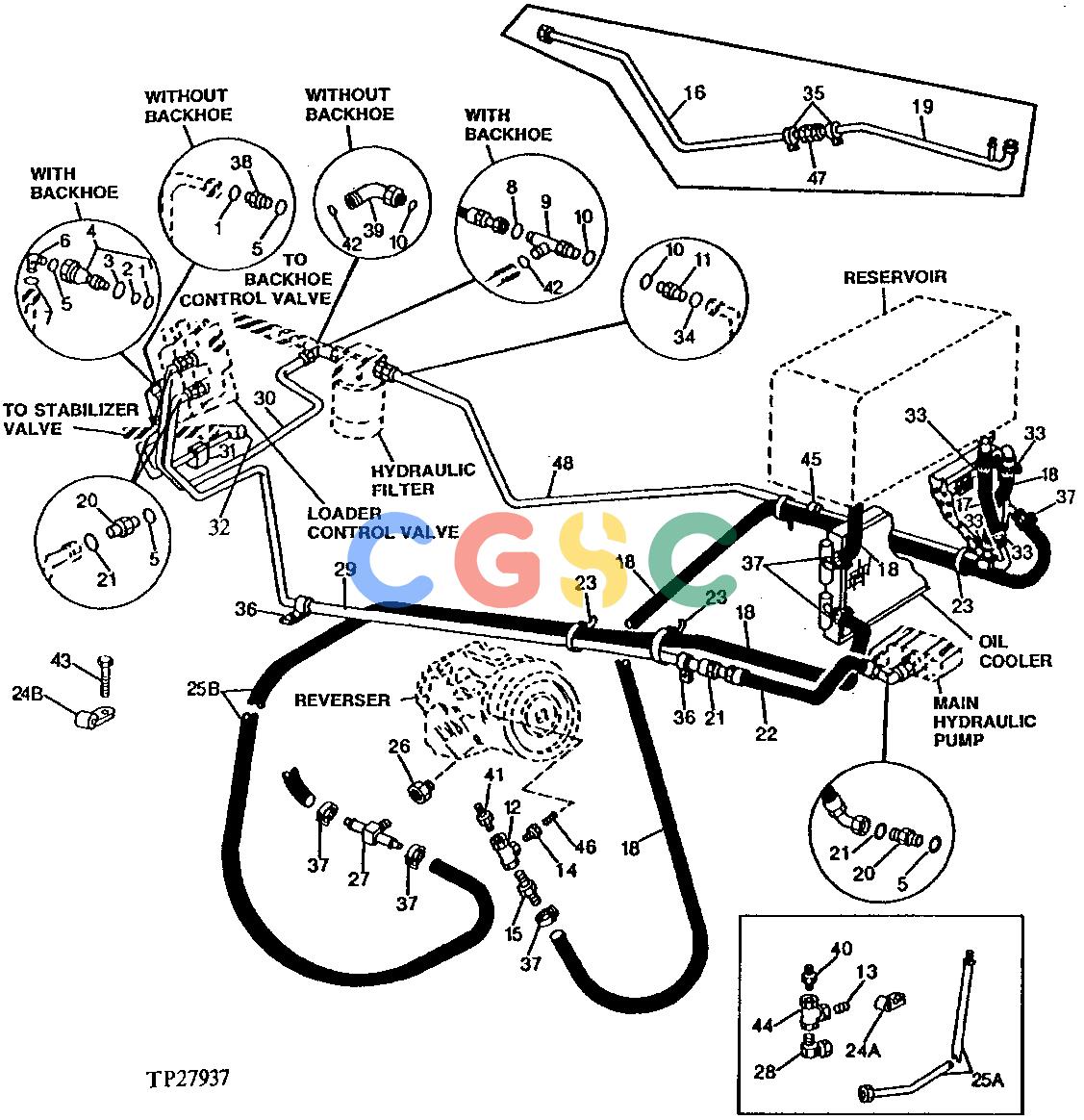

约翰迪尔零件查询210C - BACKHOE, LOADER Main Hydraulic SystemEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 942 次

Pos.	Part No	Qty	Parts name	Comments
1.	H30843	[2]	O-Ring
2.	T100777	[1]	Back-Up Ring
3.	U17409	[2]	O-Ring	(SUB FOR T61678)
4.	AT100591	[1]	Adapter Fitting	(POWER BEYOND)
5.	U12547	[5]	O-Ring
6.	38H1007	[1]	Elbow Fitting
7.	T77857	[1]	O-Ring
8.	T76938	[1]	O-Ring
9.	38H1027	[1]	Tee Fitting	(WITH BACKHOE)
9.	38H1410	[1]	Tee Fitting	(WITH BACKHOE)
10.	R29936	[2]	O-Ring
11.	38H1196	[1]	Adapter Fitting
12.	T141650	[1]	Tee Fitting	(SUB FOR T113448)
13.	29H587	[1]	Threaded Nipple	3/8"
14.	15H586	[1]	Adapter Fitting	3/8" (REDUCER)
15.	N85588	[1]	Hose Fitting	(BARBED)
16.	AT101594	[1]	Oil Line
16.	AT118554	[1]	Oil Line
17.	T105828	[1]	Hydraulic Hose - Fabricate
18.	........	[AR]	Hydraulic Hose	(MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH)
19.	AT101593	[1]	Oil Line
20.	38H1163	[2]	Adapter Fitting
21.	T77858	[4]	O-Ring
22.	AT100557	[1]	Hydraulic Hose - Fabricate	30.1752" X 579 MM (22-3/4") X 30.1752"
23.	H77698	[AR]	Tie Band
24A.	T33514	[1]	Clamp
24B.	T28949	[1]	Clamp
25A.	AT100587	[1]	Oil Tube
25B.	........	[AR]	Hose	(MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH)
26.	15H619	[1]	Pipe Bushing	3/8" (REDUCER)
27.	T38040	[1]	Hose Fitting
28.	AP23054	[1]	Elbow Fitting
29.	AT100554	[1]	Oil Line
30.	AT100556	[1]	Oil Line	(WITH BACKHOE, SUB AT107990 AND 38H1410) (WITHOUT BACKHOE, SUB AT107990 AND 38H1052)
30.	AT107990	[1]	Oil Line
31.	U45824	[1]	Clamp	(WITH BACKHOE)
31.	R46415	[1]	Clamp	(SUB FOR H75541)(WITHOUT BACKHOE)
31.	19M7513	[1]	Cap Screw	M8 X 30
31.	14M7298	[2]	Flange Nut	M8
32.	AT100597	[1]	Line	(WITHOUT BACKHOE)
32.	AT100560	[1]	Oil Line	(WITH BACKHOE)
33.	AR21999	[4]	Hose Clamp	(SUB FOR AR21840)
34.	T78612	[1]	O-Ring
35.	U43641	[2]	Clamp
35.	19M7867	[2]	Screw	M8 X 25
35.	14M7298	[2]	Flange Nut	M8
36.	U45824	[2]	Clamp
36.	19M7867	[2]	Screw	M8 X 25
36.	14M7298	[2]	Flange Nut	M8
37.	TY22464	[4]	Clamp	(SUB FOR AR21836)
38.	38H1350	[1]	Adapter Fitting	(WITHOUT BACKHOE)
39.	38H1037	[1]	Elbow Fitting	(WITHOUT BACKHOE)
39.	38H1052	[1]	Elbow Fitting	(WITHOUT BACKHOE)
40.	PMHB038050SS	[1]	Hose Fitting	(SUB FOR N85584)(BARBED)
41.	AT100083	[1]	Switch	(REVERSER TEMPERATURE)
42.	T76938	[1]	O-Ring
42.	T77858	[1]	O-Ring
43.	19H1924	[1]	Cap Screw	7/16" X 3/4"
44.	15H587	[1]	Tee Fitting	1/2"
45.	U13667	[1]	Clamp
45.	U15939	[1]	Clamp
45.	14M7274	[1]	Nut	M10
45.	19M7938	[1]	Cap Screw	M10 X 20
46.	29H587	[1]	Threaded Nipple	3/8"
47.	T78612	[1]	O-Ring
48.	AT124305	[1]	Oil Line
