约翰迪尔零件查询210C - BACKHOE, LOADER Third Function Valve (Manual Control) ( - 770927)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 533 次

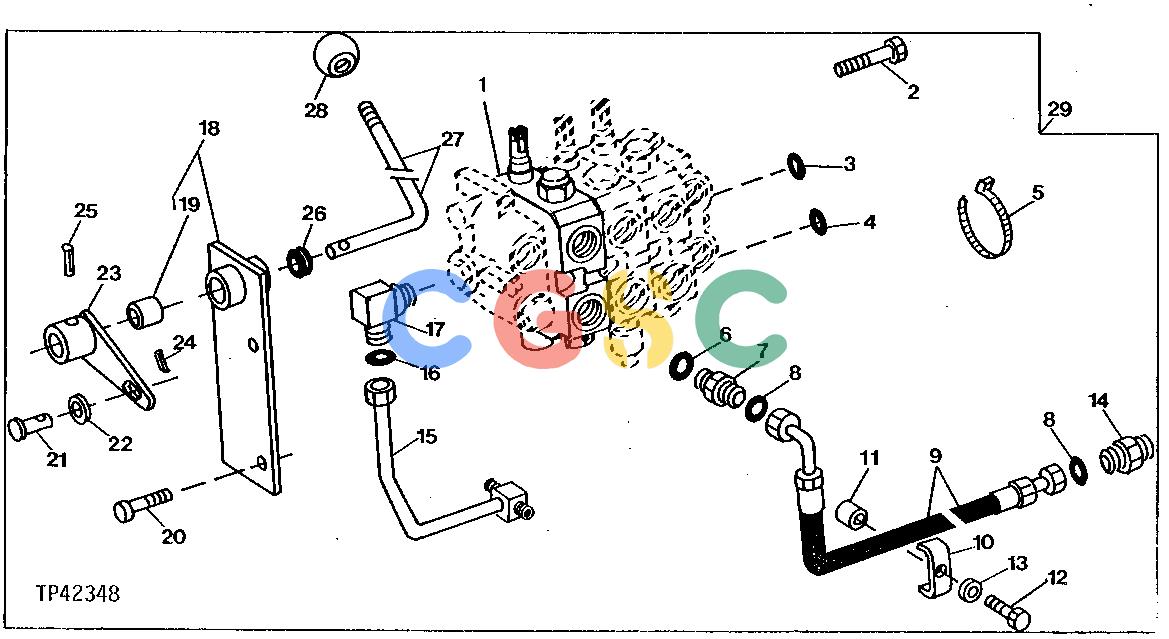

Pos.	Part No	Qty	Parts name	Comments
1.	AT160104	[1]	Valve	(SUB FOR AT101872 AND AT148686 ) (SUB AT167240 ) (ALSO ORDER AT160682)
1.	AT167240	[1]	Valve	(ALSO ORDER AT160682)
2.	19H3394	[3]	Cap Screw	3/8" X 8"
3.	T49819	[2]	O-Ring	(SUB FOR T106368)
4.	T142419	[2]	O-Ring	(SUB FOR T113021)
5.	R44302	[2]	Tie Band
6.	R26906	[2]	O-Ring
7.	38H1172	[2]	Adapter Fitting
8.	T77613	[4]	O-Ring
9.	AT135725	[2]	Hydraulic Hose - Fabricate	(SUB FOR AT113815)
10.	U40398	[3]	Clamp
11.	28H3381	[2]	Spacer	0.493" X 0.675" X 5/8"
12.	19H1765	[2]	Cap Screw	3/8" X 1-3/4"
12.	19H2284	[1]	Cap Screw	3/8" X 7/8"
12.	24H1301	[AR]	Washer	13/32" X 9/16" X 0.065"
13.	24H1304	[1]	Washer	13/32" X 23/32" X 0.120"
14.	38H1146	[2]	Fitting Plug
15.	AT107887	[1]	Oil Line	(USE WITH BACKHOE)
16.	T77858	[1]	O-Ring	(NOT INCLUDED IN KIT)
17.	38H1007	[1]	Elbow Fitting	(NOT INCLUDED IN KIT)
18.	AT114485	[1]	Bracket	(SUB FOR AT113814)
19.	T52805	[2]	Bushing
20.	........	[2]	Cap Screw	(NOT INCLUDED IN KIT)
21.	T19155	[1]	Pin Fastener
22.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
23.	AT47913	[1]	Lever
24.	11M7081	[1]	Cotter Pin	2.500 X 20 MM
25.	34H312	[1]	Spring Pin	1/4" X 1"
26.	A3488R	[1]	Grommet
27.	T118642	[1]	Rod	(SUB FOR T113141)
28.	T68099	[1]	Knob
29.	AT113811	[1]	Mounting Parts
