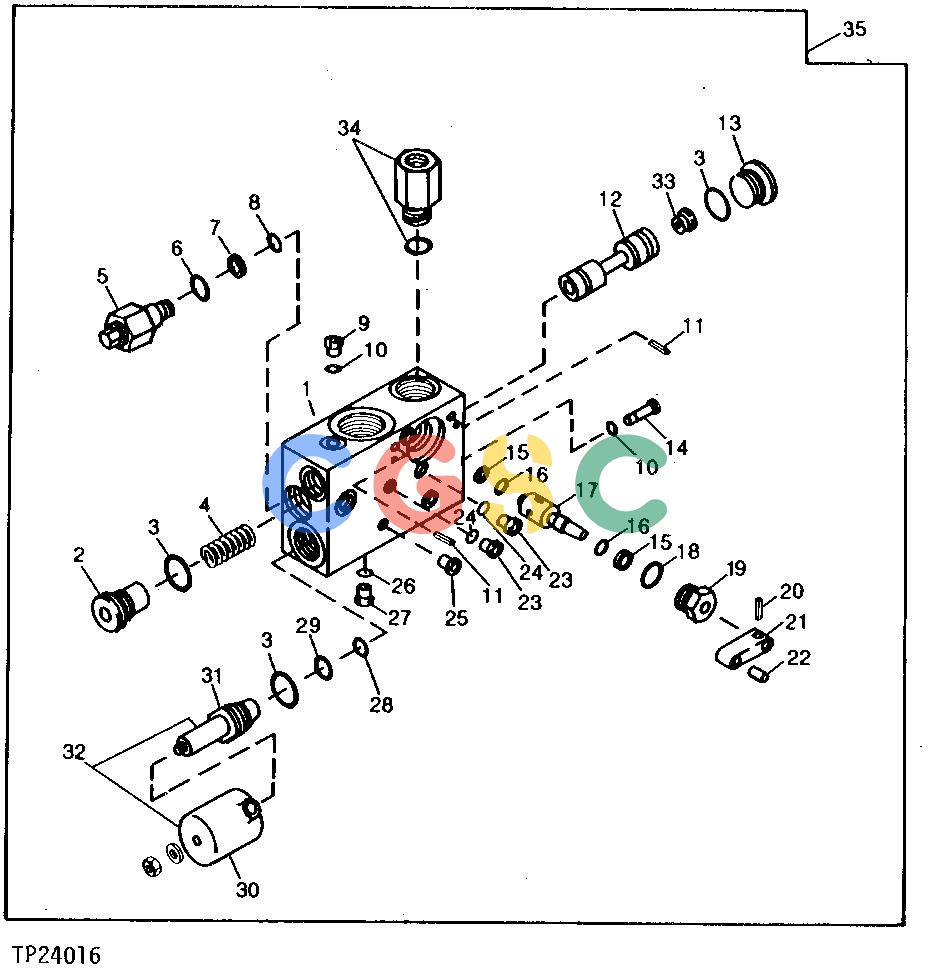

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Housing	(SUB AT101899)
2.	........	[1]	Cap	(SUB AT101899)
3.	U12547	[3]	O-Ring
4.	........	[1]	Spring	(SUB AT101899)
5.	AT106655	[1]	Pressure Relief Valve
6.	R26375	[1]	O-Ring
7.	T106208	[1]	Back-Up Ring
8.	T77613	[1]	O-Ring	(SUB FOR R64613)
9.	........	[1]	Plug	(SUB AT101899)
10.	R30903	[2]	O-Ring
11.	34H69	[2]	Spring Pin	3/16" X 1/2"
12.	........	[1]	Spool Valve	(SUB AT101899)
13.	........	[1]	Plug	(SUB AT101899)
14.	........	[1]	Orifice	(SUB AT101899)
15.	W37172	[2]	Back-Up Ring
16.	T77814	[2]	O-Ring	(SUB FOR T19963)
17.	........	[1]	Control Valve	( T106205 USE IF AVAILABLE)
18.	R26906	[1]	O-Ring
19.	T106206	[1]	Nut
20.	34H227	[1]	Spring Pin	3/32" X 1/2"
21.	T106207	[1]	Handle
22.	AT106657	[1]	Screw
23.	........	[2]	Plug	(SUB AT101899)
24.	R26287	[2]	O-Ring
25.	........	[6]	Bushing	(SUB AT101899)
26.	R28782	[1]	O-Ring
27.	........	[1]	Plug	(SUB AT101899)
28.	H81608	[1]	O-Ring
29.	T77932	[1]	O-Ring	(SUB FOR Z29304)
30.	........	[1]	Electrical Coil	(SUB AT106656)
31.	........	[1]	Core	(SUB AT106656)
32.	AT106656	[1]	Solenoid Valve
33.	........	[1]	Orifice	(SUB AT101899)
34.	AT117631	[1]	Check Valve	CHECK VALVE WITH O-RING
35.	AT101899	[1]	Elec-Hyd Proportional Valve
