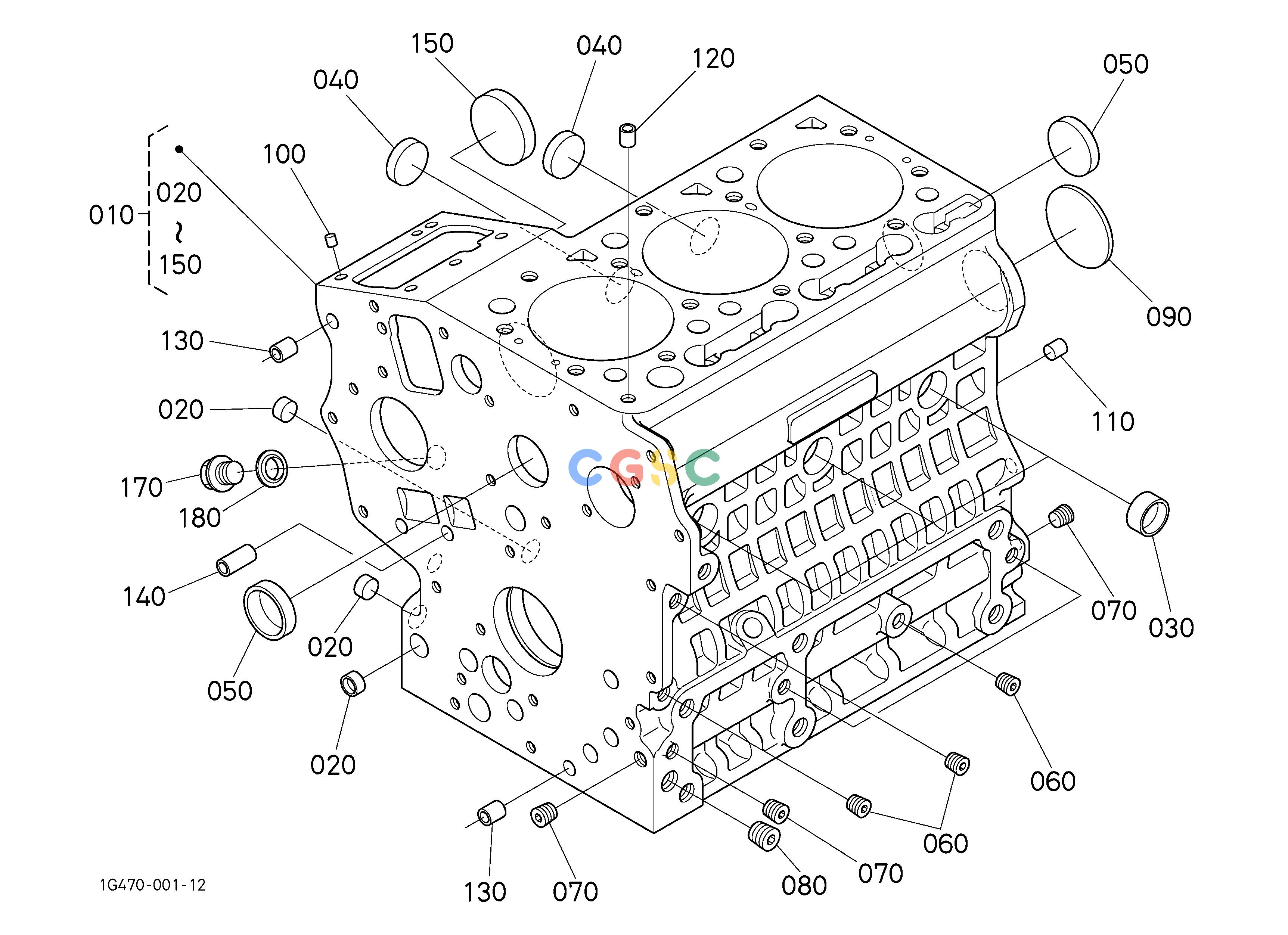

久保田零件查询100100 CRANKCASE ## NOTE:ORDER BY REF.No.010 NEW PART and REF.No.180 NEW PART. ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G47001017
|
[1] |
COMP.CRANKCASE
|
50.6000(lbs); 23.000
|
| 010. |
1G47001019
|
[1] |
COMP.CRANKCASE
|
50.6000(lbs); 23.000
|
| 020. |
1685196260
|
[3] |
CAP SEALING
|
0.0110(lbs); 0.005
|
| 030. |
1685196270
|
[3] |
CAP SEALING
|
0.0110(lbs); 0.005
|
| 040. |
0631185025
|
[2] |
CAP SEALING
|
0.0220(lbs); 0.010
|
| 050. |
1545196270
|
[2] |
CAP SEALING
|
0.0220(lbs); 0.010
|
| 060. |
1526196010
|
[5] |
PLUG
|
0.0044(lbs); 0.002
|
| 070. |
1552196020
|
[3] |
PLUG
|
0.0066(lbs); 0.003
|
| 080. |
1552196030
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 090. |
1526196160
|
[1] |
PLUG EXPANSION
|
0.0440(lbs); 0.020
|
| 100. |
0501200508
|
[2] |
PIN STRAIGHT
|
0.0022(lbs); 0.001
|
| 110. |
0501200814
|
[2] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 120. |
1522133650
|
[1] |
PIN PIPE
|
0.0088(lbs); 0.004
|
| 130. |
1523133960
|
[2] |
PIN PIPE
|
0.0022(lbs); 0.001
|
| 140. |
1733159190
|
[2] |
PIN PIPE
|
0.0044(lbs); 0.002
|
| 150. |
1685116212
|
[1] |
COVER FUEL CAMSHAFT
|
0.0660(lbs); 0.030
|
| 170. |
0631155020
|
[1] |
PLUG
|
0.0682(lbs); 0.031
|
| 180. |
0472400130
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 180. |
0471701320
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
