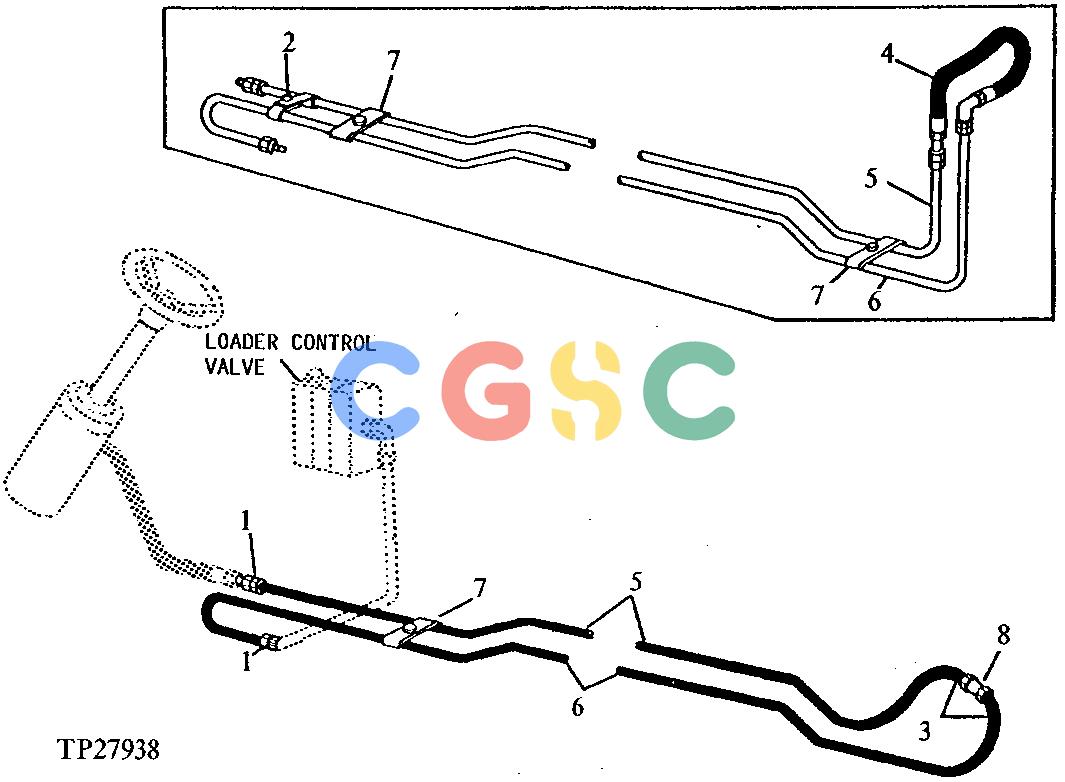

约翰迪尔零件查询210C - BACKHOE, LOADER Three Point Hitch Pressure and Return Hydraulics (With or Without Baackhoe) ( - 752372)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U12547
|
[2] |
O-Ring
|
|
| 1. |
U12547
|
[2] |
O-Ring
|
|
| 1. |
T77857
|
[2] |
O-Ring
|
|
| 2. |
R34064
|
[2] |
Clamp
|
|
| 2. |
19M7139
|
[1] |
Cap Screw
|
|
| 2. |
14M7273
|
[1] |
Nut
|
|
| 3. |
T77613
|
[2] |
O-Ring
|
|
| 4. |
AT100550
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 5. |
AT101211
|
[1] |
Oil Line
|
|
| 5. |
AT132798
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 6. |
AT101212
|
[1] |
Oil Line
|
|
| 6. |
AT132797
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 7. |
U40398
|
[2] |
Clamp
|
|
| 7. |
19M7932
|
[2] |
Cap Screw
|
|
| 7. |
19M7932
|
[1] |
Cap Screw
|
|
| 7. |
U40398
|
[1] |
Clamp
|
|
| 8. |
38H1278
|
[1] |
Union Fitting
|
|
