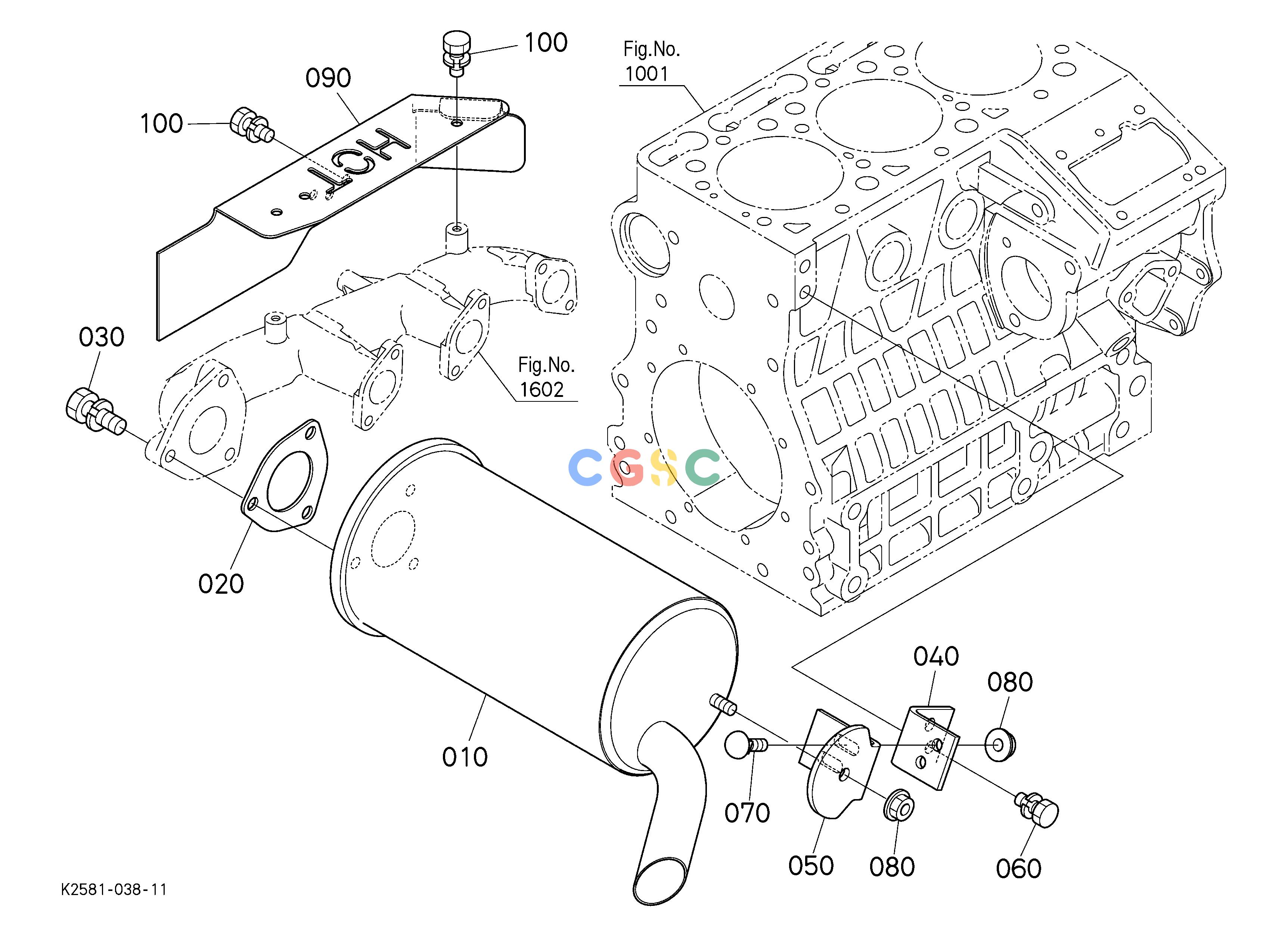

久保田零件查询160501 MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258183110
|
[1] |
COMP.MUFFLER
|
0.0000(lbs); 0.000
|
| 020. |
1586212230
|
[1] |
GASKET MUFFLER NA
|
0.0330(lbs); 0.015
|
| 030. |
0112350830
|
[3] |
BOLT
|
0.0330(lbs); 0.015
|
| 040. |
K257182132
|
[1] |
STAY MUFFLER
|
0.2200(lbs); 0.100
|
| 050. |
K257182230
|
[1] |
STAY MUFFLER
|
0.3300(lbs); 0.150
|
| 060. |
0112360814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
K112291330
|
[2] |
BOLT SHORT SQU.NECK
|
0.0000(lbs); 0.000
|
| 080. |
0275150080
|
[3] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
K250183220
|
[1] |
COVER HEAT PROOF
|
0.0000(lbs); 0.000
|
| 090. |
K250183222
|
[1] |
COVER HEAT PROOF
|
1.0010(lbs); 0.455
|
| 100. |
0102350610
|
[3] |
BOLT
|
0.0110(lbs); 0.005
|
