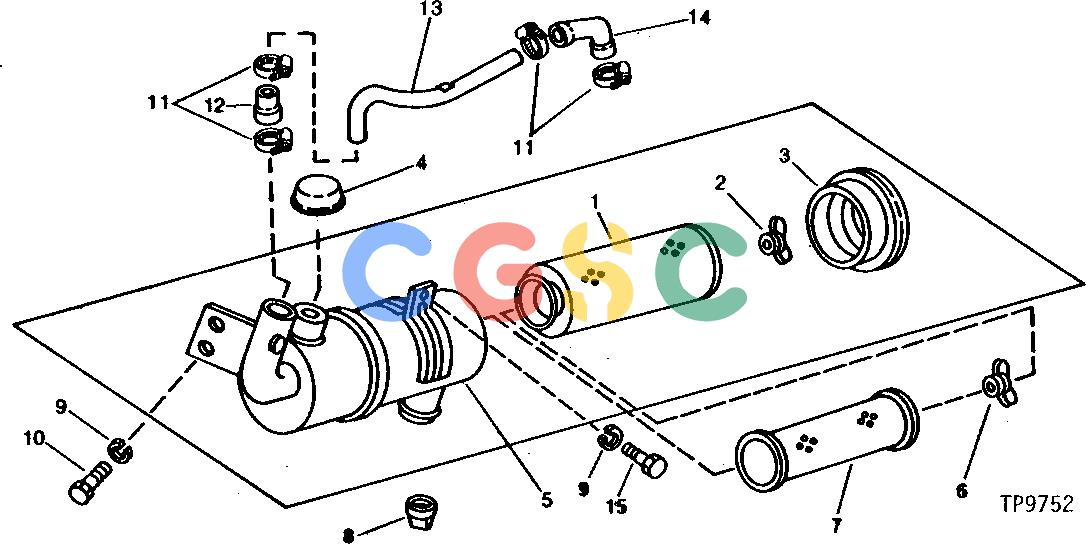

约翰迪尔零件查询300B - BACKHOE, LOADER AIR CLEANER, AIR INTAKE PIPE AND HOSES (SERIAL NO. 386507- ) [01C08]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AR84228
|
[1] |
Filter Element
|
|
| 2. |
AH20849
|
[1] |
Wing Nut
|
|
| 3. |
AT81398
|
[1] |
Cover
|
|
| 4. |
R21071
|
[1] |
Plug
|
|
| 5. |
AT81090
|
[1] |
Air Cleaner
|
|
| 6. |
AH20849
|
[1] |
Wing Nut
|
|
| 7. |
AE31724
|
[1] |
Filter Element
|
|
| 8. |
T23262
|
[1] |
Valve
|
|
| 9. |
12H304
|
[2] |
Lock Washer
|
|
| 10. |
19H2021
|
[1] |
Cap Screw
|
|
| 11. |
AR21999
|
[4] |
Hose Clamp
|
|
| 12. |
R63856
|
[1] |
Hose
|
|
| 13. |
........
|
[1] |
Pipe
|
|
| 13. |
T22830
|
[1] |
Pipe
|
|
| 14. |
R53443
|
[1] |
Hose
|
|
| 15. |
19H2284
|
[1] |
Cap Screw
|
|
