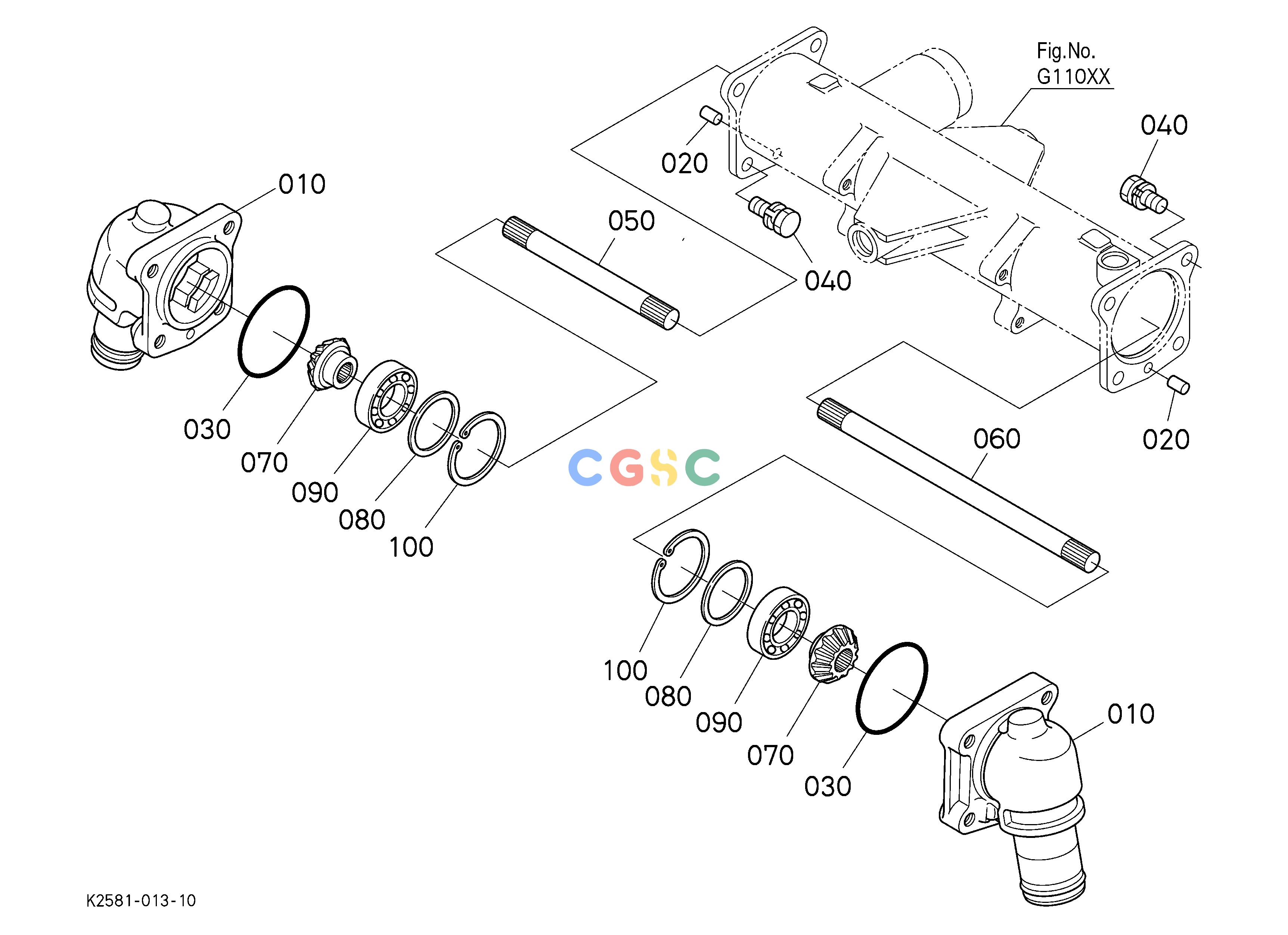

久保田零件查询G12002 DIFFERENTIAL GEAR SHAFT FRONT AXLEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258115220
|
[2] |
CASE BEVEL GEAR
|
6.3140(lbs); 2.870
|
| 020. |
0501201020
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 030. |
0481150850
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 040. |
0113351230
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
| 050. |
K256116220
|
[1] |
SHAFT YOKE RH
|
0.9240(lbs); 0.420
|
| 060. |
K256116210
|
[1] |
SHAFT YOKE LH
|
1.5400(lbs); 0.700
|
| 070. |
K256116230
|
[2] |
GEAR BEVEL F
|
0.4400(lbs); 0.200
|
| 080. |
6C04057130
|
[2] |
SHIM
|
0.0176(lbs); 0.008
|
| 080. |
6C04057140
|
[2] |
SHIM
|
0.0132(lbs); 0.006
|
| 080. |
6C04057150
|
[2] |
SHIM
|
0.0198(lbs); 0.009
|
| 080. |
6C04057160
|
[2] |
SHIM
|
0.0242(lbs); 0.011
|
| 090. |
0810106206
|
[2] |
BEARING BALL
|
0.4290(lbs); 0.195
|
| 100. |
0461100620
|
[2] |
CIR CLIP INTERNAL
|
0.0242(lbs); 0.011
|
