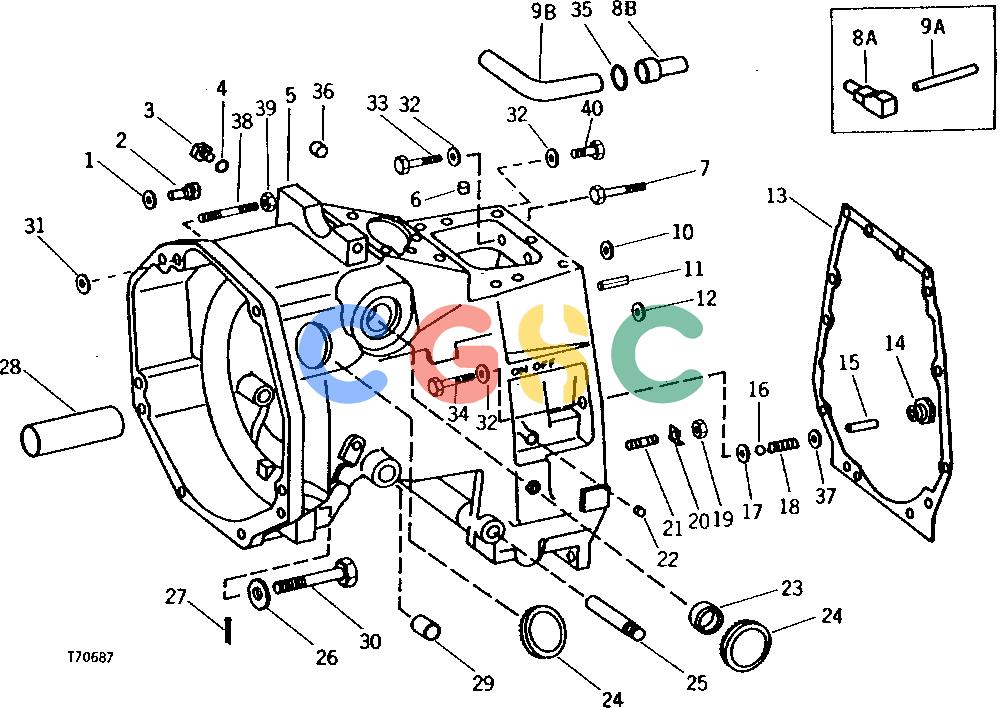

约翰迪尔零件查询300B - BACKHOE, LOADER CLUTCH HOUSING (WITHOUT REVERSER) [01E13]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T21827
|
[1] |
Washer
|
|
| 2. |
T22898
|
[1] |
Plug
|
|
| 3. |
R39112
|
[1] |
Fitting
|
|
| 4. |
R26375
|
[1] |
O-Ring
|
|
| 5. |
AT41646
|
[1] |
Housing
|
|
| 5. |
AT65217
|
[1] |
Housing
|
|
| 6. |
T12083
|
[1] |
Plug
|
|
| 7. |
19H1895
|
[1] |
Cap Screw
|
|
| 8A. |
T30841
|
[1] |
Adapter Fitting
|
|
| 8B. |
T25408
|
[1] |
Sleeve
|
|
| 9A. |
T30842
|
[1] |
Tube
|
|
| 9B. |
R48290
|
[1] |
Oil Tube
|
|
| 9B. |
R64806
|
[1] |
Oil Tube
|
|
| 10. |
T22851
|
[1] |
Washer
|
|
| 10. |
T68412
|
[1] |
Washer
|
|
| 11. |
34H251
|
[1] |
Spring Pin
|
|
| 12. |
A4847R
|
[1] |
Washer
|
|
| 13. |
R99290
|
[1] |
Gasket
|
|
| 14. |
R27175
|
[1] |
Drain Plug
|
|
| 15. |
T22850
|
[1] |
Pin
|
|
| 16. |
F2772R
|
[1] |
Ball
|
|
| 17. |
T22858
|
[1] |
Valve Seat Insert
|
|
| 18. |
T14059
|
[1] |
Spring
|
|
| 19. |
14H812
|
[4] |
Nut
|
|
| 20. |
R30958
|
[4] |
Lock Plate
|
|
| 21. |
C2175R
|
[4] |
Stud
|
|
| 22. |
M4224T
|
[1] |
Plug
|
|
| 23. |
L1788C
|
[1] |
Bushing
|
|
| 24. |
R1680R
|
[2] |
Plug
|
|
| 25. |
T21448
|
[1] |
Pin Fastener
|
|
| 26. |
R70268
|
[4] |
Washer
|
|
| 27. |
19M7084
|
[1] |
Cap Screw
|
|
| 28. |
T21447
|
[1] |
Sleeve
|
|
| 29. |
T21446
|
[1] |
Bushing
|
|
| 30. |
19H3170
|
[4] |
Cap Screw
|
|
| 31. |
R26919
|
[1] |
Washer
|
|
| 32. |
T20168
|
[5] |
Washer
|
|
| 33. |
19H2510
|
[2] |
Cap Screw
|
|
| 34. |
19H2735
|
[1] |
Cap Screw
|
|
| 35. |
R375R
|
[1] |
O-Ring
|
|
| 36. |
M1102T
|
[1] |
Plug
|
|
| 37. |
24H1685
|
[AR] |
Washer
|
|
| 38. |
L29854
|
[1] |
Rod
|
|
| 39. |
14H1039
|
[1] |
Nut
|
|
| 40. |
19H2644
|
[2] |
Cap Screw
|
|
