久保田零件查询H12002 STEERING LINKAGE STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
479 次

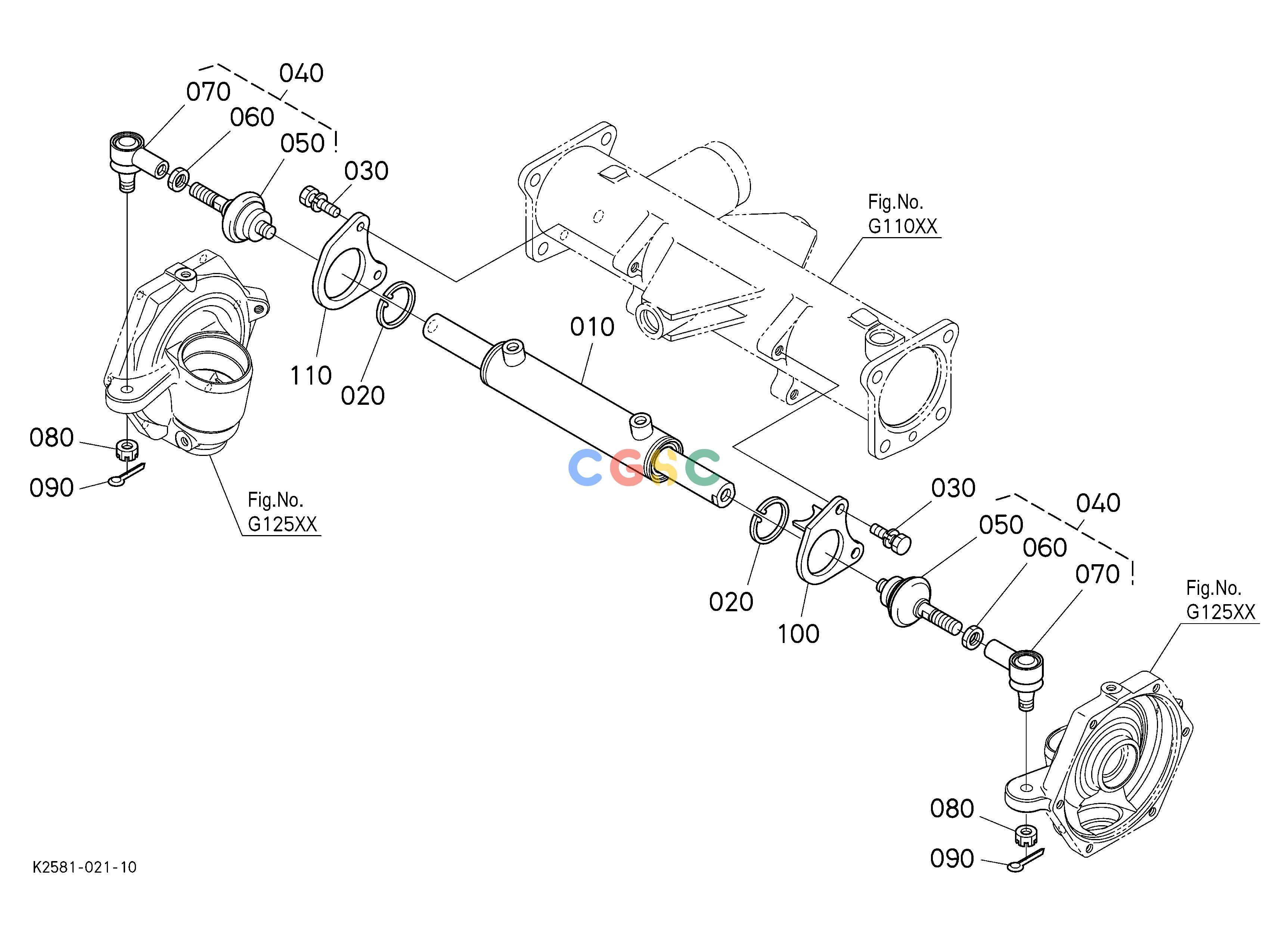

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251116500
|
[1] |
CYLINDER STEERING
|
7.3040(lbs); 3.320
|
| 020. |
0461200500
|
[2] |
CIR CLIP EXTERNAL
|
0.0176(lbs); 0.008
|
| 030. |
0113351030
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 040. |
K256116610
|
[2] |
ROD TIE STEERING
|
1.2100(lbs); 0.550
|
| 050. |
K256101630
|
[2] |
JOINT AXIAL BALL
|
0.6886(lbs); 0.313
|
| 060. |
K256101640
|
[2] |
NUT
|
0.0396(lbs); 0.018
|
| 070. |
K256101650
|
[2] |
JOINT BALL DIRECTION
|
0.5610(lbs); 0.255
|
| 080. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
0551152525
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
K256116620
|
[1] |
HOLDER LH
|
0.3388(lbs); 0.154
|
| 110. |
K256116630
|
[1] |
HOLDER RH
|
0.3212(lbs); 0.146
|
