约翰迪尔零件查询300B - BACKHOE, LOADER REVERSER BRAKE HOUSING (WITH REVERSER) [01F01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 986 次

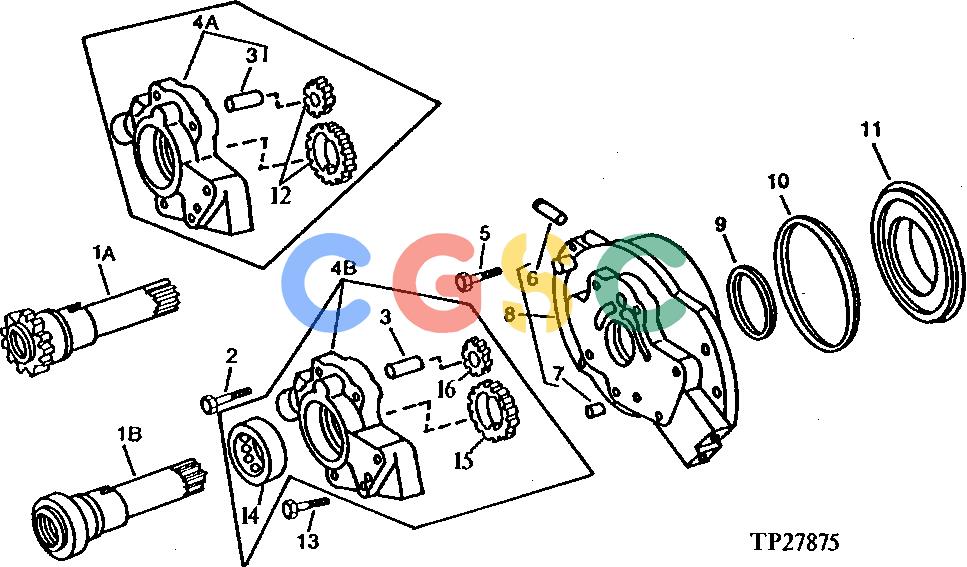

Pos.	Part No	Qty	Parts name	Comments
1A.	T22928	[1]	Shaft	(USE WITH CONTINUOUS PTO)
1B.	T35864	[1]	Shaft	(USE WITH NO PTO)
2.	R41041	[1]	Cap Screw	3/8" X 1-1/4"
3.	R39224	[1]	Dowel Pin	(SUB FOR T25317) (SUB FOR M42229, THIS APPLICATION)
4A.	........	[1]	Housing	(SUB AR96662) (SUB FOR AR39107, THIS APPLICATION) (MARKED R39244)
4B.	AR96662	[1]	Oil Pump	(MARKED R57959)
5.	19H3483	[7]	Cap Screw	3/8" X 1-1/8"
6.	R39166	[1]	Pin	PIVOT, HIGH SPEED LOCKOUT ARM
7.	R30587	[3]	Dowel Pin
8.	AR70310	[1]	Housing	(MARKED R39312) (SUB FOR AR63139)
9.	R39117	[1]	Washer
10.	R33059	[1]	Sealing Washer
11.	R39189	[1]	Piston
12.	........	[1]	Gear	( AR39164 NO LONGER AVAILABLE) (SUB AR96662)
13.	R112877	[5]	Cap Screw	3/8" X 2"
14.	JD8720	[1]	Cylindrical Roller Bearing
15.	R57957	[1]	Gear	(USE AFTER HOUSING MARKED R57959 HAS BEEN INSTALLED) (26 TEETH)
16.	AR69661	[1]	Steering Gear	(INCLUDES BUSHING) (USE AFTER HOUSING MARKED R57959 HAS BEEN INSTALLED) (13 TEETH) (MARKED R57956)
