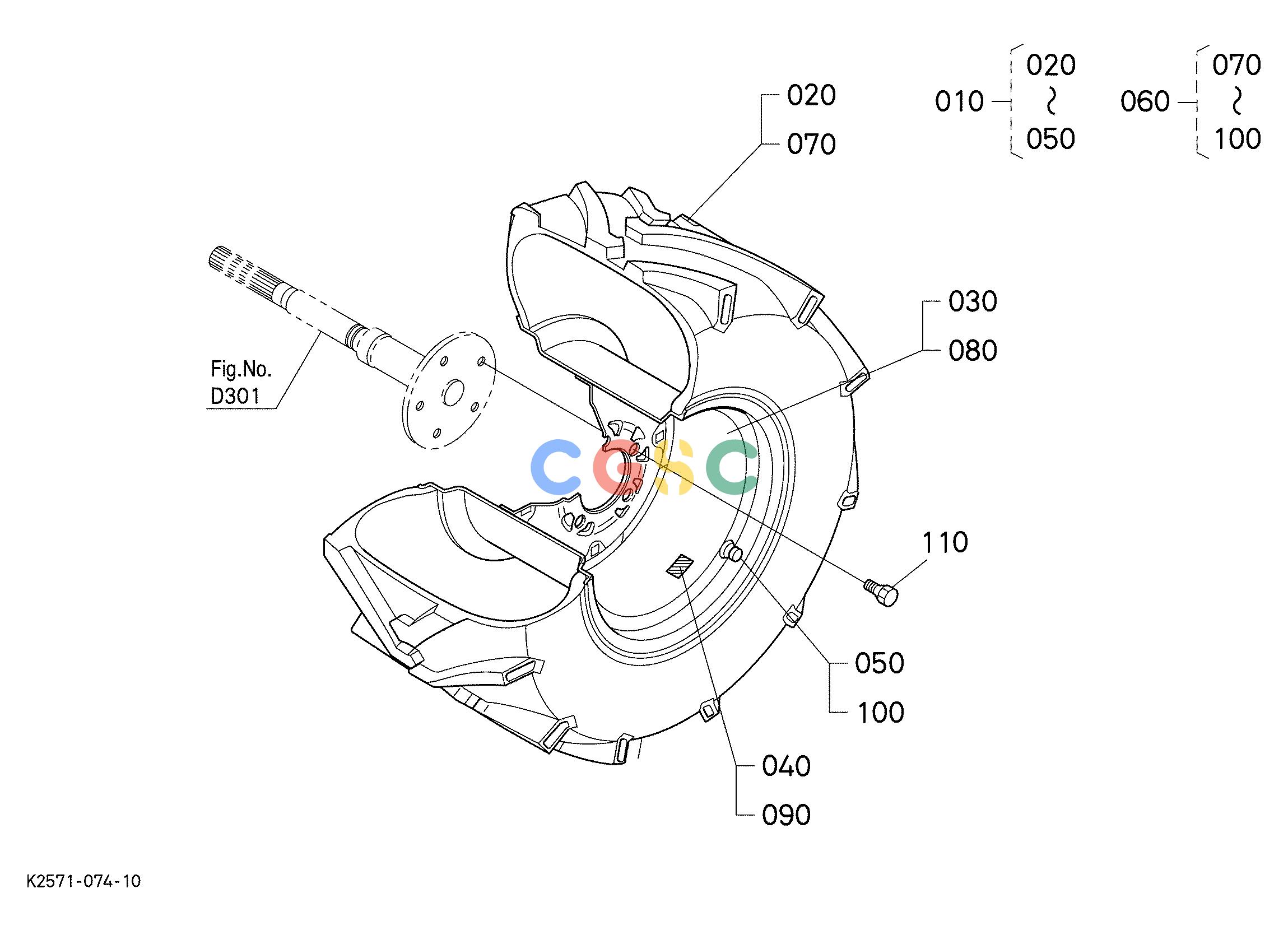

久保田零件查询R11004 REAR WHEEL(26 12.00-12) REAR TIREEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256117410
|
[1] |
TIRE ASSY,BL26X12-12
|
45.9800(lbs); 20.900
|
| 020. |
K256117150
|
[1] |
TIRE,B,26X12.00-12
|
29.6670(lbs); 13.485
|
| 030. |
K256117190
|
[1] |
WHEEL,12X10-1/2,B
|
16.2800(lbs); 7.400
|
| 040. |
---- |
[1] |
LABEL,BL
|
0.0000(lbs); 0.000
|
| 050. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 060. |
K256117420
|
[1] |
TIRE ASSY,BR26X12-12
|
0.0022(lbs); 0.001
|
| 070. |
K256117150
|
[1] |
TIRE,B,26X12.00-12
|
29.6670(lbs); 13.485
|
| 080. |
K256117190
|
[1] |
WHEEL,12X10-1/2,B
|
16.2800(lbs); 7.400
|
| 090. |
---- |
[1] |
LABEL,BR
|
0.0000(lbs); 0.000
|
| 100. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 110. |
K256117210
|
[10] |
BOLT(WHEEL,1/2)
|
0.1320(lbs); 0.060
|
