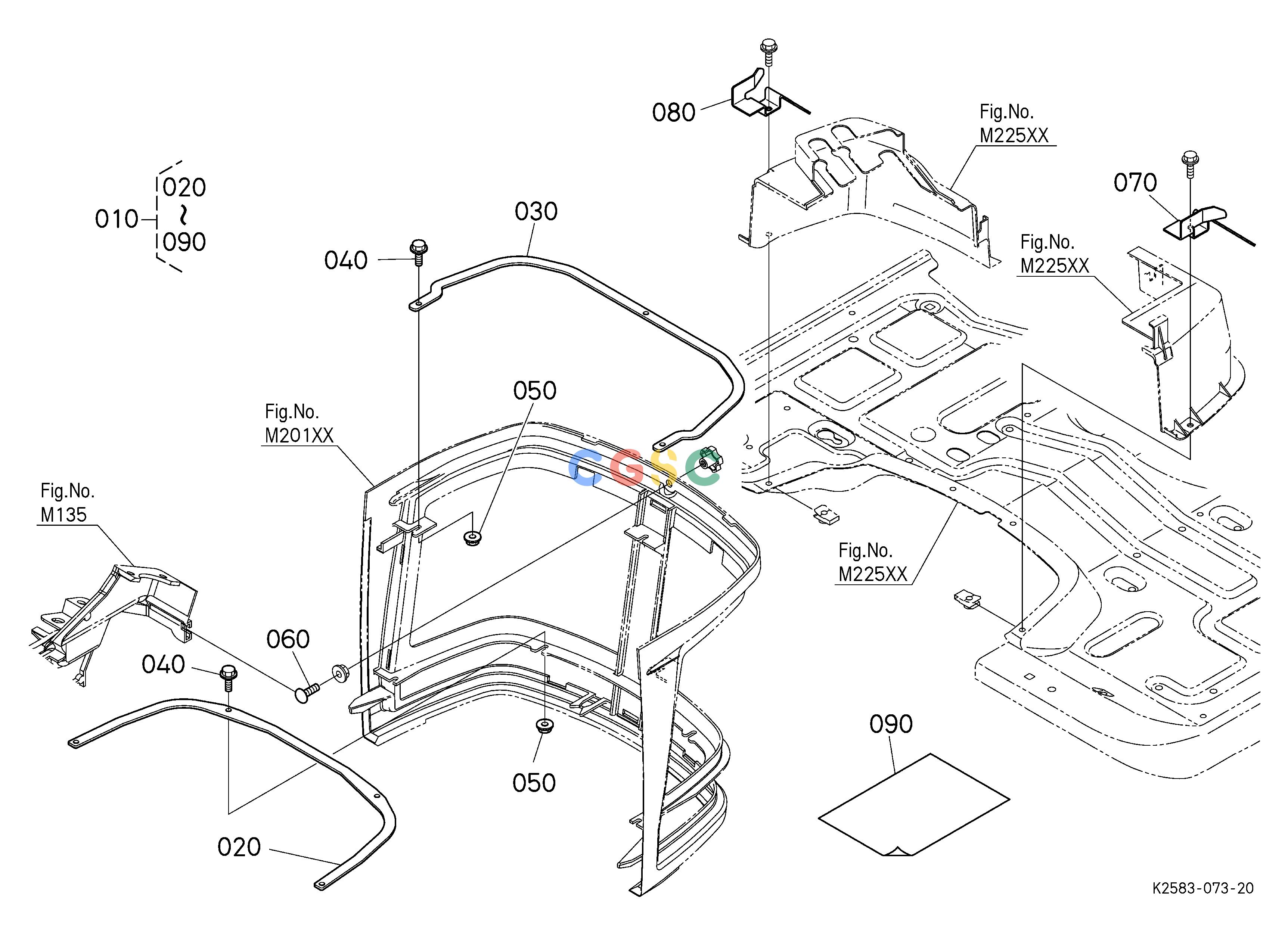

久保田零件查询U93800 LOWERPANEL PLATE KIT [OPTION] ## S.No.<=67650 OPTIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258195780
|
[1] |
KIT PLATE
|
0.0000(lbs); 0.000
|
| 020. |
K265157920
|
[1] |
PLATE, PANEL UNDER
|
0.0000(lbs); 0.000
|
| 030. |
K265157930
|
[1] |
PLATE, PANEL UNDER
|
0.0000(lbs); 0.000
|
| 040. |
0175450614
|
[7] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
0275150060
|
[7] |
NUT, FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
K265157170
|
[1] |
BOLT,SHORT SQU.NECK
|
0.0352(lbs); 0.016
|
| 070. |
K265157940
|
[1] |
PLATE,COVER LH
|
0.0000(lbs); 0.000
|
| 080. |
K265157950
|
[1] |
PLATE,COVER RH
|
0.0000(lbs); 0.000
|
| 090. |
K258195790
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
