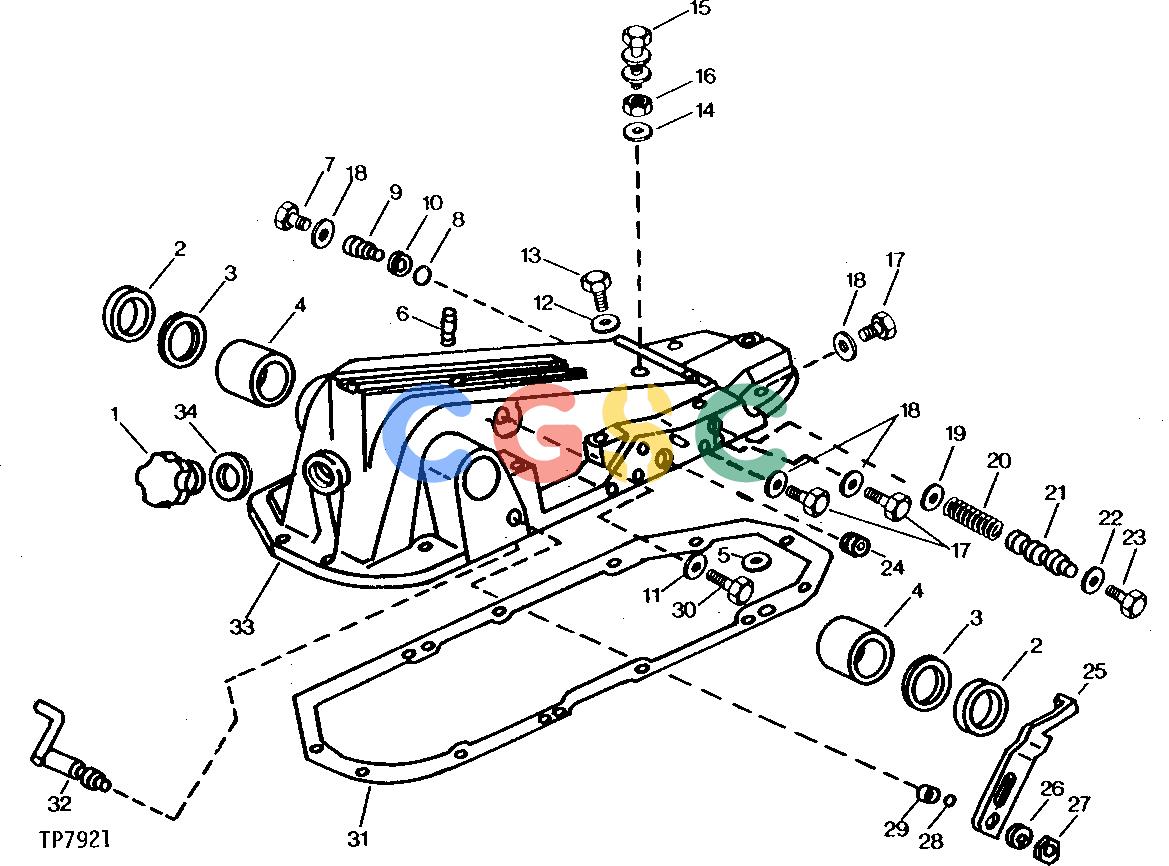

约翰迪尔零件查询300B - BACKHOE, LOADER ROCKSHAFT HOUSING [01I07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 409 次

Pos.	Part No	Qty	Parts name	Comments
1.	L29872	[1]	Plug	(SUB FOR T21563)
2.	T21615	[2]	Round Retainer
3.	R26863	[2]	O-Ring
3.	T26904	[2]	O-Ring
4.	L62405	[2]	Bushing	(SUB FOR T22474)
5.	T17882	[1]	Washer
6.	T21630	[1]	Pin
7.	R27218	[1]	Fitting Plug
8.	R26448	[1]	O-Ring
9.	T21638	[1]	Adapter Fitting	REMOTE CYLINDER OUTLET
10.	F1791R	[1]	Washer
11.	R26906	[1]	O-Ring	(USED WITHOUT SELECTIVE CONTROL VALVE)
12.	T16911	[AR]	Shim
13.	AT85153	[1]	Switch	(SUB FOR R36265, AR85323 AND AR89691) (SUB RE38390)
13.	RE38390	[1]	Switch
14.	R26448	[1]	O-Ring
15.	T22471	[1]	Screw	9/16"
16.	14H888	[1]	Nut	9/16"
17.	R27216	[3]	Drain Plug	(SUB FOR R31631)
18.	R26287	[3]	O-Ring
19.	24H1283	[1]	Washer	7/32" X 1/2" X 0.049"
20.	T22968	[1]	Spring
21.	R26460	[1]	Control Valve
22.	R39112	[1]	Fitting
23.	R26375	[1]	O-Ring
24.	15H562	[1]	Pipe Plug	1"
25.	T22465	[1]	Lever
26.	T22876	[1]	Washer
27.	14H732	[1]	Nut	3/8"
28.	F3353R	[1]	O-Ring
29.	T21631	[1]	Bushing
30.	R27474	[1]	Drain Plug	(USED WITHOUT SELECTIVE CONTROL VALVE)
31.	T21641	[1]	Gasket
32.	AL28227	[1]	Lever	(SUB FOR AT19839)
33.	AR77179	[1]	Housing	(MARKED R62595) (WITH PIN, BUSHING, AND STEEL BALL) (SUB FOR AT20881) (MARKED T21470) (SUB AR104660, R27218 AND R26448)
33.	AR104660	[1]	Housing	(MARKED R76702) (WITH PIN, BUSHING AND STEEL BALL) (SUB FOR AR83400)
34.	T21564	[1]	Washer
