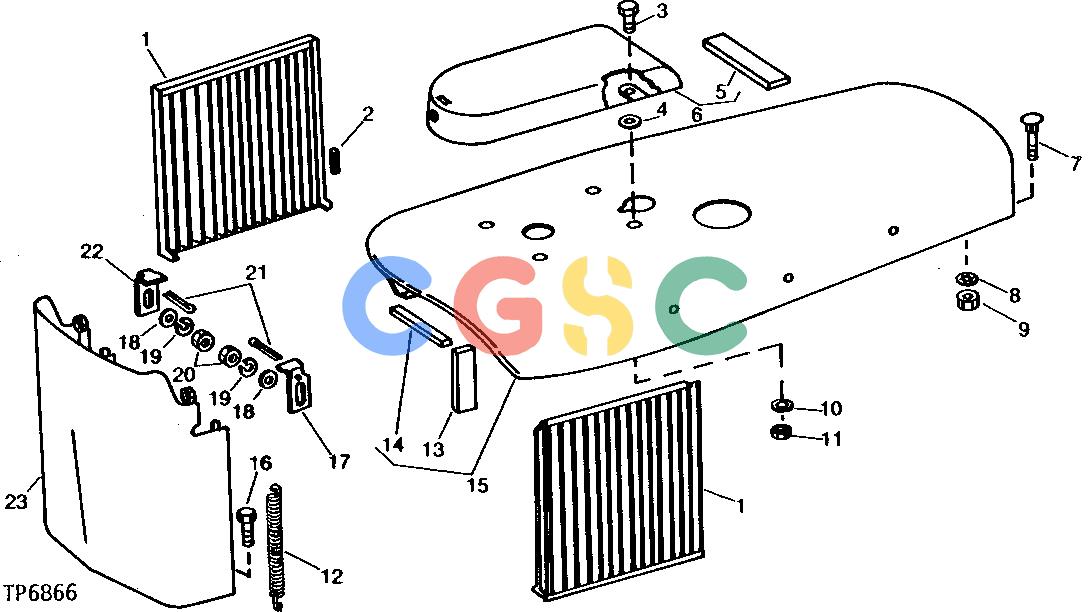

约翰迪尔零件查询300B - BACKHOE, LOADER HOOD AND GRILLE [02A23]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AR72950
|
[2] |
Grille
|
|
| 2. |
34H340
|
[4] |
Spring Pin
|
|
| 3. |
19H3467
|
[4] |
Screw
|
|
| 4. |
24H1136
|
[4] |
Washer
|
|
| 5. |
T27098
|
[1] |
Isolator
|
|
| 6. |
AT69038
|
[1] |
Shield
|
|
| 7. |
03H1765
|
[2] |
Bolt
|
|
| 8. |
12H304
|
[2] |
Lock Washer
|
|
| 9. |
14H732
|
[2] |
Nut
|
|
| 10. |
24H1136
|
[4] |
Washer
|
|
| 11. |
T16464
|
[4] |
Lock Nut
|
|
| 12. |
R26858
|
[2] |
Spring
|
|
| 13. |
T21490
|
[2] |
Pad
|
|
| 14. |
T21491
|
[2] |
Isolator
|
|
| 15. |
AT36968
|
[1] |
Hood
|
|
| 15. |
AT28446
|
[1] |
Hood
|
|
| 16. |
19H3385
|
[8] |
Cap Screw
|
|
| 17. |
R59519
|
[1] |
Latch
|
|
| 18. |
24H1302
|
[2] |
Washer
|
|
| 19. |
12H304
|
[2] |
Lock Washer
|
|
| 20. |
14H812
|
[2] |
Nut
|
|
| 21. |
11M7012
|
[2] |
Cotter Pin
|
|
| 22. |
R59519
|
[1] |
Latch
|
|
| 23. |
AT36272
|
[1] |
Plate
|
|
