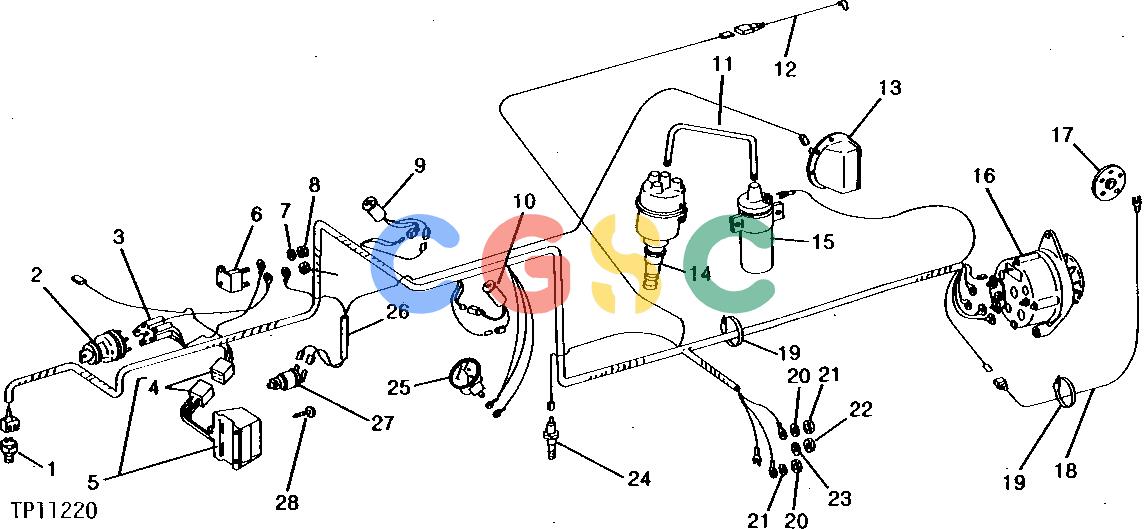

约翰迪尔零件查询300B - BACKHOE, LOADER ELECTRICAL WIRING SYSTEM [02B23]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT85153
|
[1] |
Switch
|
|
| 1. |
RE38390
|
[1] |
Switch
|
|
| 2. |
AR58126
|
[1] |
Rotary Switch
|
|
| 3. |
AR51338
|
[1] |
Wiring Harness
|
|
| 3. |
AR51338
|
[1] |
Wiring Harness
|
|
| 4. |
T24166
|
[1] |
Electrical Connector Assy
|
|
| 5. |
AR77485
|
[1] |
Voltage Regulator
|
|
| 6. |
AR28403
|
[1] |
Circuit Breaker
|
|
| 7. |
12H295
|
[2] |
Lock Washer
|
|
| 8. |
14H631
|
[4] |
Nut
|
|
| 9. |
AR65446
|
[1] |
Lamp
|
|
| 10. |
AR65447
|
[1] |
Indicator Light
|
|
| 11. |
........
|
[1] |
Wiring Lead
|
|
| 12. |
R48128
|
[1] |
Wiring Lead
|
|
| 13. |
AT39043
|
[1] |
High Note Horn
|
|
| 14. |
AT29553
|
[1] |
Ignition Distributor
|
|
| 15. |
AT14385
|
[1] |
Electrical Coil
|
|
| 16. |
AR38458
|
[1] |
Alternator
|
|
| 16. |
TY1427
|
[1] |
Alternator
|
|
| 17. |
AT20912
|
[1] |
Sender
|
|
| 18. |
........
|
[1] |
Wiring Lead
|
|
| 19. |
R44302
|
[6] |
Tie Band
|
|
| 20. |
14H605
|
[1] |
Nut
|
|
| 21. |
T19603
|
[1] |
Lock Washer
|
|
| 22. |
14H732
|
[1] |
Nut
|
|
| 23. |
12H304
|
[1] |
Lock Washer
|
|
| 24. |
AT85174
|
[1] |
Switch
|
|
| 25. |
AT149002
|
[1] |
Kit
|
|
| 25. |
12M7063
|
[2] |
Lock Washer
|
|
| 25. |
14M7100
|
[2] |
Nut
|
|
| 26. |
T21884
|
[1] |
Wiring Harness
|
|
| 27. |
AR20235
|
[1] |
Switch
|
|
| 28. |
37H94
|
[3] |
Screw
|
|
