现代零件查询20/2/30LC-7 HEAD GUARD SUB ASSY(OLD)EPC Hyundai _现代Hyundai_工程机械

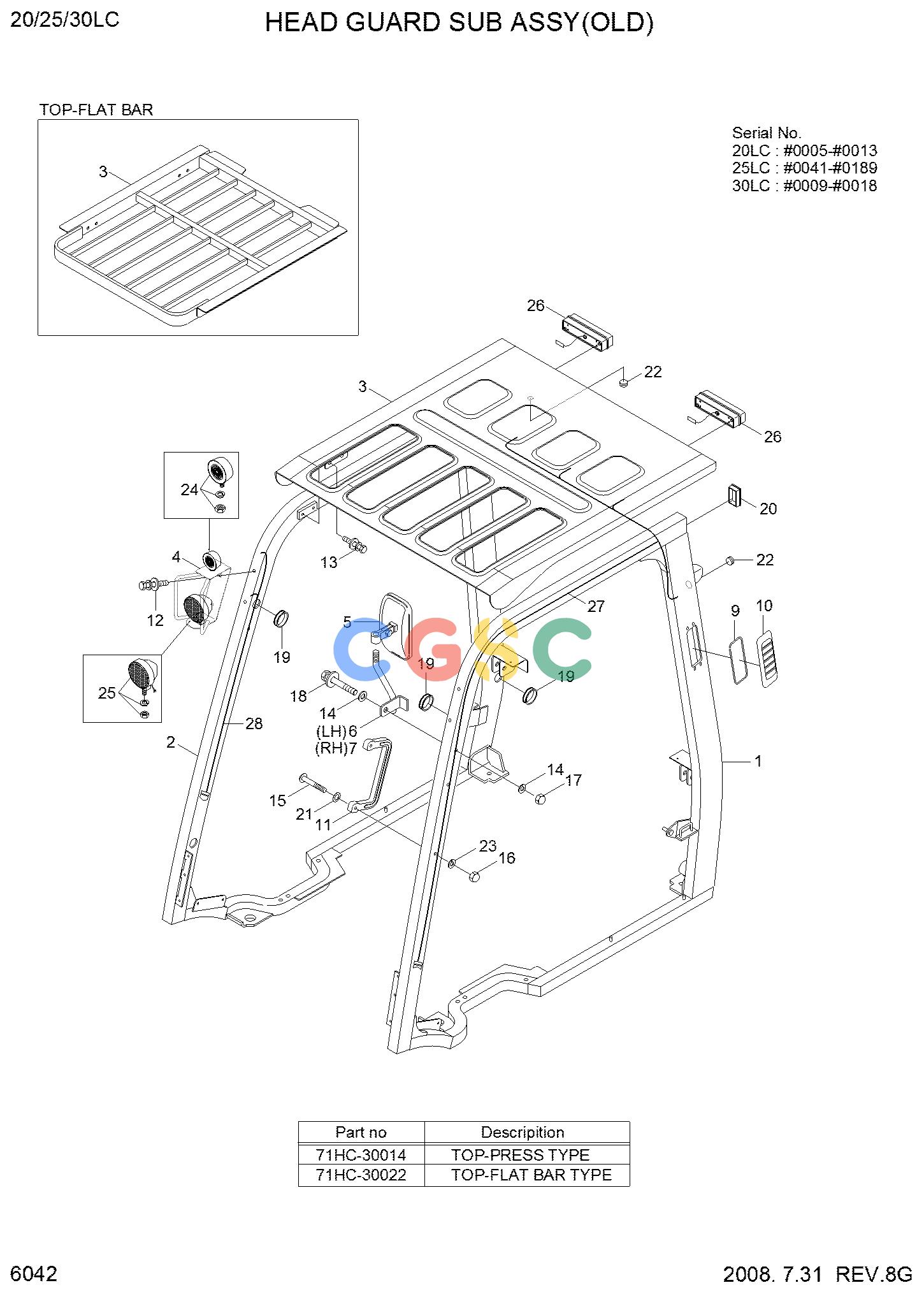

现代零件查询20/2/30LC-7 HEAD GUARD SUB ASSY(OLD)EPC Hyundai

广数供应链运营团队, 16 02月, 2025，浏览： 988 次

Pos.	Part No	Qty	Parts name	Comments
.	71HC-30013	[1]	HEAD GUARD SUB ASSY	20LC,SEE ILLUST
.	71HC-30014	[1]	HEAD GUARD SUB ASSY	20LC,SEE ILLUST
.	71HC-30013	[1]	HEAD GUARD SUB ASSY	25LC,SEE ILLUST
.	71HC-30014	[1]	HEAD GUARD SUB ASSY	25LC,SEE ILLUST
.	71HC-30013	[1]	HEAD GUARD SUB ASSY	30LC,SEE ILLUST
.	71HC-30014	[1]	HEAD GUARD SUB ASSY	30LC,SEE ILLUST
1.	71HC-31002	[1]	STAY WA-LH	20LC
1.	71HC-31003	[1]	STAY WA-LH	20LC
1.	71HC-31002	[1]	STAY WA-LH	25LC
1.	71HC-31003	[1]	STAY WA-LH	25LC
1.	71HC-31002	[1]	STAY WA-LH	30LC
1.	71HC-31003	[1]	STAY WA-LH	30LC
2.	71HC-32001	[1]	STAY WA-RH	20LC
2.	71HC-32002	[1]	STAY WA-RH	20LC
2.	71HC-32001	[1]	STAY WA-RH	25LC
2.	71HC-32002	[1]	STAY WA-RH	25LC
2.	71HC-32001	[1]	STAY WA-RH	30LC
2.	71HC-32002	[1]	STAY WA-RH	30LC
3.	71HC-33002	[1]	OHG WA-TOP	TOP-PRESS TYPE
4.	71HA-34000	[2]	PROTECTOR-LAMP
5.	71FG-30220	[2]	MIRROR-BACK
6.	71FG-30360	[1]	BRACKET-MIRROR,LH
7.	71FG-30370	[1]	BRACKET-MIRROR,RH
9.	71HF-31240	[1]	PAD-RUBBER
10.	51FA-90040	[1]	COVER-AIR INTAKE
11.	71FH-30050	[1]	GRIP
12.	S035-082026	[4]	BOLT-W/WASHER
13.	S035-123036	[8]	BOLT-W/WASHER
14.	S403-10200B	[4]	WASHER-PLAIN
15.	S179-080656	[2]	SCREW-SOCKET RD HD
16.	S295-080006	[2]	CAP NUT-DOMED
17.	S295-100006	[2]	NUT-DOMED CAP
18.	S037-106056	[2]	BOLT-W/WASHER
19.	S880-132040	[3]	GROMMET
20.	71FY-31031	[2]	CAP-RUBBER
21.	S403-08200B	[2]	WASHER-PLAIN
22.	S681-190400	[2]	GROMMET
23.	S411-080006	[2]	WASHER-SPRING
24.	F12840020	[2]	LAMP-FLASHER
25.	F12840010	[2]	LAMP SUB ASSY-WORK
26.	21FH-77020	[2]	LAMP-COMBINATION
27.	21HA-10041	[1]	HARNESS-HEADGUARD
28.	21FG-10360	[1]	HARNESS(R/L)-SUPPORT
.	71HC-30021	[1]	HEAD GUARD SUB ASSY	20LC,SEE ILLUST
.	71HC-30022	[1]	HEAD GUARD SUB ASSY	20LC,SEE ILLUST
.	71HC-30021	[1]	HEAD GUARD SUB ASSY	25LC,SEE ILLUST
.	71HC-30022	[1]	HEAD GUARD SUB ASSY	25LC,SEE ILLUST
.	71HC-30021	[1]	HEAD GUARD SUB ASSY	30LC,SEE ILLUST
.	71HC-30022	[1]	HEAD GUARD SUB ASSY	30LC,SEE ILLUST
1.	71HC-31002	[1]	STAY WA-LH	20LC
1.	71HC-31003	[1]	STAY WA-LH	20LC
1.	71HC-31002	[1]	STAY WA-LH	25LC
1.	71HC-31003	[1]	STAY WA-LH	25LC
1.	71HC-31002	[1]	STAY WA-LH	30LC
1.	71HC-31003	[1]	STAY WA-LH	30LC
2.	71HC-32001	[1]	STAY WA-RH	20LC
2.	71HC-32002	[1]	STAY WA-RH	25LC
2.	71HC-32001	[1]	STAY WA-RH	30LC
2.	71HC-32002	[1]	STAY WA-RH	20LC
2.	71HC-32001	[1]	STAY WA-RH	25LC
2.	71HC-32002	[1]	STAY WA-RH	30LC
3.	71HC-40000	[1]	OHG WA-TOP	TOP-FLAT BAR
4.	71HA-34000	[2]	PROTECTOR-LAMP
5.	71FG-30220	[2]	MIRROR-BACK
6.	71FG-30360	[1]	BRACKET-MIRROR,LH
7.	71FG-30370	[1]	BRACKET-MIRROR,RH
9.	71HF-31240	[1]	PAD-RUBBER
10.	51FA-90040	[1]	COVER-AIR INTAKE
11.	71FH-30050	[1]	GRIP
12.	S035-082026	[4]	BOLT-W/WASHER
13.	S035-123036	[8]	BOLT-W/WASHER
14.	S403-10200B	[4]	WASHER-PLAIN
15.	S179-080656	[2]	SCREW-SOCKET RD HD
16.	S295-080006	[2]	CAP NUT-DOMED
17.	S295-100006	[2]	NUT-DOMED CAP
18.	S037-106056	[2]	BOLT-W/WASHER
19.	S880-132040	[3]	GROMMET
20.	71FY-31031	[2]	CAP-RUBBER
21.	S403-08200B	[2]	WASHER-PLAIN
22.	S681-190400	[2]	GROMMET
23.	S411-080006	[2]	WASHER-SPRING
24.	F12840020	[2]	LAMP-FLASHER
25.	F12840010	[2]	LAMP SUB ASSY-WORK
26.	21FH-77020	[2]	LAMP-COMBINATION
27.	21HA-10041	[1]	HARNESS-HEADGUARD
28.	21FG-10360	[1]	HARNESS(R/L)-SUPPORT
