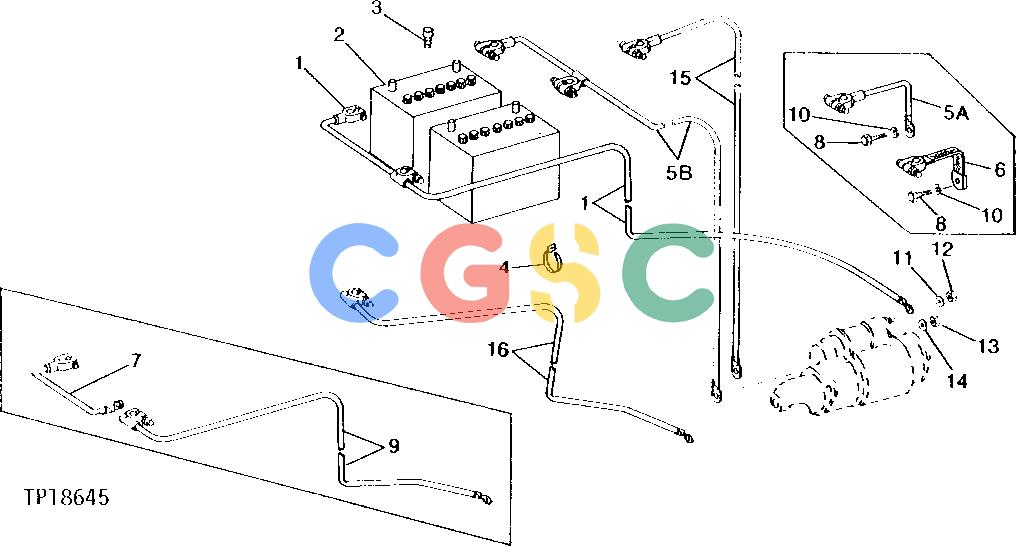

约翰迪尔零件查询300B - BACKHOE, LOADER BATTERY CABLES AND STARTING MOTOR [02C06]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE14512
|
[1] |
Battery Cable
|
|
| 2. |
AT29158
|
[1] |
Dry Charged Battery
|
|
| 2. |
TY21764
|
[1] |
Dry Charged Battery
|
|
| 3. |
AR61868
|
[12] |
Cap
|
|
| 4. |
R44302
|
[6] |
Tie Band
|
|
| 5A. |
AR67453
|
[1] |
Battery Cable
|
|
| 5B. |
RE14513
|
[1] |
Battery Cable
|
|
| 6. |
AT18702
|
[1] |
Ground Cable
|
|
| 7. |
T21889
|
[1] |
Battery Cable
|
|
| 8. |
19H2021
|
[2] |
Cap Screw
|
|
| 9. |
AR103525
|
[1] |
Battery Cable
|
|
| 10. |
12H304
|
[2] |
Lock Washer
|
|
| 11. |
12H304
|
[1] |
Lock Washer
|
|
| 12. |
14H732
|
[1] |
Nut
|
|
| 13. |
14H605
|
[1] |
Nut
|
|
| 14. |
12H315
|
[1] |
Lock Washer
|
|
| 15. |
AT14764
|
[1] |
Battery Cable
|
|
| 16. |
AR103525
|
[1] |
Battery Cable
|
|
