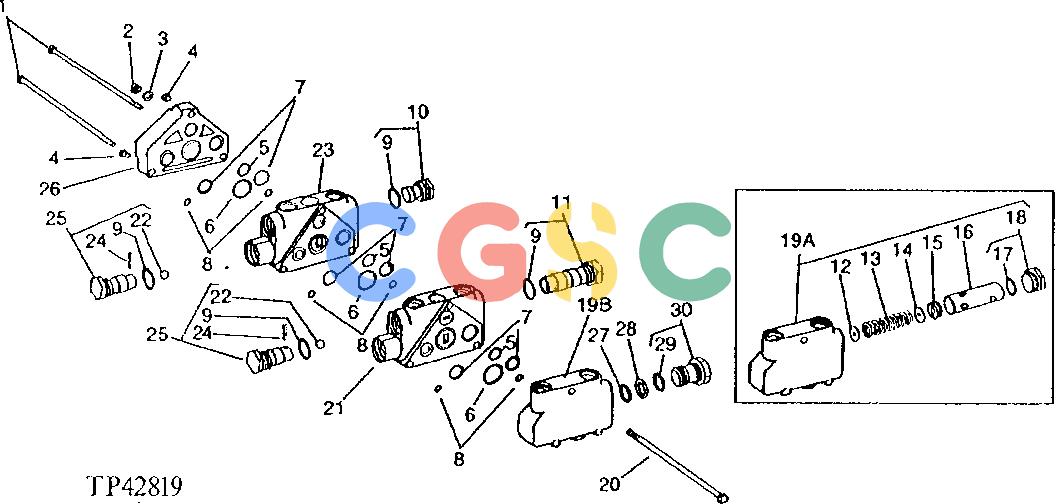

Pos.	Part No	Qty	Parts name	Comments
1.	U14394	[2]	Cap Screw	3/8" X 5-1/4"
2.	14H807	[1]	Nut	7/16"
3.	12H293	[1]	Lock Washer	7/16"
4.	U13946	[2]	Washer
5.	U15192	[3]	O-Ring	(B) 1/16" X 7/8"
6.	U15415	[3]	O-Ring	(B) 1/16" X 1-3/8"
7.	U11326	[6]	O-Ring	(B) 1/16" X 1-1/8"
8.	P51212	[6]	O-Ring	(B) 1/16" X 1-7/16"
9.	32240	[4]	O-Ring	3/32" X 7/8"
10.	U11427	[1]	Plug
11.	AU40752	[1]	Pressure Relief Valve	18 961 KPA (190 BAR) 1275 PSI
12.	U41518	[AR]	Shim
13.	U41520	[1]	Spring
14.	U41519	[1]	Orifice
15.	U43993	[1]	Orifice
16.	........	[1]	Spool	(SUB AU42552)
17.	R31674	[1]	O-Ring
18.	AU40993	[1]	Fitting
19A.	AU42552	[1]	Port Plate
19B.	U15537	[1]	Port Plate
20.	U15564	[1]	Bolt
21.	AU40988	[1]	Spool Valve	FOUR WAY REGENERATIVE
22.	U11498	[2]	Ball	NYLON
23.	AU40848	[1]	Spool Valve	FOUR WAY FLOAT
24.	34H264	[2]	Spring Pin	5/32" X 7/8"
25.	AU10997	[2]	Check Valve
26.	U43308	[1]	End Plate
27.	P47908	[1]	O-Ring
28.	U40727	[1]	Back-Up Ring
29.	32240	[1]	O-Ring
30.	U11427	[1]	Plug
...	AU42150	[1]	Valve	TWO SECTION, (SUB AT29662 AND AT53446, THIS APPLICATION)
...	AT59140	[1]	Control Valve	CLOSED CENTER CONTROL, REMANUFACTURED, (SUB AT29662 AND AT53446, THIS APPLICATION)
...	........	[1]	Control Valve	(SUB AT29662 AND AT53446, THIS APPLICATION) (SUB FOR AT44754)
...	AU40927	[1]	Seal Kit	REPAIR FOR BETWEEN SECTIONS
