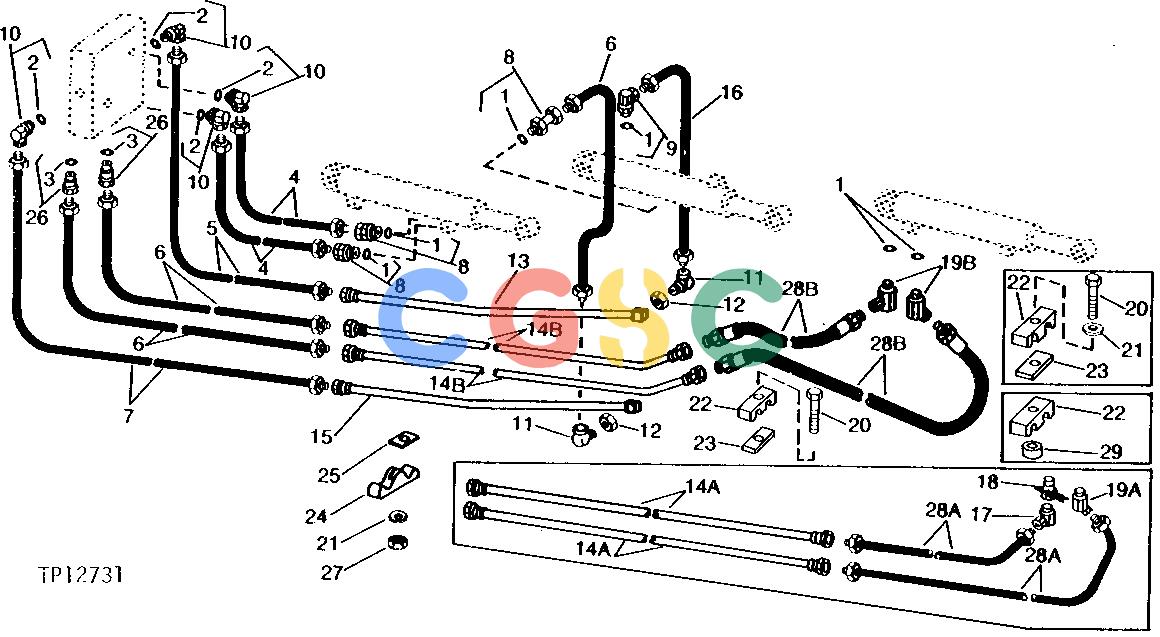

约翰迪尔零件查询300B - BACKHOE, LOADER MANIFOLD TO BOOM, CROWD AND BUCKET CYLINDERS [02H02]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 197 次

Pos.	Part No	Qty	Parts name	Comments
1.	R26906	[5]	O-Ring
2.	R26375	[4]	O-Ring	(SUB FOR U10778)
3.	R26375	[2]	O-Ring
4.	AU42135	[2]	Hydraulic Hose - Fabricate	MANIFOLD TO BOOM CYLINDER 1 422 MM (1/2" X 56") LONG
5.	AT74728	[1]	Hydraulic Hose - Fabricate	MANIFOLD TO L.H. CROWD TUBE 1 143 MM (1/2" X 45") LONG, (SUB FOR AW11542, THIS APPLICATION)
6.	AU10810	[3]	Hydraulic Hose - Fabricate	MANIFOLD TO BUCKET TUBE 838 MM (1/2" X 33") LONG
7.	AU10807	[1]	Hydraulic Hose - Fabricate	MANIFOLD TO R.H. CROWD TUBE 1 067 MM (1/2" X 42")
8.	AU11753	[3]	Union Fitting	STRAIGHT
9.	AU11752	[1]	Fitting	90°
10.	AU11849	[4]	Adapter Fitting	90°
11.	U16163	[2]	Elbow Fitting	90°
12.	14H873	[2]	Nut	1-1/4"
13.	AU42283	[1]	Tube	CROWD CYLINDER, L.H.
14A.	AU42090	[2]	Oil Line	BUCKET CYLINDER, (USE WITH AT52068) (BOOM)
14B.	AT65208	[2]	Oil Line	BUCKET CYLINDER, (USE WITH AT65204) (BOOM)
15.	AU42282	[1]	Tube	CROWD CYLINDER, R.H.
16.	AU11603	[1]	Hydraulic Hose - Fabricate	CROWD CYLINDER 711 MM (1/2" X 28") LONG
17.	U11273	[1]	Elbow Fitting	45°, (USE WITH AT52068) (BOOM)
18.	AU12217	[1]	Adapter Fitting	STRAIGHT, (USE WITH AT52068) (BOOM)
19A.	U11009	[1]	Adapter Fitting	45°, (USE WITH AT52068) (BOOM)
19B.	U11009	[2]	Adapter Fitting	45°, (USE WITH AT65204) (BOOM)
20.	19H2633	[1]	Cap Screw	3/8" X 1-1/2"
20.	19H1765	[1]	Cap Screw	3/8" X 1-3/4"
21.	12H304	[3]	Lock Washer	3/8"
21.	12H304	[2]	Lock Washer	3/8"
22.	U40447	[1]	Clamp
22.	U13055	[1]	Clamp	(SUB T38967)
22.	T38967	[1]	Clamp
23.	U10516	[1]	Hose Clamp
23.	T38968	[1]	Spacer
24.	T38967	[2]	Clamp
25.	T38968	[2]	Strap
26.	AH16917	[2]	Adapter Fitting	STRAIGHT
27.	T11234	[2]	Lock Nut
28A.	AU11603	[2]	Hydraulic Hose - Fabricate	711 MM (1/2" X 28") LONG (BOOM) (USE WITH AT52068)
28B.	AU10861	[2]	Hydraulic Hose - Fabricate	863 MM (1/2" X 34") LONG (BOOM) (USE WITH AT65204)
29.	28H2481	[1]	Spacer	(SUB T38967)
