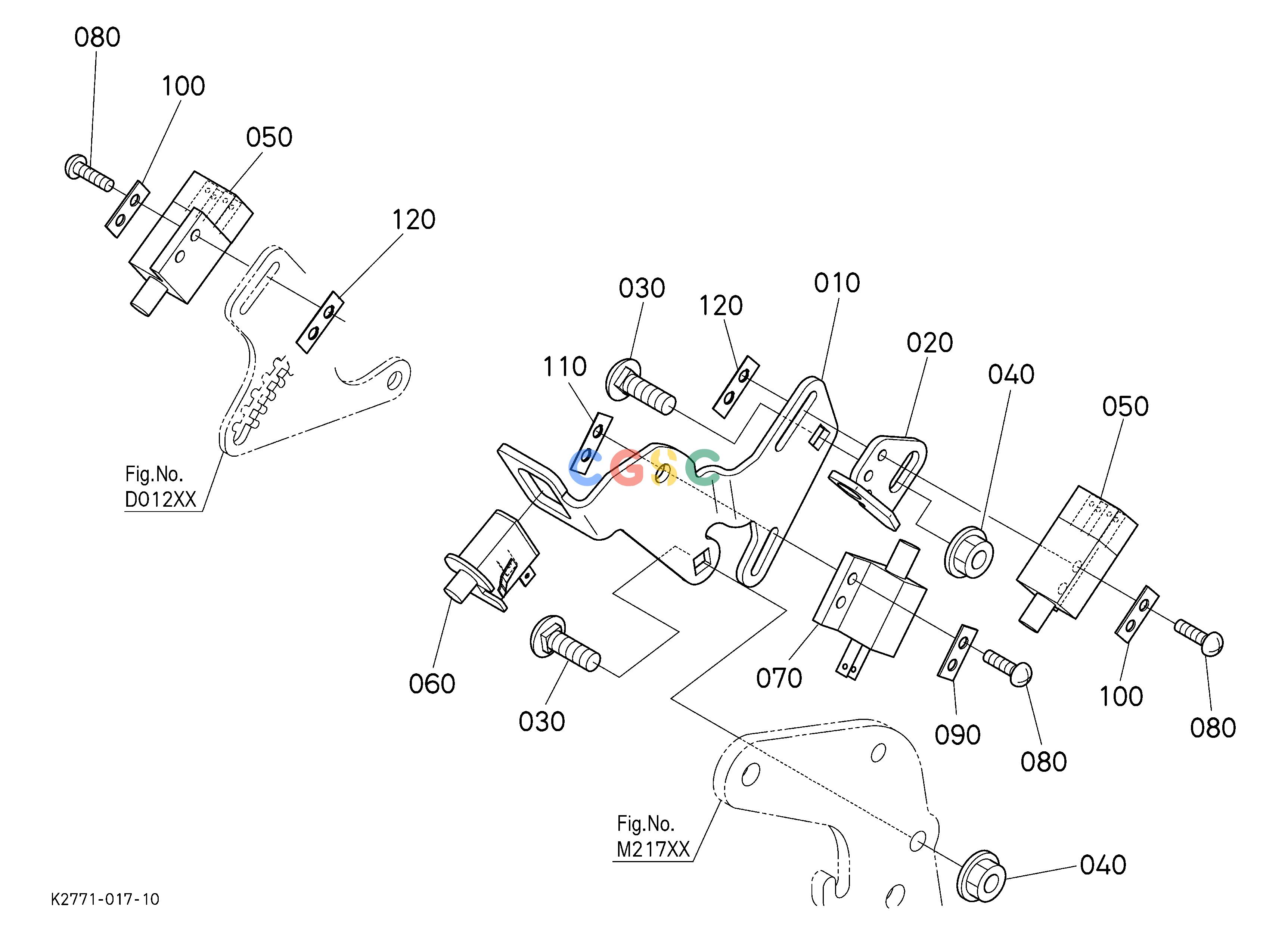

久保田零件查询B21502 SWITCH/SENSOR ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
833 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258142683
|
[1] |
STAY,SWITCH PTO
|
0.0000(lbs); 0.000
|
| 020. |
K258142690
|
[1] |
PLATE,STOPPER SWITCH
|
0.0000(lbs); 0.000
|
| 030. |
K112291320
|
[2] |
BOLT,SHORT SQU. NECK(M8 1.25)
|
0.0220(lbs); 0.010
|
| 040. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
K112262250
|
[2] |
SWITCH(SAFETY)
|
0.0440(lbs); 0.020
|
| 060. |
K112262280
|
[1] |
SWITCH(SEAT)
|
0.0242(lbs); 0.011
|
| 070. |
K256162250
|
[1] |
SWITCH,SAFETY (#6400-54)
|
0.0374(lbs); 0.017
|
| 080. |
0371450520
|
[6] |
SCREW,TAPPING
|
0.0066(lbs); 0.003
|
| 090. |
K256162260
|
[1] |
PLATE, SWITCH
|
0.0022(lbs); 0.001
|
| 100. |
K256162260
|
[2] |
PLATE, SWITCH
|
0.0022(lbs); 0.001
|
| 110. |
K258162260
|
[1] |
PLATE,SWITCH NUT
|
0.0044(lbs); 0.002
|
| 120. |
K258162260
|
[2] |
PLATE,SWITCH NUT
|
0.0044(lbs); 0.002
|
