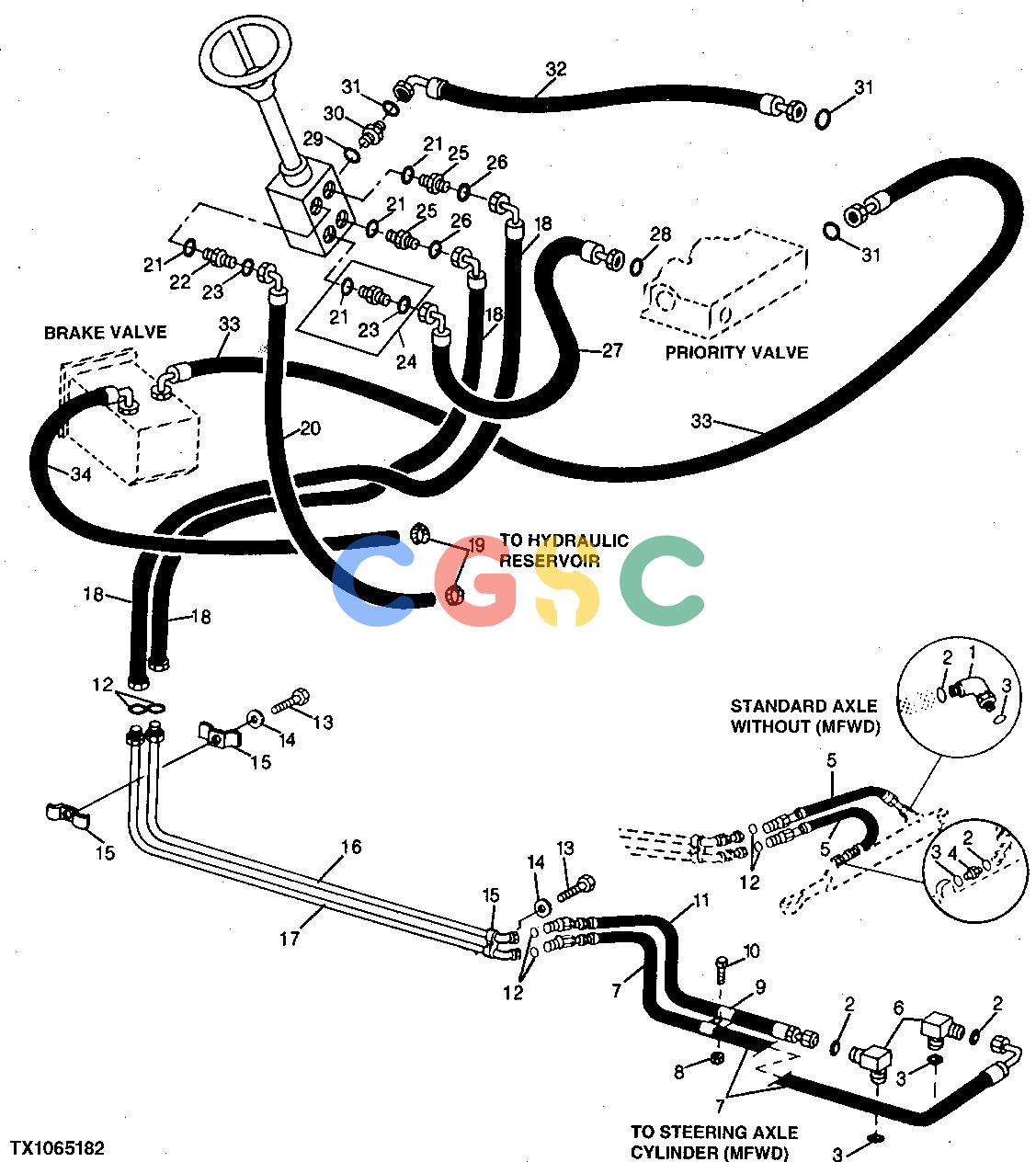

约翰迪尔零件查询300D - BACKHOE, LOADER Steering Hydraulic Hoses And Lines ( - 814526)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
38H1004
|
[1] |
Elbow Fitting
|
|
| 2. |
T77613
|
[2] |
O-Ring
|
|
| 2. |
T77814
|
[2] |
O-Ring
|
|
| 3. |
R26448
|
[2] |
O-Ring
|
|
| 4. |
38H1160
|
[1] |
Adapter Fitting
|
|
| 5. |
AT114474
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 6. |
38H1004
|
[2] |
Elbow Fitting
|
|
| 6. |
38H1004
|
[1] |
Elbow Fitting
|
|
| 6. |
38H1168
|
[1] |
Adapter Fitting
|
|
| 7. |
........
|
[1] |
Hydraulic Hose
|
|
| 7. |
AT167979
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 8. |
14H785
|
[1] |
Nut
|
|
| 8. |
14M7273
|
[1] |
Nut
|
|
| 9. |
R27491
|
[2] |
Clamp
|
|
| 10. |
19H2664
|
[1] |
Cap Screw
|
|
| 10. |
19M7881
|
[1] |
Screw
|
|
| 11. |
AT160374
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 12. |
T77814
|
[4] |
O-Ring
|
|
| 13. |
19M7932
|
[2] |
Cap Screw
|
|
| 14. |
24M7238
|
[2] |
Washer
|
|
| 15. |
R42009
|
[4] |
Clamp
|
|
| 16. |
AT149719
|
[1] |
Oil Line
|
|
| 17. |
AT145247
|
[1] |
Oil Line
|
|
| 18. |
AT100552
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 19. |
TY22462
|
[2] |
Clamp
|
|
| 20. |
AT145273
|
[1] |
Hose
|
|
| 21. |
R26375
|
[4] |
O-Ring
|
|
| 22. |
38H1161
|
[1] |
Adapter Fitting
|
|
| 23. |
T77857
|
[2] |
O-Ring
|
|
| 24. |
AT141527
|
[1] |
Check Valve
|
|
| 24. |
R26375
|
[1] |
O-Ring
|
|
| 24. |
T77857
|
[1] |
O-Ring
|
|
| 25. |
38H1171
|
[2] |
Adapter Fitting
|
|
| 26. |
T77613
|
[2] |
O-Ring
|
|
| 27. |
AT180193
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 28. |
T77857
|
[1] |
O-Ring
|
|
| 29. |
R28782
|
[1] |
O-Ring
|
|
| 30. |
38H1159
|
[1] |
Adapter Fitting
|
|
| 31. |
T77814
|
[3] |
O-Ring
|
|
| 32. |
AT145137
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 33. |
AT145136
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 34. |
AT145272
|
[1] |
Hydraulic Hose - Fabricate
|
|
