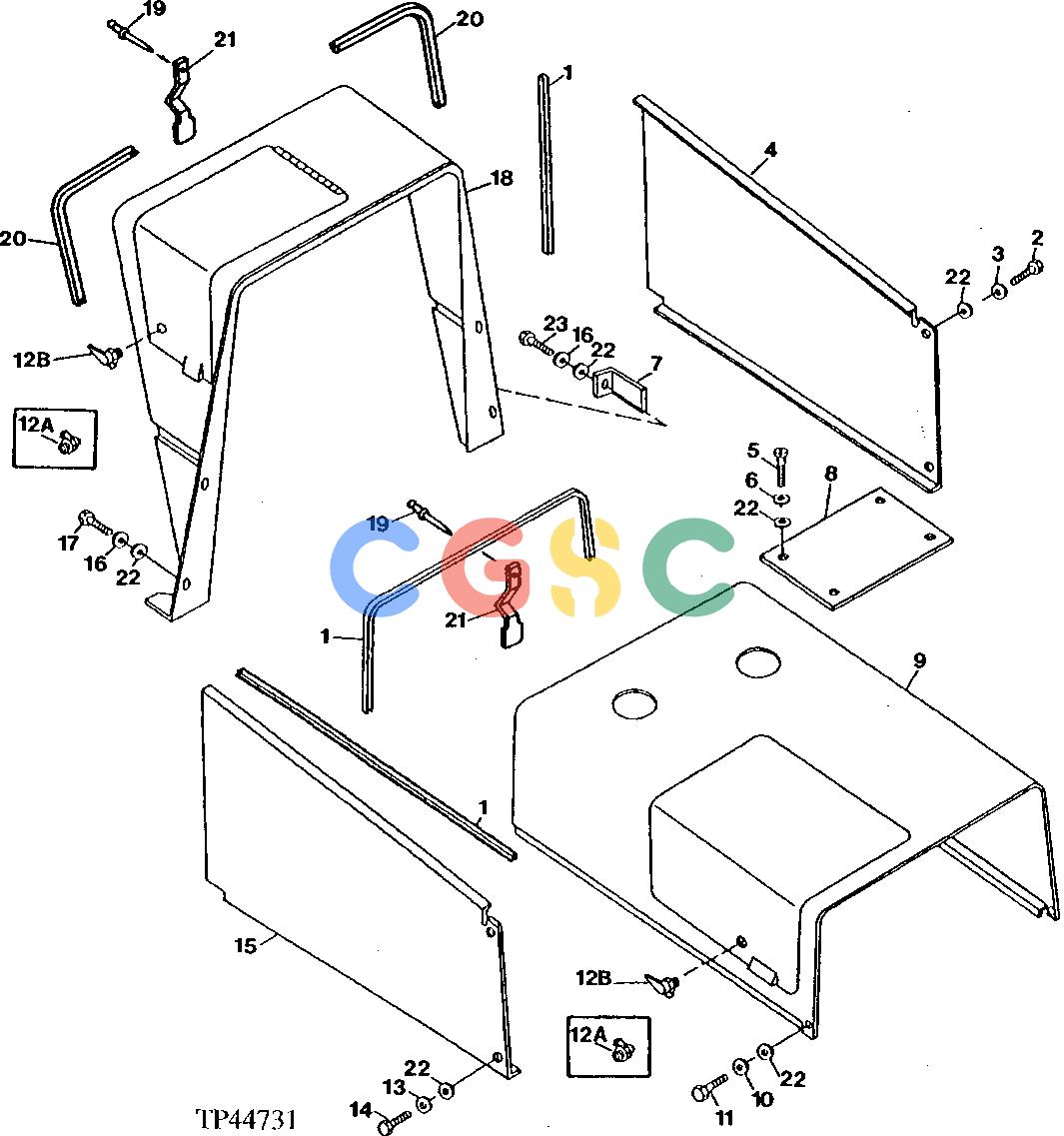

Pos.	Part No	Qty	Parts name	Comments
1.	T61798	[AR]	Isolator	HEX FLANGE
2.	19M7938	[2]	Cap Screw	M10 X 20
3.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
4.	T132974	[1]	Shield	L.H.
5.	19M7402	[4]	Cap Screw	M10 X 25
6.	24M7296	[4]	Washer	10.500 X 30 X 2.500 MM STEEL
7.	T135281	[1]	Bumper	(WITH CAB)
8.	AT141072	[1]	Plate
9.	AT151107	[1]	Hood	(SUB FOR AT140950 ) (SUB AT167082 AND AT171397)(WITH TURBOCHARGER)
9.	AT167082	[1]	Hood	(WITH TURBOCHARGER)
9.	AT151106	[1]	Hood	(SUB FOR AT141161 ) (SUB AT166614 AND AT171397)(WITHOUT TURBOCHARGER)
9.	AT166614	[1]	Hood	(WITHOUT TURBOCHARGER)
10.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
11.	19M7938	[2]	Cap Screw	M10 X 20
12A.	AT151812	[2]	Lock	(SUB FOR AT53010, THIS APPLICATION)
12A.	AT145929	[1]	Key	(SET OF TWO KEYS)
12B.	AT171397	[2]	Latch	(SUB FOR AT166408)
12B.	AT145929	[1]	Key	(SET OF KEYS)
13.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
14.	19M7938	[2]	Cap Screw	M10 X 20
15.	T132973	[1]	Shield	R.H.
16.	24M7296	[AR]	Washer	10.500 X 30 X 2.500 MM STEEL
17.	19M7938	[3]	Cap Screw	M10 X 20 (WITH CAB)
17.	19M7938	[4]	Cap Screw	M10 X 20 (WITH ROPS)
18.	AT141284	[1]	Cover
18.	........	[1]	Cover	(SUB AT166571 AND AT171397)( AT151009 NO LONGER AVAILABLE)
18.	AT166571	[1]	Cover
19.	M82259	[2]	Rivet	(SUB FOR AT38516, AND AT151755THIS APPLICATION)
20.	T142819	[1]	Isolator
21.	T141506	[2]	Spring	DOOR LOCK
22.	T145936	[14]	Washer
23.	19M7402	[1]	Cap Screw	M10 X 25 (WITH CAB)
