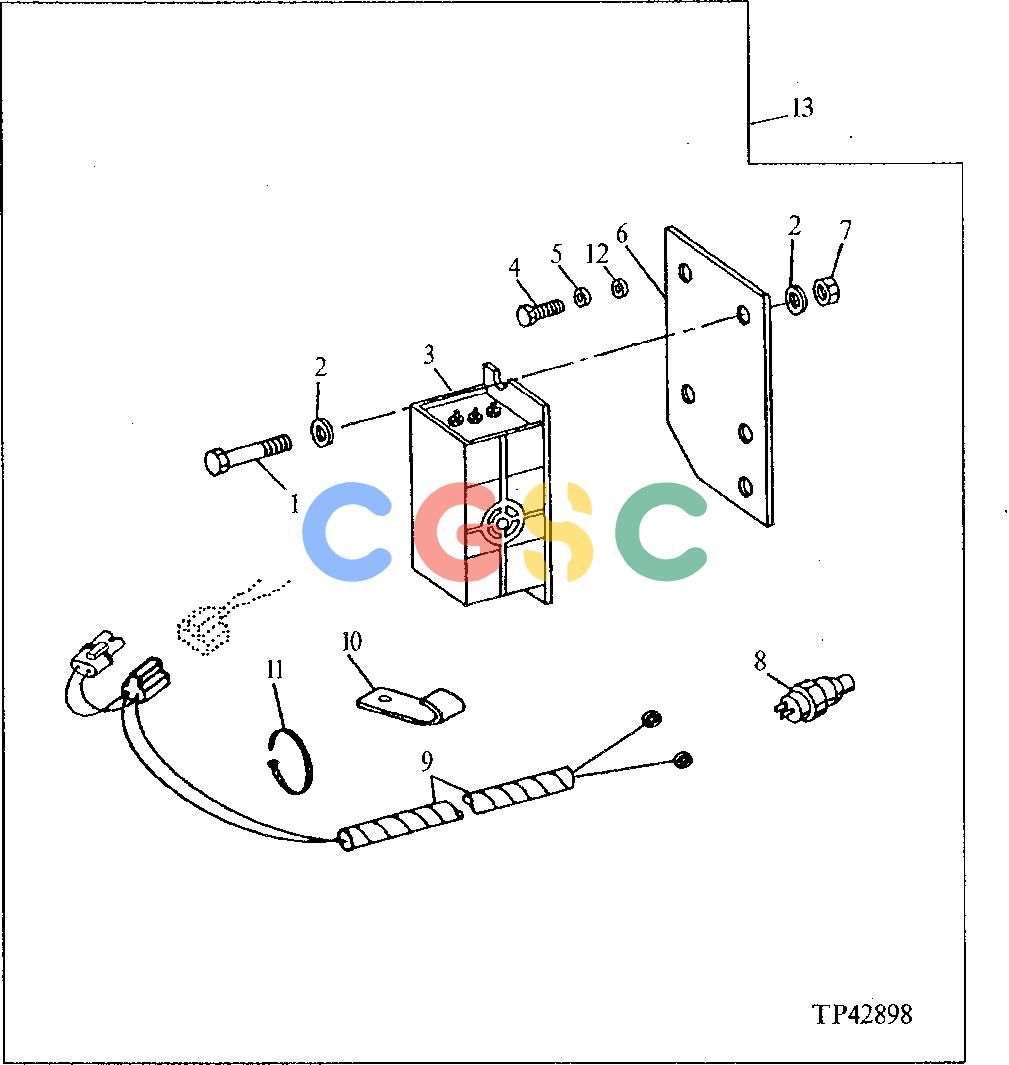

约翰迪尔零件查询300D - BACKHOE, LOADER Back-Up Alarm System ( - 781840)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7881
|
[2] |
Screw
|
|
| 2. |
24M7238
|
[4] |
Washer
|
|
| 3. |
AT120461
|
[1] |
Travel Warning Alarm
|
|
| 4. |
19M7783
|
[2] |
Screw
|
|
| 5. |
24M7239
|
[2] |
Washer
|
|
| 6. |
T129534
|
[1] |
Plate
|
|
| 7. |
14M7166
|
[2] |
Lock Nut
|
|
| 8. |
AL67715
|
[1] |
Switch
|
|
| 8. |
AT151507
|
[1] |
Switch
|
|
| 9. |
AT157012
|
[1] |
Wiring Harness
|
|
| 10. |
T19935
|
[1] |
Clamp
|
|
| 11. |
R44302
|
[1] |
Tie Band
|
|
| 12. |
24H1287
|
[2] |
Washer
|
|
| 13. |
AT100177
|
[1] |
Travel Warning Alarm
|
|
