约翰迪尔零件查询302A - BACKHOE, LOADER ROCKER ARMS AND VALVES [01B13]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 921 次

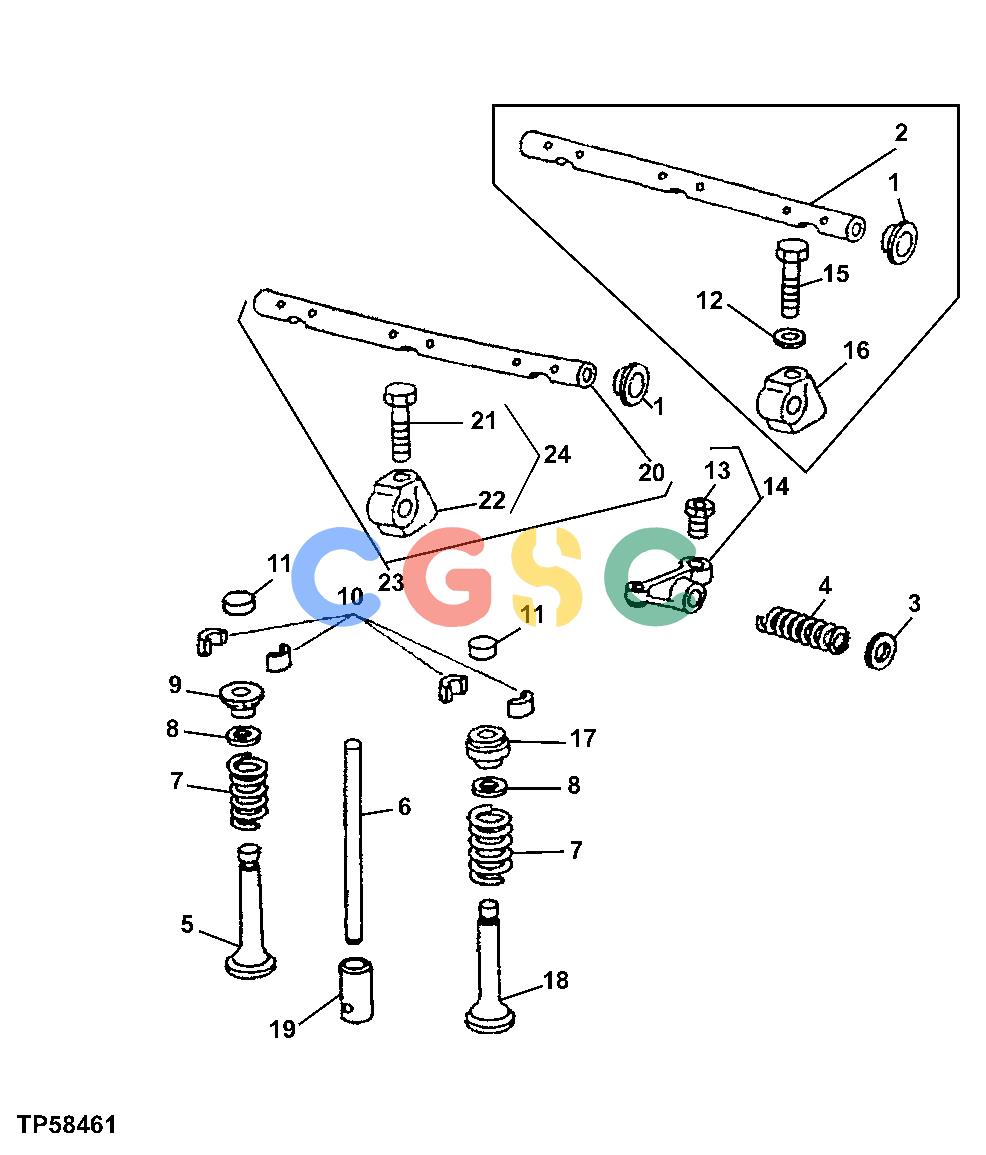

Pos.	Part No	Qty	Parts name	Comments
1.	R54565	[2]	Plug
2.	R54985	[1]	Rocker Arm Shaft	(SUB RE502875) (USE WITH 19H3031 AND T20315)
3.	T20316	[2]	Washer
4.	T20314	[2]	Spring
5.	R79623	[3]	Intake Valve	(DIESEL) (SUB FOR R52251)
5.	R79628	[3]	Intake Valve	0.08 MM (.003") (SUB FOR T23546 AND R57332) OVERSIZE STEM (DIESEL)
5.	R79629	[3]	Intake Valve	0.38 MM (.015") (SUB FOR T23547 AND R57334) OVERSIZE STEM (DIESEL)
5.	........	[3]	Intake Valve	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") (SUB FOR T23548 AND R57336) OVERSIZE STEM (DIESEL)
5.	T25466	[3]	Intake Valve	STANDARD STEM (GASOLINE)
5.	T23540	[3]	Intake Valve	0.08 MM (.003") OVERSIZE STEM (GASOLINE)
5.	T26176	[3]	Intake Valve	0.38 MM (.015") OVERSIZE STEM (GASOLINE)
5.	........	[3]	Intake Valve	0.76 MM (.030") OVERSIZE STEM (GASOLINE) ( T26177 - NO LONGER AVAILABLE)
6.	R82896	[6]	Push Rod	(DIESEL) (SUB FOR T20310)
6.	T22893	[6]	Pin	(GASOLINE)
7.	R26125	[6]	Spring
8.	R87627	[6]	O-Ring	(GASOLINE) (SUB FOR R27976, THIS APPLICATION)
9.	R41412	[3]	Cap	(DIESEL) (SUB FOR T20176)
9.	T20169	[3]	Cap	(GASOLINE)
10.	T20077	[12]	Retainer
11.	T20129	[6]	Cap	(DIESEL)
12.	R42729	[3]	Washer	(SUB FOR T23594)
13.	T32213	[1]	Screw	(SUB RE31973)
14.	RE31973	[6]	Rocker Arm	(SUB FOR AT31250, AR103769 AND RE19031)
15.	19H3031	[3]	Cap Screw
16.	T20315	[3]	Support	(SUB RE502861) (USE WITH 19H3031 AND R54985)
17.	R41412	[3]	Cap	(DIESEL) (SUB FOR T20176)
17.	T20287	[3]	Rotator	(GASOLINE)
18.	R79624	[3]	Exhaust Valve	STANDARD SEM (DIESEL) (SUB FOR R52252)
18.	R79625	[3]	Exhaust Valve	0.08 MM (.003") (SUB FOR T23549 AND R57333) OVERSIZE STEM (DIESEL)
18.	R79626	[3]	Exhaust Valve	0.38 MM (.015") (SUB FOR T23550 AND R57335) OVERSIZE STEM (DIESEL)
18.	........	[3]	Exhaust Valve	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") (SUB FOR T23551 AND R57337) OVERSIZE STEM (DIESEL)
18.	T25467	[3]	Exhaust Valve	STANDARD STEM (GASOLINE)
18.	T26178	[3]	Exhaust Valve	0.08 MM (.003") (SUB FOR T23543) OVERSIZE STEM (GASOLINE)
18.	T26179	[3]	Exhaust Valve	0.38 MM (.015") OVERSIZE STEM (GASOLINE) (SUB FOR T23544)
18.	T26180	[3]	Exhaust Valve	0.76 MM (.030") OVERSIZE STEM (GASOLINE) (SUB FOR T23545)
19.	T20073	[6]	Tappet
20.	R501532	[1]	Shaft
21.	R504813	[AR]	Self-Locking Screw	(SUB FOR R501529)
21.	19H3031	[AR]	Cap Screw	3/8" X 2-1/2"
22.	R123161	[3]	Support
23.	RE502875	[1]	Rocker Arm Shaft
24.	RE502861	[1]	Support
