约翰迪尔零件查询302A - BACKHOE, LOADER CLUTCH HOUSING (WITH REVERSER) [01E08]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 365 次

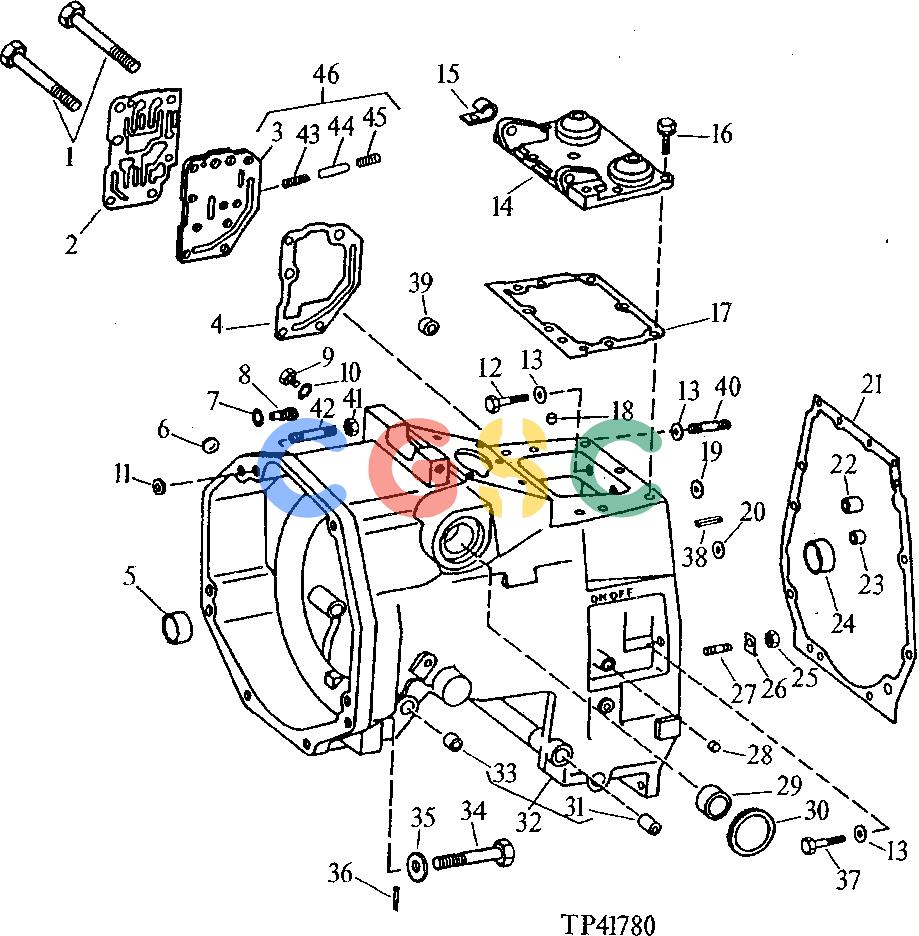

Pos.	Part No	Qty	Parts name	Comments
1.	T27308	[2]	Cap Screw
2.	R99385	[1]	Gasket	(SUB FOR T40170)
2.	R107207	[1]	Gasket	(USE WITH RE50941)
3.	........	[1]	Clutch Plate	( T27772 - NO LONGER AVAILABLE) (SUB RE50941 AND R107207)
4.	T27771	[1]	Gasket
5.	T23211	[1]	Bushing	(A)
6.	30H13	[AR]	Plug	1"
7.	T21827	[1]	Washer
8.	T22898	[1]	Plug
9.	R39112	[1]	Fitting
10.	R26375	[1]	O-Ring
11.	R26919	[1]	Washer
12.	19H2510	[2]	Cap Screw	HS, SAE 8, 1/2" X 1-5/8"
13.	T20168	[5]	Washer
14.	AT23579	[1]	Cover
15.	T19935	[1]	Clamp
16.	T22728	[7]	Screw
16.	T22728	[5]	Screw
17.	T36042	[1]	Gasket
18.	T12083	[1]	Plug	(A)
19.	T22851	[1]	Washer
19.	T68412	[1]	Washer
20.	A4847R	[1]	Washer
21.	R99290	[1]	Gasket	(SUB FOR T21968)
22.	T22584	[1]	Bushing	(A)
23.	T22585	[1]	Bushing	(A)
24.	T23212	[1]	Bushing	(A)
25.	14H812	[4]	Nut	3/8"
26.	R30958	[4]	Lock Plate
27.	C2175R	[4]	Stud	(A)
28.	M4224T	[1]	Plug	(WITHOUT MID PTO)
29.	L1788C	[1]	Bushing	(A)
30.	R1680R	[2]	Plug	(SUB FOR T22569, THIS APPLICATION)
31.	R27567	[1]	Bushing	(A)
32.	AT33619	[1]	Housing	(MARKED T34503) (SUB AT65216) (CONSISTS OF ALL PARTS IDENTIFIED BY (A) (SUB AT65216) (ALSO ORDER (2) T68412)
32.	AT65216	[1]	Housing	(MARKED T67961) (CONSISTS OF ALL PARTS IDENTIFIED BY (A)
33.	R27320	[1]	Bushing	(A)
34.	19H3170	[4]	Cap Screw	5/8" X 4-1/2"
34.	19H3170	[3]	Cap Screw	HS, SAE 8, 5/8" X 4-1/2"
35.	R70268	[4]	Washer	(SUB FOR (4) R42363)
36.	19M7084	[1]	Cap Screw	M8 X 15
37.	19H2735	[1]	Cap Screw	HS, SAE 8, 1/2" X 2"
38.	34H251	[1]	Spring Pin	1/8" X 1"
39.	M1102T	[1]	Plug
40.	19H2644	[2]	Cap Screw	HS, SAE 8, 1/2" X 2-1/2"
41.	14H1039	[1]	Nut	5/8"
42.	L29854	[1]	Rod
43.	R106727	[1]	Spring
44.	R27053	[1]	Needle Roller
45.	15H560	[1]	Pipe Plug
46.	RE50941	[1]	Plate	(SUB FOR T27772, ALSO ORDER R107207)
