约翰迪尔零件查询302A - BACKHOE, LOADER PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H13]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 651 次

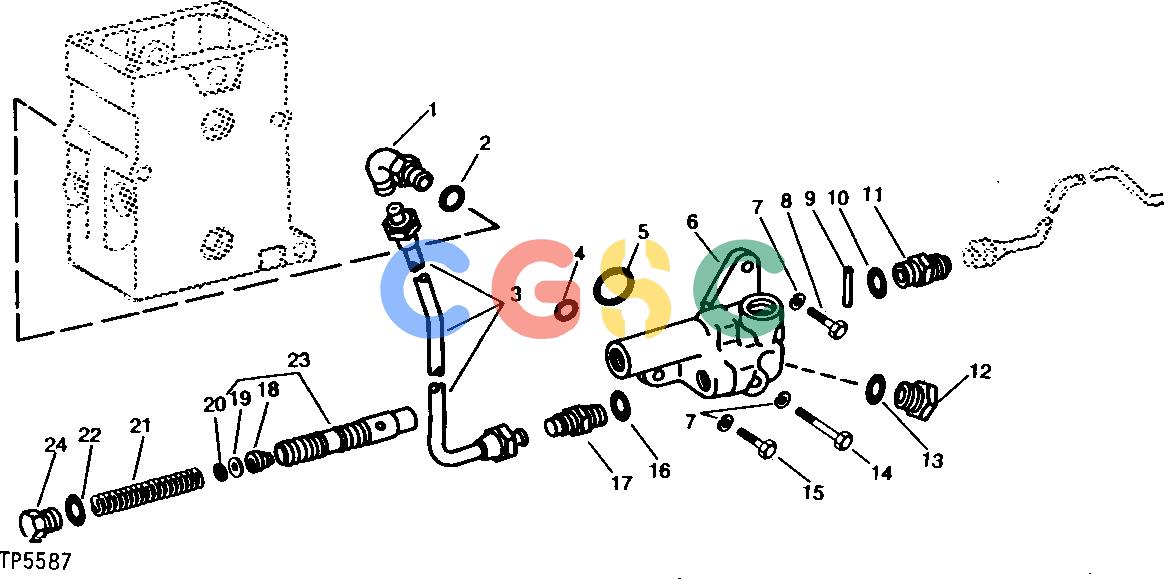

Pos.	Part No	Qty	Parts name	Comments
1.	AT35120	[1]	Elbow Fitting	(D)
2.	R26448	[1]	O-Ring	(D)
3.	AR91029	[1]	Oil Line	(D)
4.	R28776	[1]	O-Ring
5.	R60332	[1]	O-Ring
6.	T120368	[1]	Housing	(SUB FOR R39323)
7.	12H304	[3]	Lock Washer	3/8"
8.	19H2633	[1]	Cap Screw	3/8" X 1-1/2"
9.	R39324	[1]	Dowel Pin
10.	R26906	[1]	O-Ring	(D)
11.	R27270	[1]	Fitting
12.	R27175	[2]	Drain Plug
13.	U12547	[2]	O-Ring	(SUB FOR (2) F3171R)
14.	19H2458	[1]	Cap Screw	3/8" X 3"
15.	19H3483	[1]	Cap Screw	3/8" X 1-1/8"
16.	R26375	[1]	O-Ring	(D)
17.	R27237	[1]	Fitting	(D) (WITH SELECTIVE CONTROL VALVE)
17.	R39112	[1]	Fitting	(WITHOUT SELECTIVE CONTROL VALVE)
18.	R40562	[1]	Aperture
19.	........	[1]	Valve	(SUB AR65882)
20.	R33521	[AR]	Shim	0.76 MM (.030")
21.	R40072	[1]	Spring
22.	R26906	[1]	O-Ring	(D)
23.	AR65882	[1]	Control Valve
24.	R27474	[1]	Drain Plug
24.	R63494	[1]	Fitting
...	AR91861	[1]	Valve	DOUBLE ACTING SINGLE (WITHOUT LEVER LOCK) (USE WITH 5.00 TO 1 FINAL DRIVE RATIO) (SUB FOR AR76093) (INCLUDES (2) AR21837, AR99025, R27237, (2) R39171, R62147, R77420, R20922, T22996, T23069, (2) 14H732, 19H1895, (2) 19H3597 AND 24H1625)
