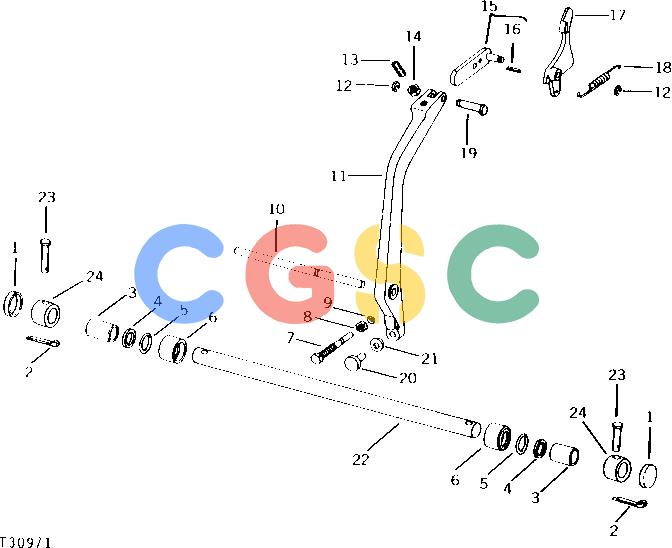

约翰迪尔零件查询302A - BACKHOE, LOADER LOAD CONTROL [01J07]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T22653
|
[2] |
Plug
|
|
| 2. |
11M7082
|
[2] |
Cotter Pin
|
|
| 3. |
T22099
|
[2] |
Bushing
|
|
| 4. |
T22098
|
[2] |
Washer
|
|
| 5. |
A4730R
|
[2] |
O-Ring
|
|
| 6. |
T22097
|
[2] |
Bushing
|
|
| 7. |
T23216
|
[1] |
Cap Screw
|
|
| 7. |
19H2643
|
[1] |
Cap Screw
|
|
| 8. |
14H856
|
[1] |
Nut
|
|
| 9. |
A4365R
|
[1] |
O-Ring
|
|
| 10. |
T21681
|
[1] |
Dowel Pin
|
|
| 11. |
T21487
|
[1] |
Lever
|
|
| 12. |
R72653
|
[2] |
Snap Ring
|
|
| 13. |
T29311
|
[1] |
Set Screw
|
|
| 14. |
14H856
|
[1] |
Nut
|
|
| 15. |
AT19848
|
[1] |
Extension
|
|
| 16. |
34H279
|
[1] |
Spring Pin
|
|
| 17. |
T28551
|
[1] |
Cam Follower
|
|
| 18. |
T21955
|
[1] |
Extension Spring
|
|
| 19. |
T24690
|
[1] |
Pin Fastener
|
|
| 20. |
T21680
|
[1] |
Pin Fastener
|
|
| 21. |
24H1302
|
[1] |
Washer
|
|
| 22. |
L26932
|
[1] |
Pin
|
|
| 23. |
R57619
|
[2] |
Pin Fastener
|
|
| 24. |
R50985
|
[2] |
Sleeve
|
|
