约翰迪尔零件查询302A - BACKHOE, LOADER BACKHOE CROWD CYLINDER (9250 BACKHOE) [02F01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 284 次

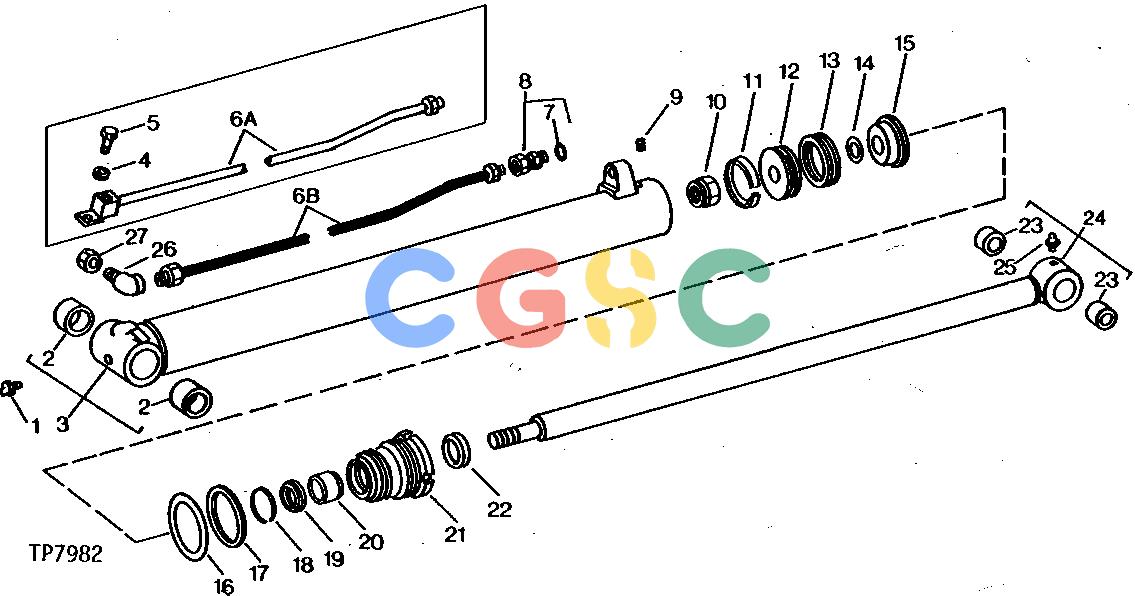

Pos.	Part No	Qty	Parts name	Comments
1.	JD7788	[1]	Lubrication Fitting
2.	U40431	[2]	Bushing
3.	AT45785	[1]	Hydraulic Cylinder Barrel	(SUB FOR AU42130) (ALSO ORDER AU10810)
4.	12H304	[1]	Lock Washer	3/8"
5.	19H1648	[1]	Cap Screw	3/8" X 3/4"
6A.	AU42219	[1]	Tube	(SUB AU10861) (USE WITH AU11603 HYDRAULIC HOSE, CROWD CYLINDER HEAD END)
6B.	AU10861	[1]	Hydraulic Hose - Fabricate	1/2" X 864 MM (34") X 1/2"
6B.	AU10810	[1]	Hydraulic Hose - Fabricate	1/2" X 775 MM (30-1/2") X 1/2"
7.	R26906	[1]	O-Ring
8.	AU11753	[1]	Union Fitting
9.	22H1077	[1]	Set Screw	1/4" X 5/16"
10.	L2235CU	[1]	Lock Nut
11.	U43261	[1]	Wear Ring	(A)
12.	U43260	[1]	Piston
13.	T38193	[1]	Packing	(A) (SUB FOR R72827)
14.	R29463	[1]	O-Ring	(A)
15.	U17219	[1]	Piston
16.	U10776	[1]	O-Ring	(A)
17.	R78993	[1]	Back-Up Ring	(A) (SUB FOR U10777, THIS APPLICATION)
18.	U14128	[1]	Snap Ring
19.	R76802	[1]	Seal	(A) (SUB FOR T36998)
20.	U41823	[1]	Wear Ring	(A)
21.	R80922	[1]	Hydr. Cylinder Rod Guide	(ALSO ORDER U41823) (SUB FOR U43259 AND R69077)
22.	U11019	[1]	Seal	(A)
23.	U40741	[1]	Bushing	(SUB FOR U40150, THIS APPLICATION)
24.	AU42132	[1]	Hydraulic Cylinder Rod
25.	JD7759	[1]	Lubrication Fitting
26.	U16163	[1]	Elbow Fitting
27.	14H863	[1]	Nut	3/4"
...	AU42129	[1]	Cylinder	(LESS RETURN TUBE) (SUB AT45784 AND AU10810)
...	AT45784	[1]	Hydraulic Cylinder
...	RE18755	[1]	Hydraulic Cylinder Kit	(SUB FOR AT36830, AR96516 AND AR105413)
