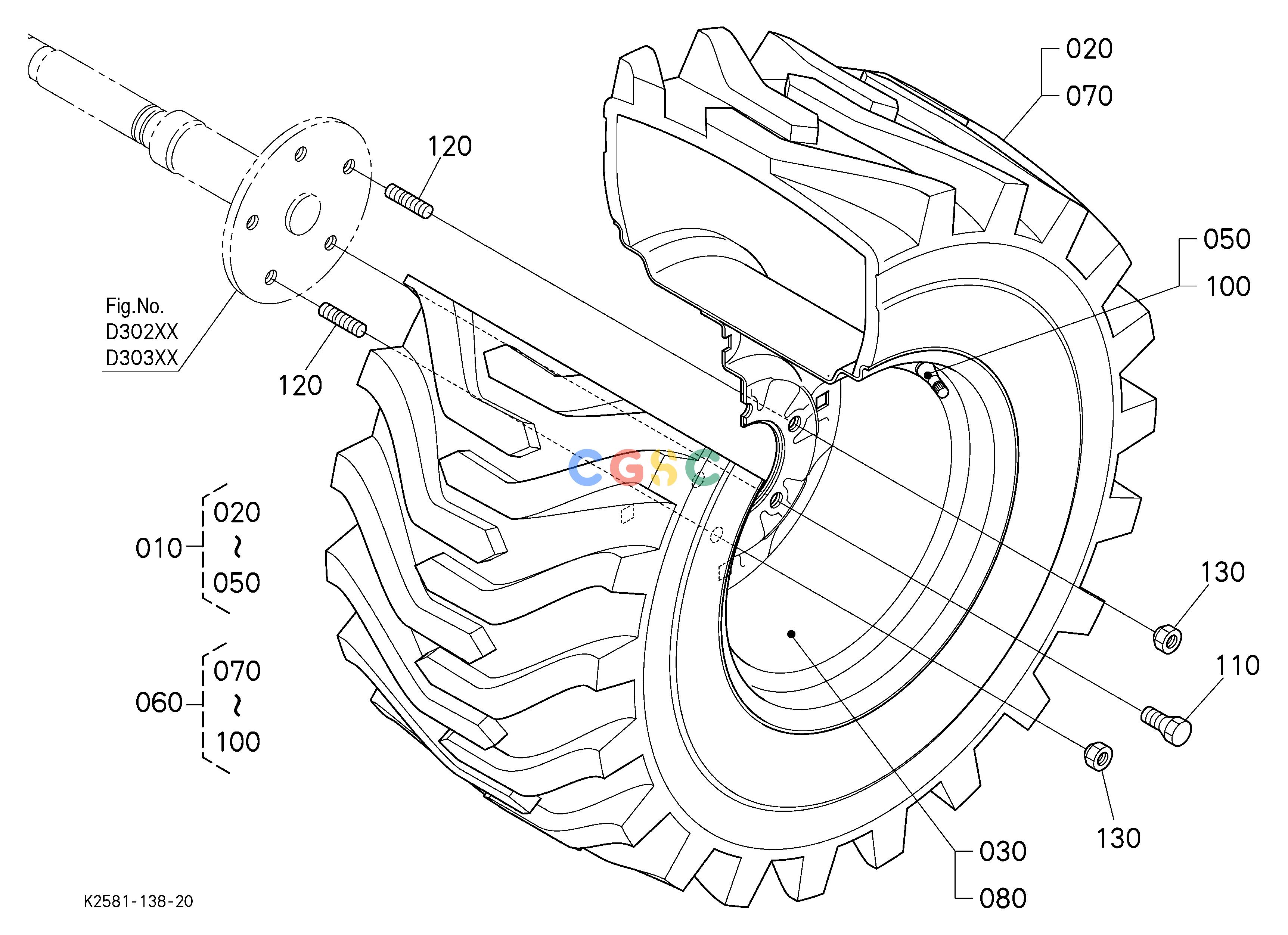

久保田零件查询R11003 REAR WHEEL (26 12.00-12) REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K277117610
|
[1] |
TIRE,ASSY(IL 26X12-12)
|
0.0000(lbs); 0.000
|
| 020. |
K258117160
|
[1] |
TIRE,IND,26X12.00-12
|
0.0000(lbs); 0.000
|
| 030. |
K256117190
|
[1] |
WHEEL,12X10-1/2,B
|
16.2800(lbs); 7.400
|
| 050. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 060. |
K277117620
|
[1] |
TIRE,ASSY(IR 26X12-12)
|
0.0000(lbs); 0.000
|
| 070. |
K258117160
|
[1] |
TIRE,IND,26X12.00-12
|
0.0000(lbs); 0.000
|
| 080. |
K256117190
|
[1] |
WHEEL,12X10-1/2,B
|
16.2800(lbs); 7.400
|
| 100. |
K256117220
|
[1] |
VALVE,TIRE
|
0.0220(lbs); 0.010
|
| 110. |
K256117213
|
[6] |
BOLT(WHEEL,1/2)
|
0.1320(lbs); 0.060
|
| 120. |
K318117214
|
[4] |
STUD(WHEEL,1/2)
|
0.0814(lbs); 0.037
|
| 130. |
K318117222
|
[4] |
NUT(TAPER,1/2 -60)
|
0.0550(lbs); 0.025
|
