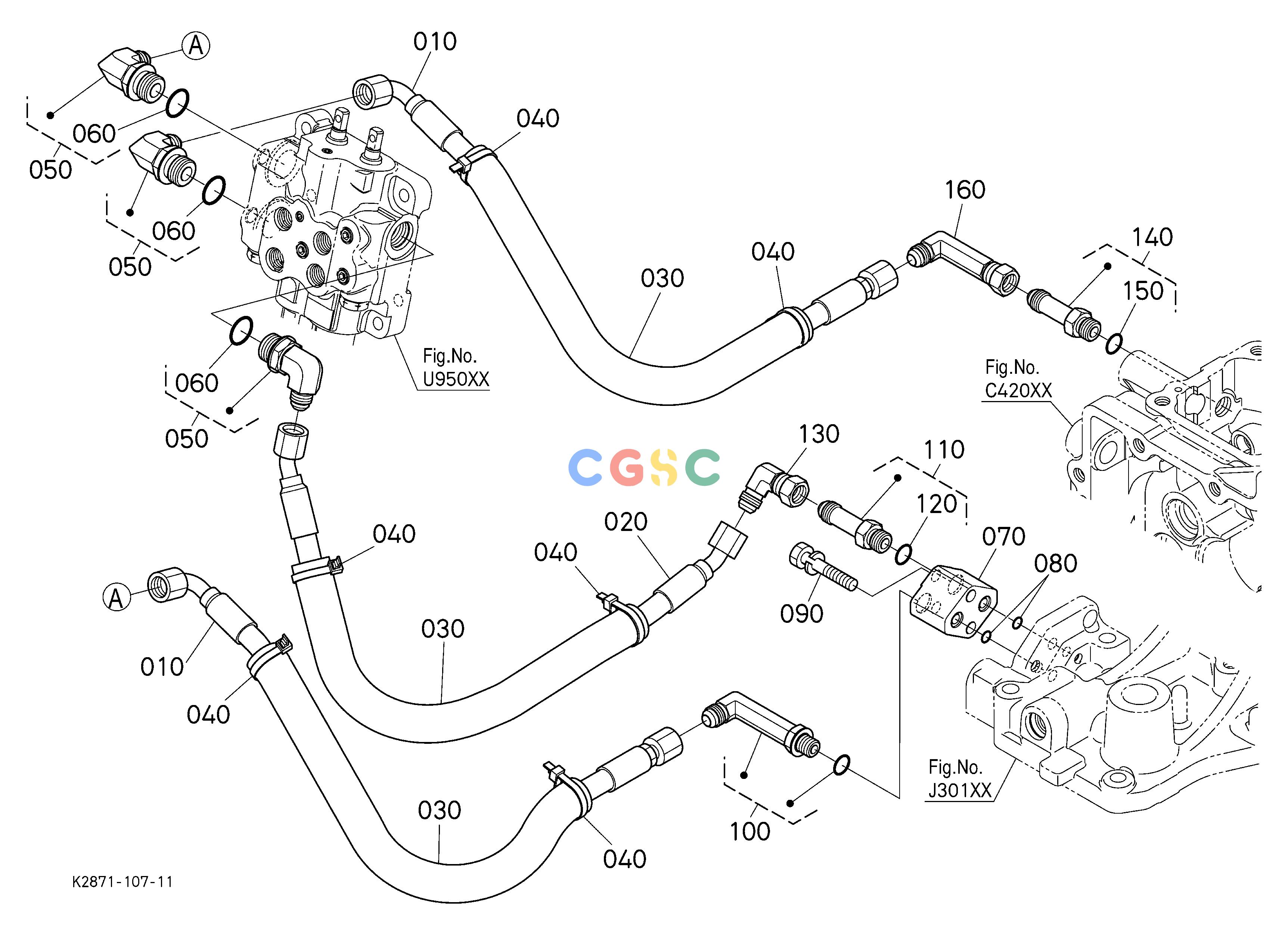

久保田零件查询U95500 FRONT CONTROL VALVE KIT (HOSE) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
812 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K287135370
|
[2] |
HOSE(PB,TANK)
|
0.0000(lbs); 0.000
|
| 010. |
K287135490
|
[2] |
HOSE(PB,TANK)
|
0.0000(lbs); 0.000
|
| 020. |
K287135470
|
[1] |
HOSE(PUMP)
|
0.0000(lbs); 0.000
|
| 020. |
K287135170
|
[1] |
HOSE(PUMP)
|
0.0000(lbs); 0.000
|
| 030. |
K381110180
|
[3] |
SLEEVE(HOSE)
|
0.0000(lbs); 0.000
|
| 030. |
K631764720
|
[3] |
SLEEVE(PROTECTION)
|
0.0418(lbs); 0.019
|
| 040. |
K112261230
|
[6] |
BAND,CORD
|
0.0022(lbs); 0.001
|
| 050. |
7554061900
|
[3] |
ASSY ELBOW,ADJUSTABLE
|
0.2420(lbs); 0.110
|
| 060. |
7554061820
|
[3] |
O-RING
|
0.0022(lbs); 0.001
|
| 070. |
7J61268110
|
[1] |
BLOCK, HYDRAULIC
|
0.5060(lbs); 0.230
|
| 080. |
0481700080
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0112350845
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 100. |
K287141580
|
[1] |
JOINT,ELBOW(90LLL,9/16-18)
|
0.0000(lbs); 0.000
|
| 110. |
7K50063903
|
[1] |
ASSY ADAPTER 3
|
0.0990(lbs); 0.045
|
| 120. |
7559564220
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 130. |
K256141590
|
[1] |
ELBOW
|
0.1298(lbs); 0.059
|
| 140. |
7K50063903
|
[1] |
ASSY ADAPTER 3
|
0.0990(lbs); 0.045
|
| 150. |
7559564220
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 160. |
K287141590
|
[1] |
JOINT,ELBOW
|
0.0000(lbs); 0.000
|
