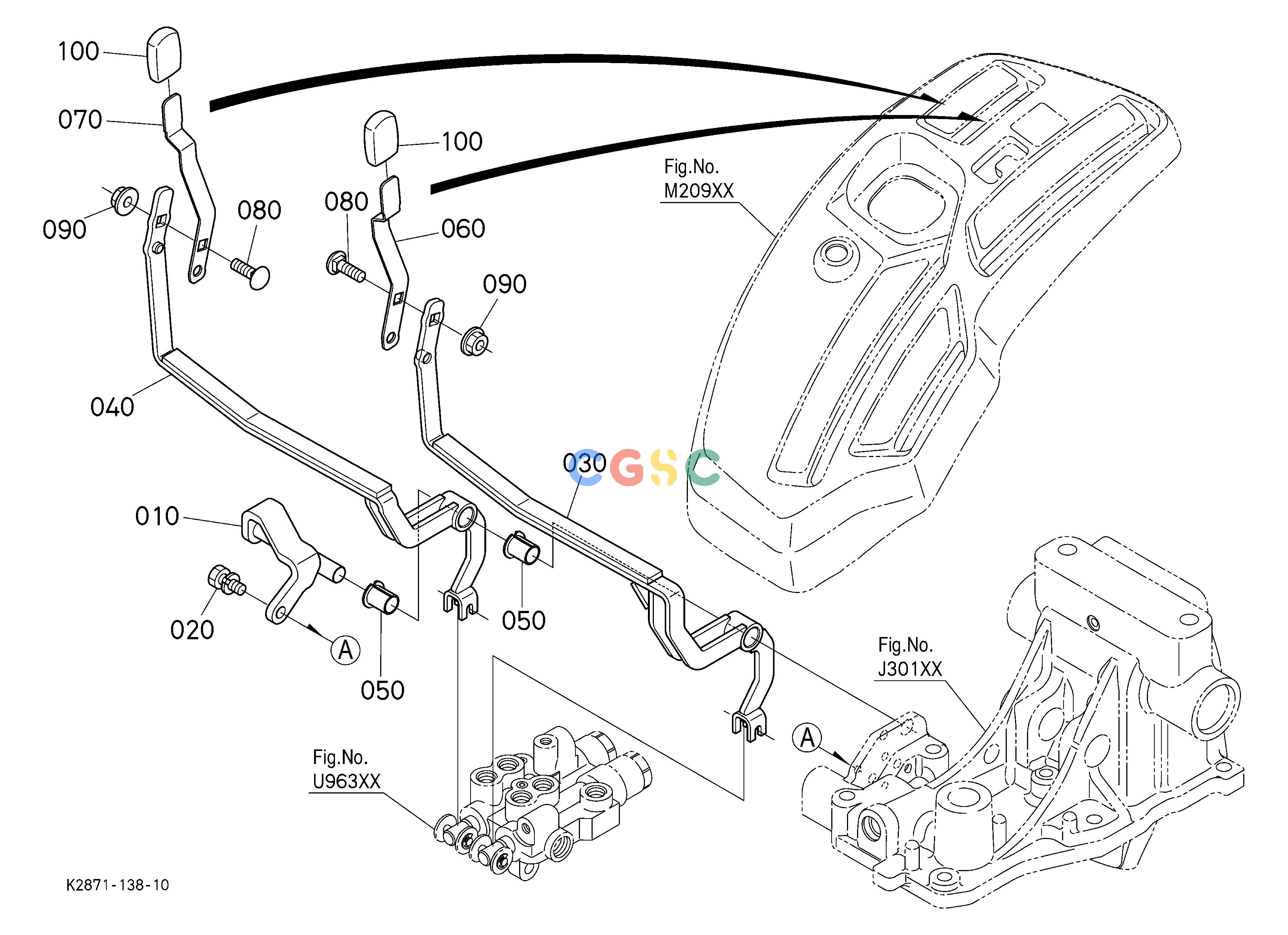

久保田零件查询U96400 REAR CONTROL VALVE KIT (LEVER) [OPTION] (W/G No. BX2419) OPTIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
565 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258337252
|
[1] |
STAY(AUX.VALVE)
|
0.0000(lbs); 0.000
|
| 020. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 030. |
K287137310
|
[1] |
LEVER(LOWER AUX. LH)
|
0.0000(lbs); 0.000
|
| 040. |
K287137320
|
[1] |
LEVER(LOWER AUX. RH)
|
0.0000(lbs); 0.000
|
| 050. |
K288356220
|
[2] |
BUSHING(FL-1/2X3/4)
|
0.0000(lbs); 0.000
|
| 060. |
K287137350
|
[1] |
LEVER(UPPER AUX.)
|
0.0000(lbs); 0.000
|
| 070. |
K287137360
|
[1] |
LEVER(UPPER,AUX. RH)
|
0.0000(lbs); 0.000
|
| 080. |
K112291320
|
[2] |
BOLT,SHORT SQU. NECK(M8 1.25)
|
0.0220(lbs); 0.010
|
| 090. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
K256337370
|
[2] |
GRIP,LEVER AUX.
|
0.0220(lbs); 0.010
|
