约翰迪尔零件查询310 - BACKHOE, LOADER CLUTCH HOUSING [01E03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 702 次

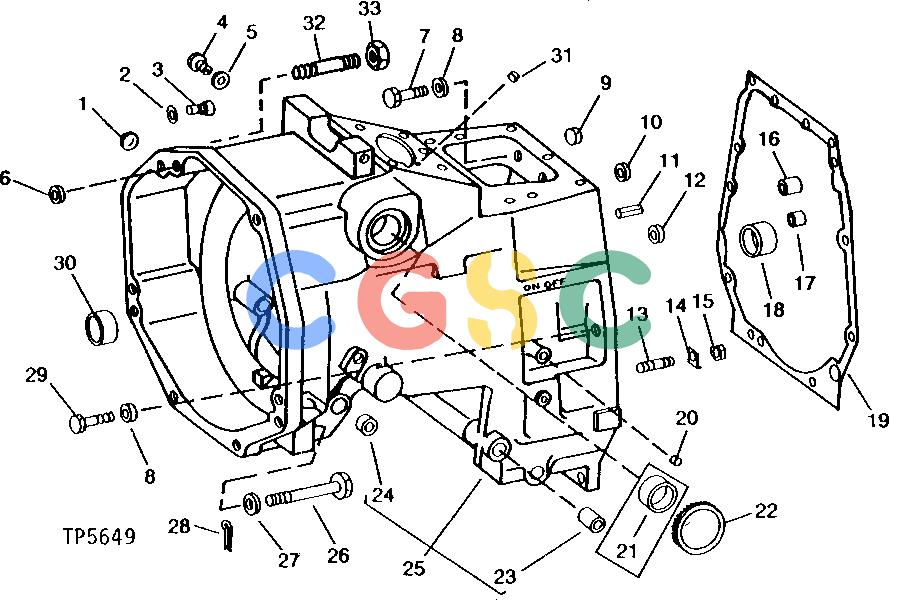

Pos.	Part No	Qty	Parts name	Comments
1.	30H13	[1]	Plug	1"
2.	T21827	[1]	Washer	(C) (WITHOUT TACHOMETER)
3.	T22898	[1]	Plug	(C) (D) (WITHOUT TACHOMETER)
4.	R39112	[1]	Fitting
5.	R26375	[1]	O-Ring
6.	R26919	[1]	Washer
7.	19H2510	[2]	Cap Screw	(C) (D) HS, SAE 8, 1/2" X 1-5/8"
8.	T20168	[3]	Washer
9.	T12083	[1]	Plug	(A) (B) (D)
10.	T22851	[1]	Washer
10.	T68412	[1]	Washer	(USE WITH AT65216 CLUTCH HOUSING)
11.	34H251	[1]	Spring Pin	(A) (B) (D) 1/8" X 1"
12.	A4847R	[1]	Washer
13.	C2175R	[4]	Stud	(A) (B) (D)
14.	R30958	[4]	Lock Plate
15.	14H812	[4]	Nut	3/8"
16.	T22584	[1]	Bushing	(A) (B) (D)
17.	T22585	[1]	Bushing	(A) (B) (D)
18.	T23212	[1]	Bushing	(A) (B) (D)
19.	T36236	[1]	Gasket
20.	M4224T	[1]	Plug
21.	T21445	[1]	Bushing	(A)
21.	L1788C	[1]	Bushing	(B)
22.	R1680R	[2]	Plug
23.	R27567	[1]	Bushing	(A) (B) (D)
24.	R27320	[1]	Bushing	(A) (B) (D)
25.	AR78334	[1]	Housing	(MARKED R63439) (INCLUDES ALL PARTS IDENTIFIED BY (A)) (ALSO INCLUDES 34H251 SPRING PIN) (SUB FOR AT23128, MARKED T25289 AND AR78334) (SUB RE16423, THIS APPLICATION)
25.	AR94537	[1]	Housing	(C) (MARKED R71697) (INCLUDES ALL PARTS IDENTIFIED BY (D) (ALSO INCLUDES 34H251, SPRING PIN) (SUB RE16423, THIS APLICATION)
25.	RE16423	[1]	Housing	(INDLUDES ALL PARTS IDENTIFIED BY (C))
25.	AT65216	[1]	Housing	(MARKED T67961) (SUB FOR AT33619, MARKED T34503) INCLUDES ALL PARTS IDETIFIED BY (B) (ALSO ORDER 14H1039, L29854 AND (2) T68412)
26.	19H3170	[4]	Cap Screw	(C) (D) HS, SAE 8, 5/8" X 4-1/2"
27.	R70268	[4]	Washer	(SUB FOR (4) R42363)
28.	19M7084	[1]	Cap Screw	M8 X 15
29.	19H2735	[1]	Cap Screw	(C) (D) HS, SAE 8, 1/2" X 2"
30.	T23211	[1]	Bushing	(A) (B) (D)
31.	M1102T	[1]	Plug
32.	L29854	[1]	Rod	(C) (D) (USE WITH AR94537)
33.	14H1039	[1]	Nut	(C) (D) 5/8", (USE WITH AR94537)
