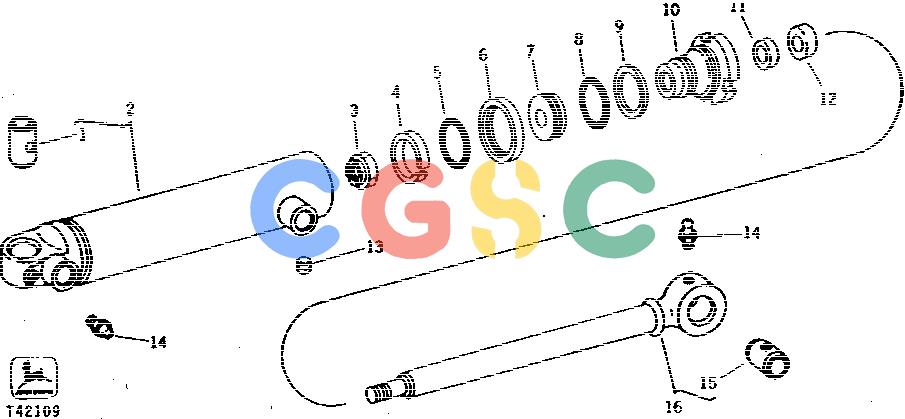

约翰迪尔零件查询310 - BACKHOE, LOADER POWER STEERING CYLINDER (SERIAL NO. 237998- ) [01F23]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
869 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T48206
|
[1] |
Bushing
|
|
| 2. |
AT46769
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
M2023T
|
[1] |
Lock Nut
|
|
| 4. |
T48209
|
[1] |
Wear Ring
|
|
| 5. |
U15973
|
[1] |
O-Ring
|
|
| 6. |
T48208
|
[1] |
Washer
|
|
| 7. |
T48207
|
[1] |
Piston
|
|
| 8. |
R31378
|
[1] |
O-Ring
|
|
| 9. |
T50240
|
[1] |
Back-Up Ring
|
|
| 10. |
R80907
|
[1] |
Guide
|
|
| 11. |
T48199
|
[1] |
Seal
|
|
| 12. |
T48200
|
[1] |
Seal
|
|
| 13. |
22H1077
|
[1] |
Set Screw
|
|
| 14. |
JD7797
|
[2] |
Lubrication Fitting
|
|
| 15. |
T48203
|
[1] |
Bushing
|
|
| 16. |
AT46768
|
[1] |
Hydraulic Cylinder Rod
|
|
| ... |
AT46766
|
[1] |
Cylinder
|
|
| ... |
RE18749
|
[1] |
Hydraulic Cylinder Kit
|
|
