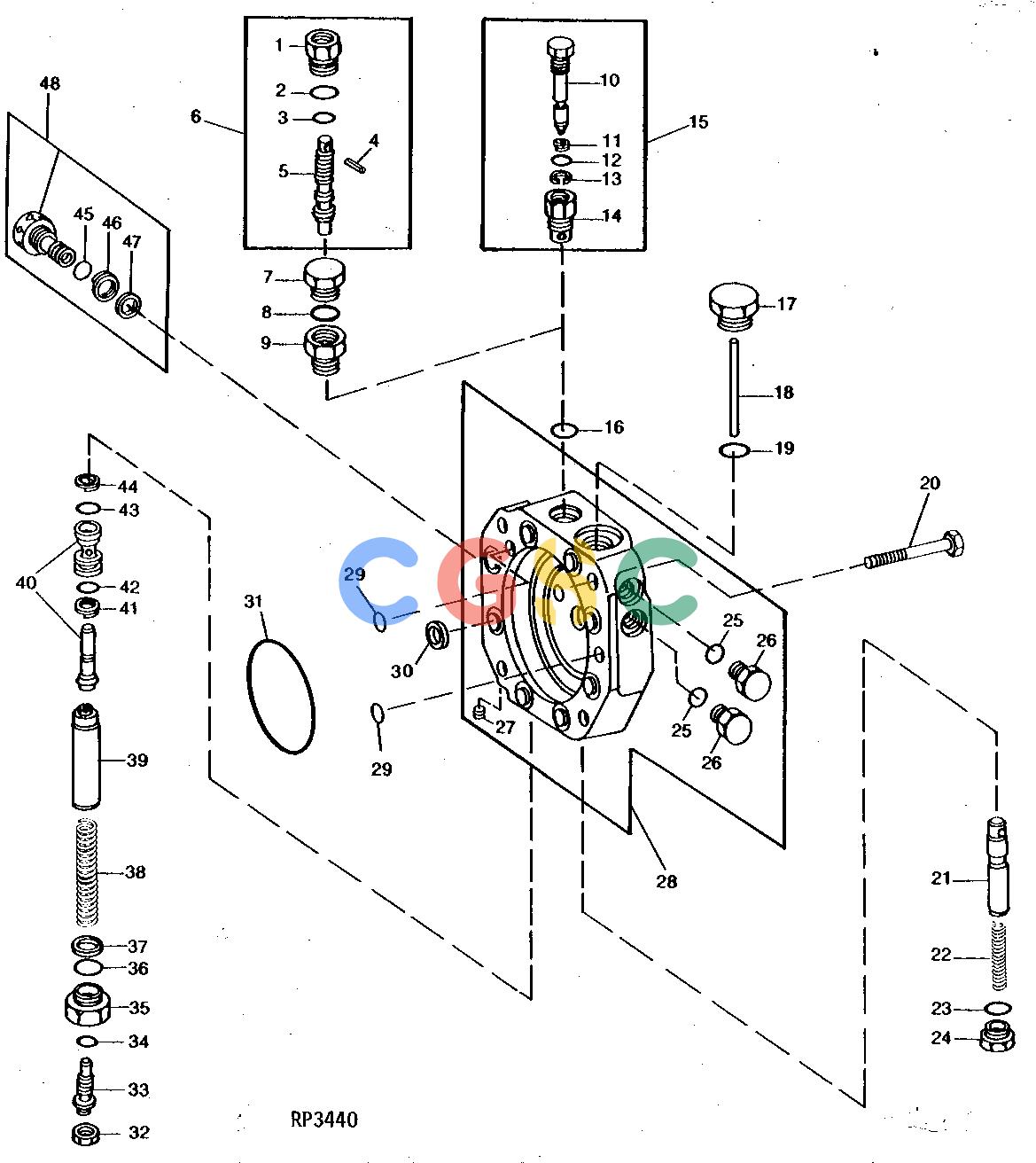

约翰迪尔零件查询310 - BACKHOE, LOADER HYDRAULIC PUMP STROKE CONTROL VALVE 50 CM3 (3 IN.3) (SERIALIZED HYDRAULIC REPLACEMENT PUMP) [01G18]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R27475
|
[1] |
Fitting
|
|
| 2. |
R26448
|
[1] |
O-Ring
|
|
| 3. |
A4365R
|
[1] |
O-Ring
|
|
| 4. |
34H254
|
[1] |
Spring Pin
|
|
| 5. |
R75879
|
[1] |
Screw
|
|
| 6. |
AR96625
|
[1] |
Field Installation Kit
|
|
| 7. |
R27218
|
[1] |
Fitting Plug
|
|
| 8. |
R26448
|
[1] |
O-Ring
|
|
| 9. |
R70617
|
[1] |
Pipe Plug
|
|
| 10. |
R79266
|
[1] |
Screw
|
|
| 11. |
R36358
|
[1] |
Back-Up Ring
|
|
| 12. |
R34802
|
[1] |
O-Ring
|
|
| 13. |
R79268
|
[1] |
Snap Ring
|
|
| 14. |
R79267
|
[1] |
Plug
|
|
| 15. |
RE13271
|
[1] |
Screw
|
|
| 16. |
R26906
|
[1] |
O-Ring
|
|
| 17. |
R75642
|
[1] |
Drain Plug
|
|
| 18. |
R75564
|
[1] |
Pin
|
|
| 19. |
R56751
|
[1] |
O-Ring
|
|
| 20. |
19H3520
|
[4] |
Cap Screw
|
|
| 21. |
R70867
|
[1] |
Valve
|
|
| 22. |
R70868
|
[1] |
Spring
|
|
| 23. |
R26375
|
[1] |
O-Ring
|
|
| 24. |
R73736
|
[1] |
Fitting Plug
|
|
| 25. |
R26448
|
[2] |
O-Ring
|
|
| 26. |
R75376
|
[2] |
Drain Plug
|
|
| 27. |
15H560
|
[1] |
Pipe Plug
|
|
| 28. |
AR101632
|
[1] |
Housing
|
|
| 29. |
R56755
|
[2] |
Washer
|
|
| 30. |
R107239
|
[8] |
Packing
|
|
| 31. |
R56757
|
[1] |
O-Ring
|
|
| 32. |
14H1021
|
[1] |
Nut
|
|
| 33. |
AR52254
|
[1] |
Set Screw
|
|
| 34. |
R28782
|
[1] |
O-Ring
|
|
| 35. |
R28781
|
[1] |
Fitting
|
|
| 36. |
U12547
|
[1] |
O-Ring
|
|
| 37. |
R42260
|
[1] |
Washer
|
|
| 38. |
R31781
|
[1] |
Spring
|
|
| 39. |
R71321
|
[1] |
Guide
|
|
| 40. |
RE10712
|
[1] |
Control Valve
|
|
| 41. |
R41057
|
[1] |
Back-Up Ring
|
|
| 42. |
R27166
|
[1] |
O-Ring
|
|
| 43. |
R27564
|
[1] |
O-Ring
|
|
| 44. |
R75938
|
[1] |
Thrust Washer
|
|
| 45. |
R26375
|
[1] |
O-Ring
|
|
| 46. |
T40308
|
[1] |
O-Ring
|
|
| 47. |
T57374
|
[1] |
Back-Up Ring
|
|
| 48. |
AR90378
|
[1] |
Plug
|
|
