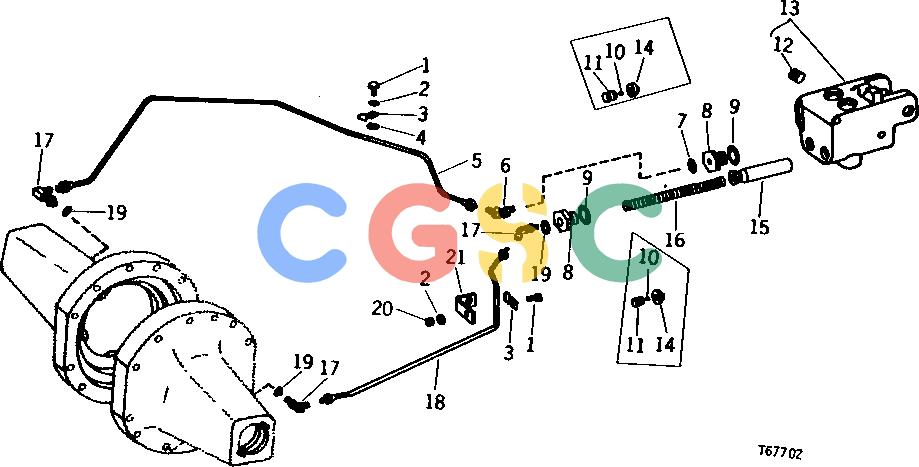

约翰迪尔零件查询310 - BACKHOE, LOADER BRAKE VALVE AND OIL LINES (SERIAL NO. 146710- ) [01H15]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 934 次

Pos.	Part No	Qty	Parts name	Comments
1.	19H1648	[3]	Cap Screw	3/8" X 3/4"
2.	12H304	[3]	Lock Washer	3/8"
3.	R27528	[3]	Clamp
4.	24H1304	[2]	Washer	13/32" X 23/32" X 0.120"
4.	24H1304	[2]	Washer	13/32" X 23/32" X 0.120"
5.	AT37333	[1]	Brake Line	(A) L.H. (SUB AT41227)
5.	........	[1]	Oil Line	(D) L.H. (SUB AT41227)
6.	AR35223	[1]	Elbow Fitting	(A) (D)
7.	R26287	[1]	O-Ring	(A) (D)
8.	T21813	[2]	Seat
9.	U12547	[2]	O-Ring	(SUB FOR (2) F3171R)
10.	400R	[2]	Ball	1/4"
11.	T21814	[2]	Compression Spring
12.	15H560	[1]	Pipe Plug	1/16"
13.	AR53493	[2]	Housing
14.	T21815	[2]	Retainer
15.	........	[2]	Piston	(B) R73933 NO LONGER AVAILABLE, (SUB FOR T22100, THIS APPLICATION) (SUB AT182633)
16.	T21817	[2]	Spring
17.	AT32335	[3]	Elbow Fitting	(SUB FOR AR26746)
18.	AT32723	[1]	Brake Line	(SUB AT41224)
18.	AT41224	[1]	Line	R.H.
19.	R26287	[3]	O-Ring
20.	14H812	[1]	Nut	3/8"
21.	T38500	[1]	Angle
...	AT39633	[1]	Kit	LINE BRAKE OIL, L.H. (SUB AT41227)
...	AT41227	[1]	Kit	LINE BRAKE OIL, L.H.
