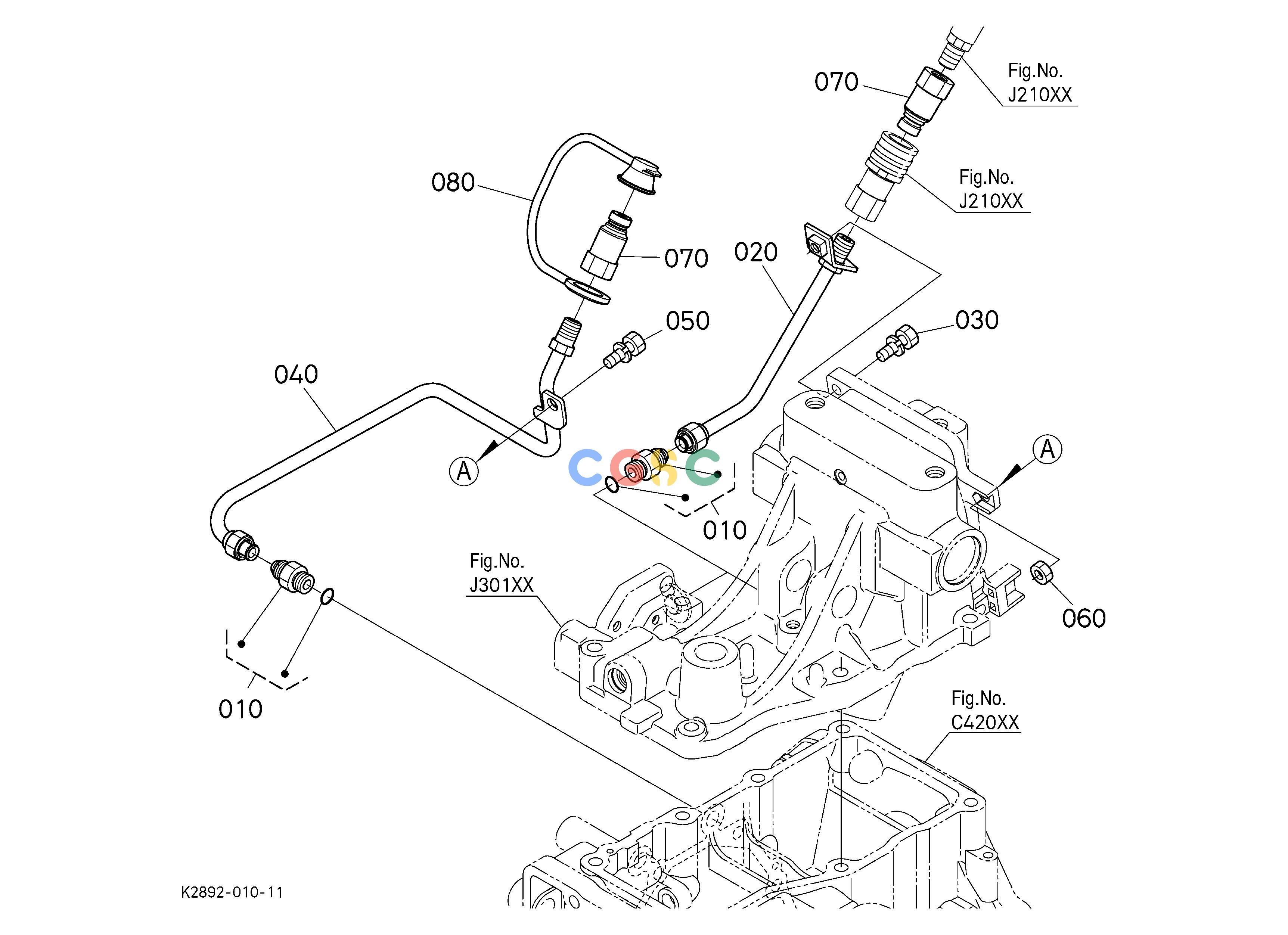

久保田零件查询J21200 HYDRAULIC PIPE (RETURN) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256136620
|
[2] |
CONNECTOR,9/16-18
|
0.0770(lbs); 0.035
|
| 020. |
K259237520
|
[1] |
PIPE,RETURN 1 BH
|
0.2640(lbs); 0.120
|
| 030. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 040. |
K259237550
|
[1] |
PIPE,RETURN
|
0.3740(lbs); 0.170
|
| 050. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 060. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
7J62666220
|
[2] |
COUPLER(FEM-252-4FP M)
|
0.0000(lbs); 0.000
|
| 080. |
7J62666230
|
[1] |
CAP(DUST,CFE-252-PN)
|
0.0000(lbs); 0.000
|
