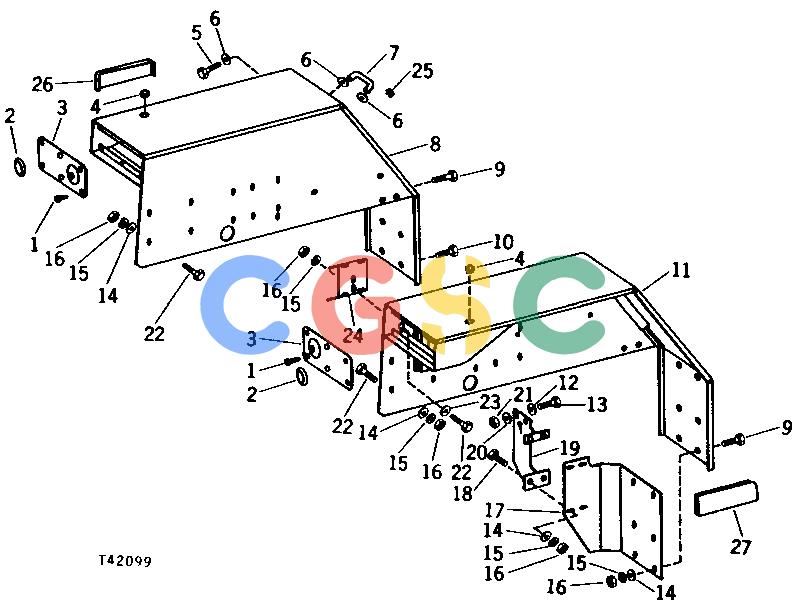

Pos.	Part No	Qty	Parts name	Comments
1.	37H51	[12]	Screw	1/4" X 1/2"
2.	T33745	[2]	Reflector
3.	T33854	[2]	Plate
4.	H84660	[2]	Plug	(WITH CANOPY) (SUB FOR P48093)
5.	19H1648	[2]	Cap Screw	3/8" X 3/4"
6.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065"
7.	R31618	[1]	Handle	(WITHOUT CAB)
8.	AT44776	[1]	Fender	LEFT, (SUB FOR AT32967)
9.	19H2676	[8]	Cap Screw	3/8" X 1"
10.	19H3239	[4]	Cap Screw	3/8" X 1-1/4"
11.	AT44775	[1]	Fender	RIGHT, (SUB FOR AT32966)
12.	24H1625	[4]	Washer	17/32" X 1" X 0.120"
13.	19H2473	[4]	Cap Screw	1/2" X 1-3/4"
13.	19H2993	[4]	Cap Screw	1/2" X 1-1/2"
14.	24H1308	[32]	Washer	13/32" X 1" X 0.134"
15.	12H304	[34]	Lock Washer	3/8"
16.	14H812	[34]	Nut	3/8"
17.	T33859	[1]	Support	R.H.
17.	T33860	[1]	Support	L.H. (NOT ILLUSTRATED)
18.	19H988	[8]	Cap Screw	3/8" X 1-1/4"
19.	AT32968	[2]	Brace
20.	12H301	[4]	Lock Washer	1/2"
21.	14H1040	[4]	Nut	1/2", (SUB FOR 14H809)
22.	19H2676	[14]	Cap Screw	3/8" X 1", (CUSHION MOUNT)
22.	19H2284	[12]	Cap Screw	3/8" X 7/8", (RIGID MOUNT)
22.	19H3239	[12]	Cap Screw	3/8" X 1-1/4"
23.	24H1652	[2]	Washer	13/32" X 11/16" X 7/64"
24.	T122182	[1]	Bracket	(SUB FOR U41503)
25.	R42451	[4]	Plug	(WITH CAB)
26.	T51218	[1]	Isolator	LEFT
27.	T51219	[1]	Isolator	RIGHT
