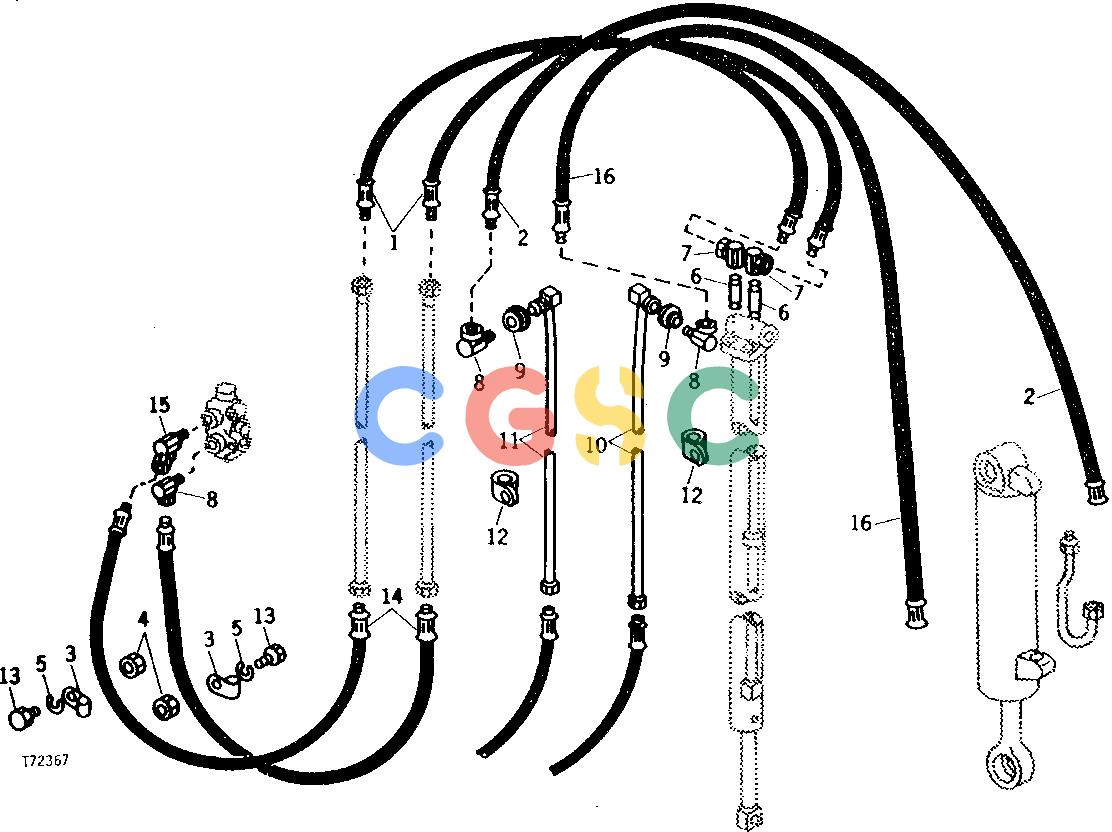

约翰迪尔零件查询310 - BACKHOE, LOADER EXTENDIBLE DIPPERSTICK HYDRAULICS [02G12]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310 - BACKHOE, LOADER EXTENDIBLE DIPPERSTICK HYDRAULICS [02G12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 205 次

Pos.	Part No	Qty	Parts name	Comments
1.	AU10810	[2]	Hydraulic Hose - Fabricate	775 MM (1/2" X 30-1/2") LONG
2.	AT50188	[1]	Hydraulic Hose - Fabricate	2 286 MM (1/2" X 90") LONG
3.	T26955	[2]	Clamp	(SUB FOR T51856)
4.	14H812	[2]	Nut	3/8"
5.	12H304	[2]	Lock Washer	3/8"
6.	T55468	[2]	Threaded Nipple
7.	U12987	[2]	Adapter Fitting	(SUB FOR T51842)
8.	JD172	[3]	Tee Fitting
9.	14H873	[2]	Nut	1-1/4"
10.	AU12425	[1]	Tube	L.H.
11.	AU12424	[1]	Oil Line	R.H.
12.	R46414	[2]	Clamp	(SUB FOR T51884) (SUB FOR AH78125, THIS APPLICATION)
13.	19H2676	[2]	Cap Screw	3/8" X 1"
14.	AU40250	[2]	Hydraulic Hose - Fabricate	1 727 MM (1/2" X 5/8" X 68") LONG
15.	JD184	[1]	Elbow Fitting
16.	AT50188	[1]	Hydraulic Hose - Fabricate	2 286 MM (1/2" X 90") LONG (USE WITH AT32774 CYLINDER)
16.	AT63294	[1]	Hydraulic Hose - Fabricate	2 794 MM (1/2" X 110") LONG (USE WITH AR90635 CYLINDER)
17.	28H860	[1]	Washer	3/8" X .375
18.	U46753	[1]	Hose Clamp
19.	19H1648	[1]	Cap Screw	3/8" X 3/4"
